Tuttnauer 3840 ELVG-D - Program 11: Bio Hazard Liquids (BH Models)

Page 39
To remove such water, press Start and repeat the cycle. If the
problem persists, call for service.
 (PV, pre-vacuum models only)
Drying: vacuum is built up and
the air pump is working.

Ending: The system checks that End temperature and End
pressure have been reached, and then releases the door.

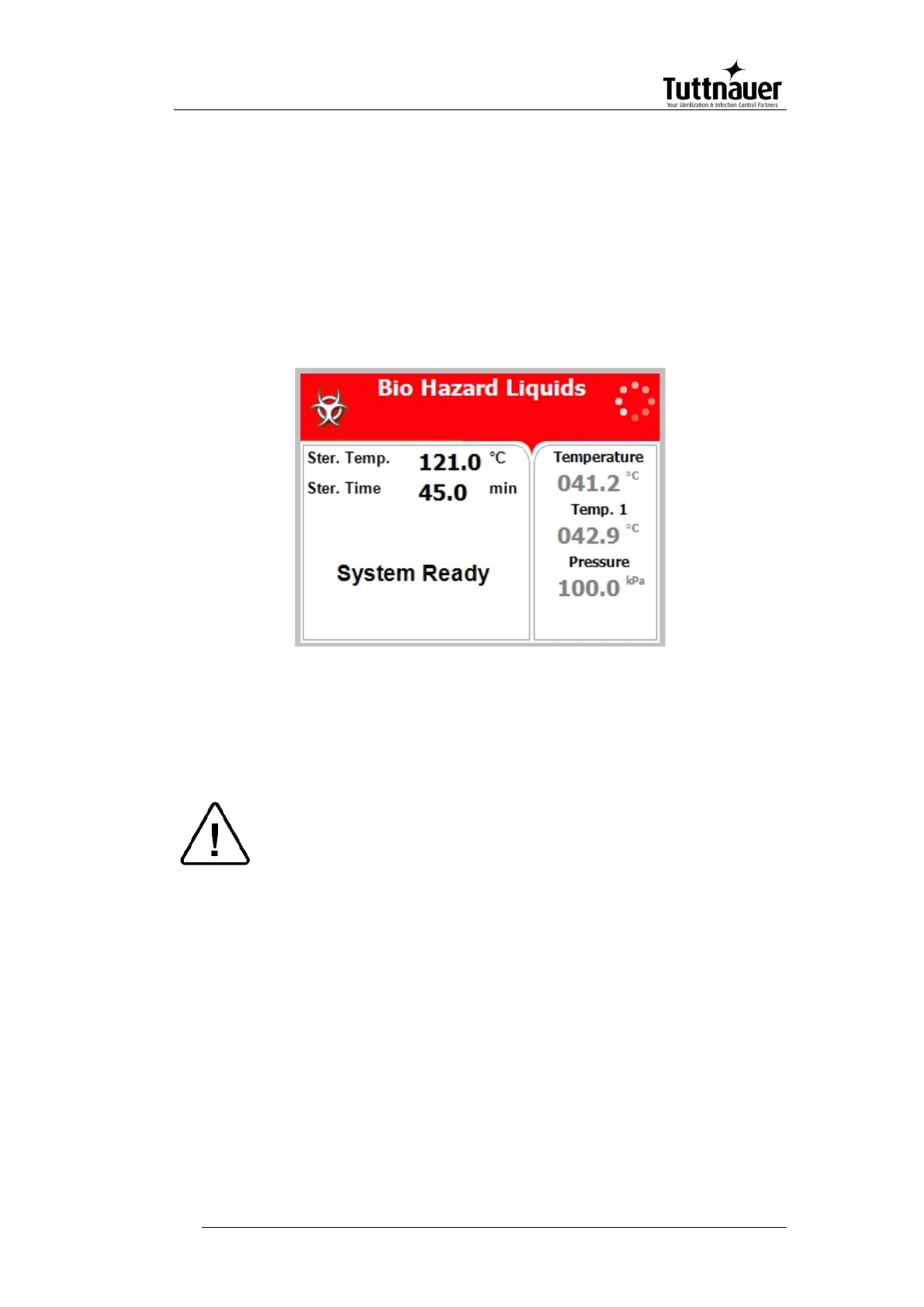

5.11 Program 11: Bio Hazard Liquids (BH, bio-hazard
models only)
All exhaust from the chamber before completion of the
Sterilization stage is performed through the bio-hazard filter.
For liquids when the manufacturer recommends autoclaving at
temperatures of 121ºC (250F) for 45 minutes.
Cautions!
Both PT100 temperature sensors must be inside the bottles.
For proper sterilization, fill the bottles with approximately the
same amount of liquid.
Nominal parameters default settings

Sterilization temperature: 121C (250F)

Sterilization time: 45 minutes
Operations sequence:
 (PV, pre-vacuum models only)
Pulse low/Pulse high: at one
pulse it will build vacuum down to 25 kPa. All exhaust from the
chamber is performed through the bio-hazard filter.

Heating: Steam enters the chamber and heats it up until the
sterilization temperature is reached.
