Tuttnauer 3840 - Front View Components (Models EL;ELPV3840, EL;ELPV3850)

Page 20 of 110 Pages

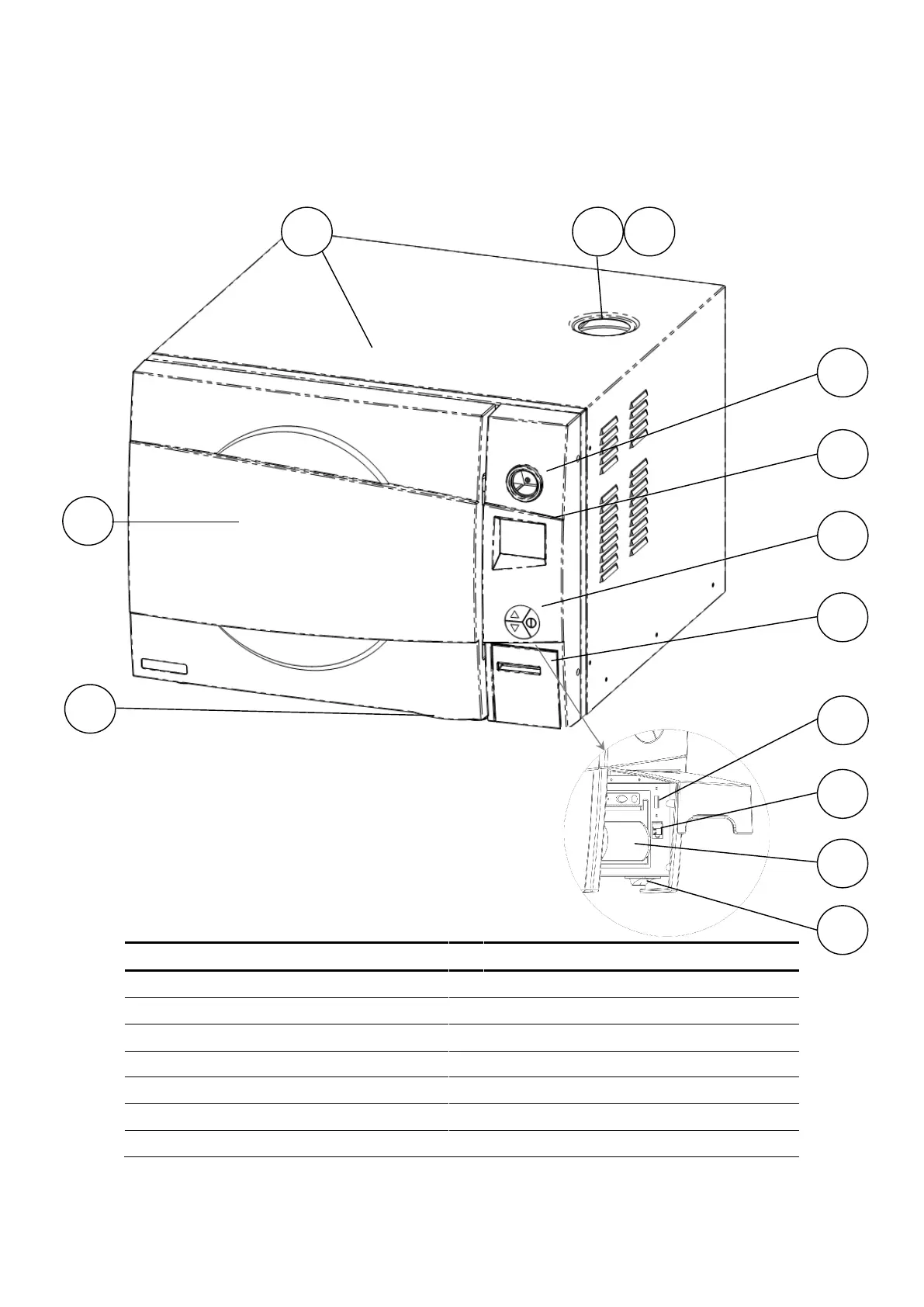

FRONT VIEW, Models EL/ELPV3840, EL/ELPV3850
No.
Description
No.
Description
1
Door opening grip
8
Operating key board
2
Door cover
9
Printer cover
3
Autoclave cover
10
USB connection
4
Mineral-free water reservoir cover
11
RJ 45 connection
5
Safety valve
12
Printer (option)
6
Autoclave's pressure gauge
13
Autoclave power switch
7
Display
3
2
1
4
5
8
6
7
13
11
12
10
9
