KNOW YOUR TVS APACHE RTR 200 4V
Front seat (rider seat)
To install the front seat, reverse the removal
procedure.
To remove the front seat (3), remove the rear seat
(passenger seat) and take out the key from the lock.
Take out the utility box by gently dislocating it from
seat release cable (A).
Pull the seat release cable (A) to release seat lock.
Keeping the seat release cable pulled, lift the seat
from rear end & slide it backward to remove.
1
2
3
A
Make sure that the seat is locked securely in position.
Caution
Utility box is located under the passenger seat to store
some important items and it provides security to
things placed inside.
SEAT
The seat lock is located between the rider and the
passenger seat assembly.
Rear seat (passenger seat)

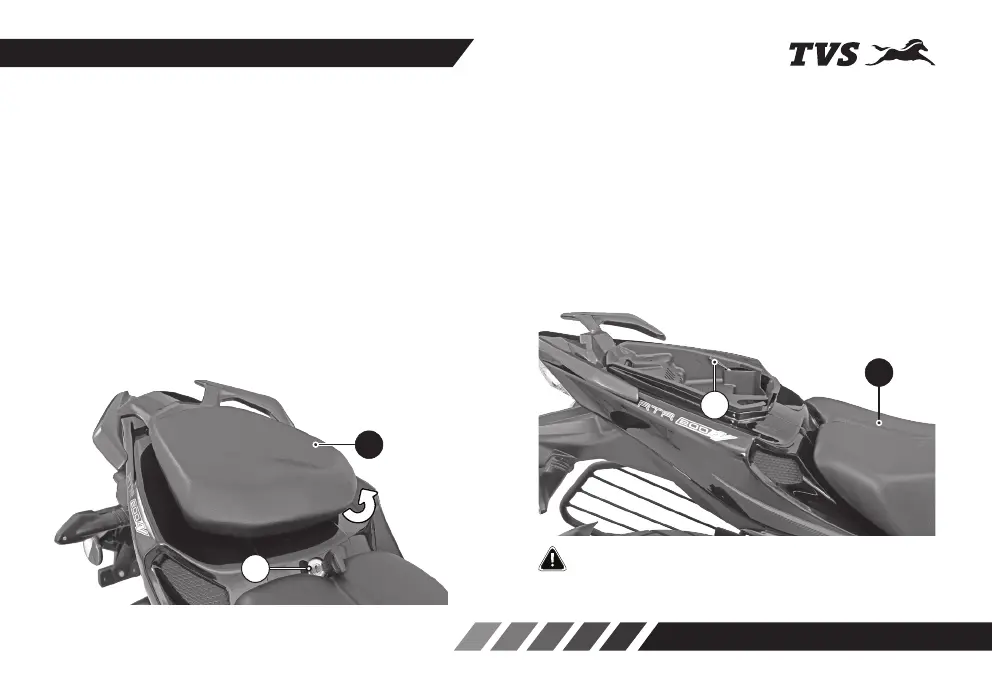

To remove the rear seat (1), insert the ignition key into
the seat lock (2). Turn it clockwise, pull & release the
front section of the seat first, followed by the rear
section as shown in the above figure. To install the
rear seat, reverse the removal procedure.
