REAR WHEEL REMOVAL AND REASSEMBLY

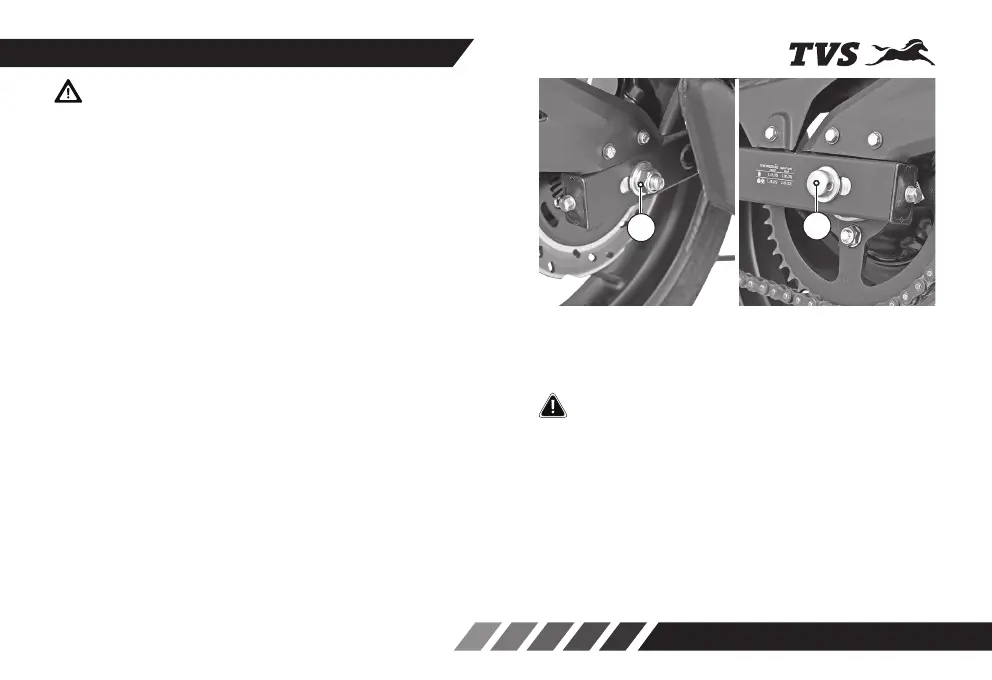

2. Remove the axle nut (1) and along with the
washer and partially pull out the axle (2).
3. Take out the caliper assembly by dislocating it
from the disc and the swing arm lug.
6. During re-assembly, engage the drum sprocket
with the wheel along with the drive chain and then
assemble the wheel into swing arm.
1. Remove the wheel hugger rear.
4. Carefully hang the caliper assembly in the swing
arm itself. Take out the spacer and pull out the axle
fully.
5. Remove the wheel assembly by gently tapping it
along with the disc.
7. Re-assemble the other parts in the reverse order
of removal.
MAINTENANCE
While assembling the caliper assembly ensure that
the slot provided in the caliper is properly located to
the lug provided in the swing arm assembly.
Always make sure that whenever the wheel is
removed, axle nut is properly re-tightened to the
specified torque and chain play is re checked and
adjusted if required.
Caution
Ensure proper seating of disc in the caliper assembly
while reassembling the wheel.
Ensure to re-fix the right spacers at both the sides of
the wheel.
Keep the toner ring upwards whenever the wheel is
removed in order to avoid damages to the toner ring.
Damaged toner ring affects ABS function.
