2. Loosen the lock nut (2) while holding the clutch
cable adjuster nut (1).
3. Adjust the clutch cable adjusting nut (1) ‘in’ or ‘out’
to give sufficient play in the clutch lever.
4. After adjusting the play, hold the adjuster nut in
the same position, tighten the lock nut.

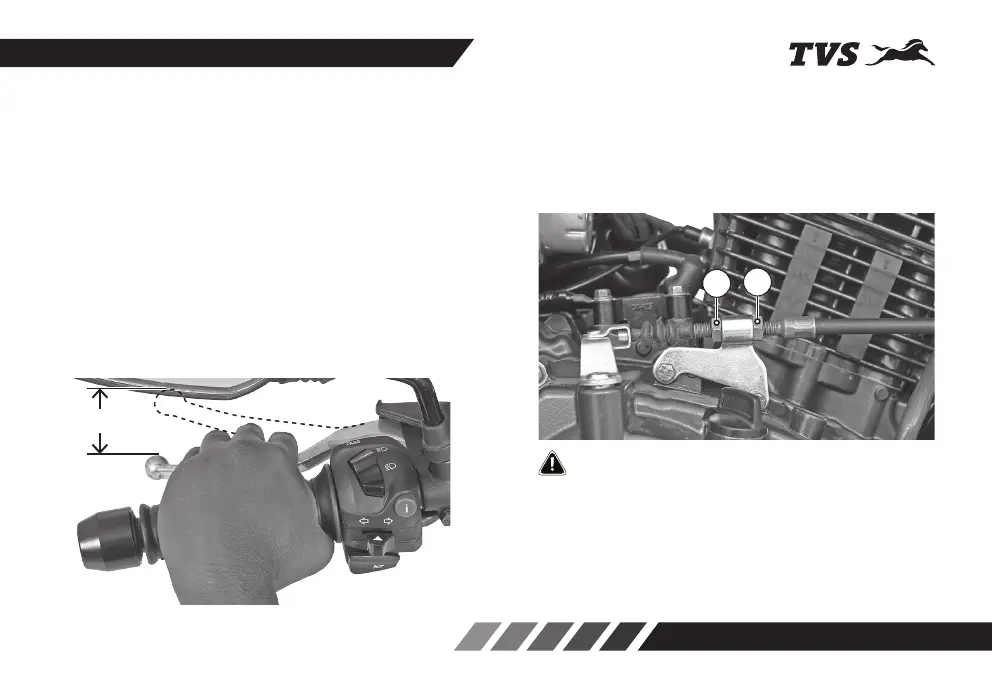

CLUTCH ADJUSTMENT
Adjust the clutch lever free play periodically by means
of clutch cable adjuster at arm clutch release. If the
free play is not within the specified limit.
Clutch lever free play is one of the most important
adjustment which you may need to check in-between
services for better life of the clutch plates.
The free play of the clutch lever should be 8 ~ 15 mm
as measured at the clutch lever end at handle bar.
1. Ensure that the engine is cold (engine oil at room
temperature).
Too much or too less clutch lever free play will
damage the clutch plates, thereby affecting the
performance of the vehicle.
Adjust the clutch lever free play only when the
engine is cold.
MAINTENANCE
Caution
8 ~ 15 mm
1
2
69
