BRAKES
Also you can observe a high pressure hose
connecting the master cylinder to the HECU of ABS
system and another high pressure hose connecting
HECU to the caliper assembly.
1. Check the master cylinder brake fluid level
through the view piece glass (A).
Front brake

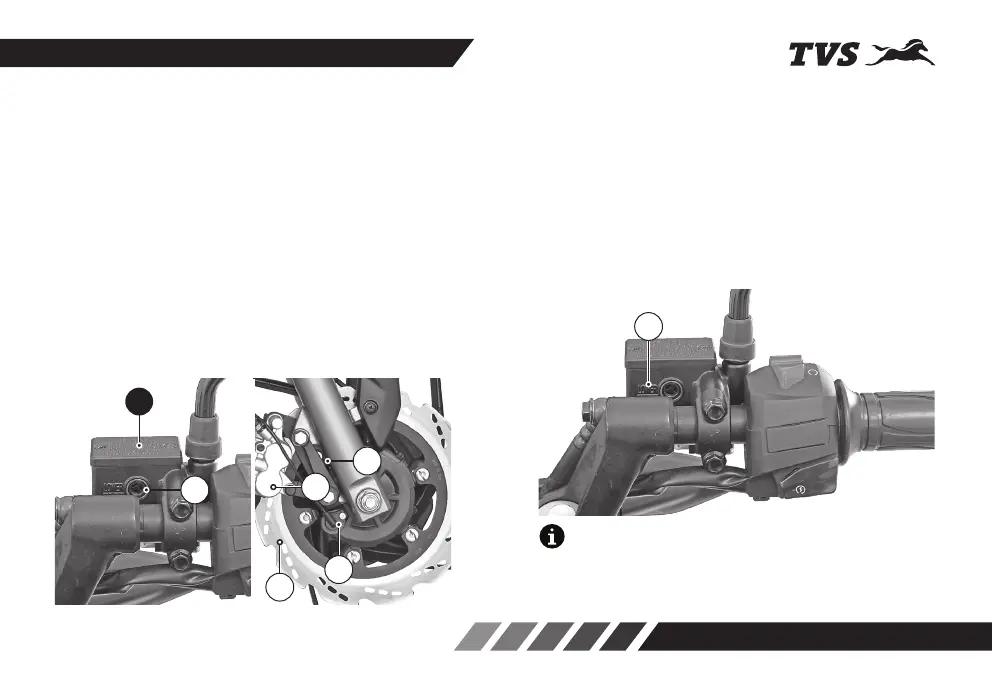

You can observe a master cylinder (1) on the right side
of the handle bar, a caliper assembly (2) fitted on the
fork leg R along with a wheel speed sensor (3), a disc
(4) and a toner ring along with a cover (5) fitted on the
front wheel.
3. If the brake fluid level is below the mark or while
applying brake if you feel the brake is more spongy
or ineffective due to air entry, contact TVS Motor
Company Authorised Distributor or Dealer /
Authorised Service Center for topping-up the
brake fluid, air bleeding and other brake related
inspections.
2. Brake fluid level always should be above the
‘LOWER’ mark (B) on the master cylinder when
the master cylinder is parallel to the ground.
MAINTENANCE
Note
Check the brake fluid level only when the master
cylinder is parallel to the ground.
A
1
2
5
3
4
B
71
