5. Replace the blown fuse with a new (extra fuse is
provided inside the fuse case itself).
7. Turn ‘ON’ the ignition lock and check for proper
functioning of the electrical systems. lncase the
fuse fails again, consult the nearest TVS Motor
Company Authorised Distributor or Dealer /
Authorised Service Center.
4. Open the fuse case and pull out the blown fuse.
6. Close and refit the fuse case back to its position.
Do not use vehicle by shorting the wires without a
fuse. This may result in overheating of electrical /
wiring and may result in fire. Never replace a fuse with
a rating other than that prescribed, in order to avoid
damage to the electrical equipment.
Non-working of electrical systems may be due to
safety fuse failure. Short circuit or overload in the
electrical system are the main causes for fuse failure.

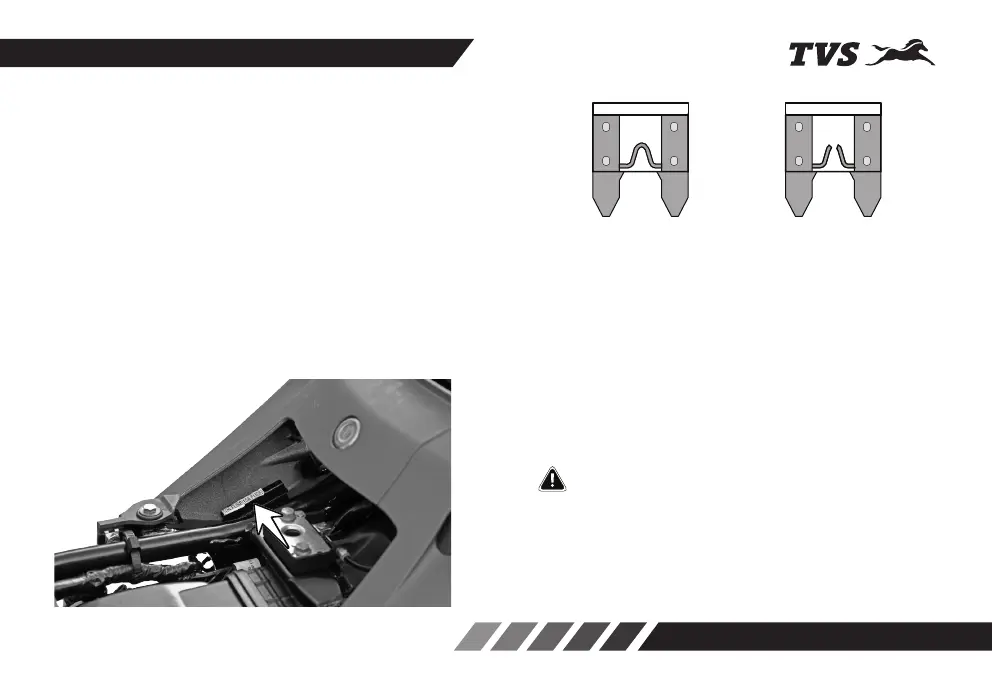

FUSE REPLACEMENT
Follow the procedure given below for inspecting and
replacing the fuse.
1. Turn ‘OFF’ the Ignition.
To access the fuses located below the rider seat.
2. Remove the seat as explained in page no. 51 to
access the fuse case and remove the fuse case.
3. The fuse case contains one 10A and two 15A
fuses. One 15A fuse is used for single channel
ABS system.
Good Fuse Blown Fuse
MAINTENANCE
Caution
66
