3. If the brake fluid level is below minimum or while
applying brake if you feel the brake is more spongy
or ineffective due to air entry, contact TVS Motor
Company Authorised Distributor or Dealer /
Authorised Service Center for topping-up the
brake fluid, air bleeding and other brake related
inspections.

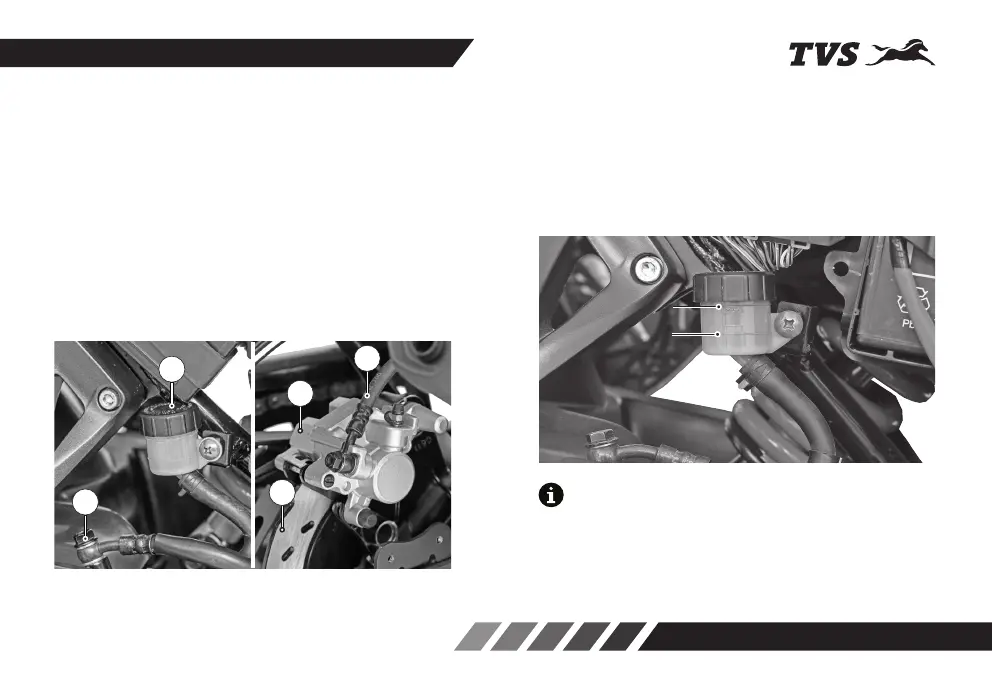

You can observe a master cylinder (1) mounted on the
right side rider foot rest, a reservoir (2) below the
cover frame R, a caliper assembly (3) fitted on the rear
wheel axle, a disc (4) to the rear wheel and a high
pressure hose (5) connecting the master cylinder and
the caliper assembly.
2. Check the brake fluid level in the reservoir. It
should be between maximum and minimum level.
1. Remove the cover frame R (refer page no. 53 for
removal procedure).
Rear brake
MAINTENANCE
Check the brake fluid level only when the master
cylinder is parallel to the ground.
Note
1
2
4
3
5
MaximumMaximum
MinimumMinimum
