COVER FRAME R
Removal
Cover frame R is provided to access the battery and
rear disc brake master cylinder. This cover can be
opened in the following manner:

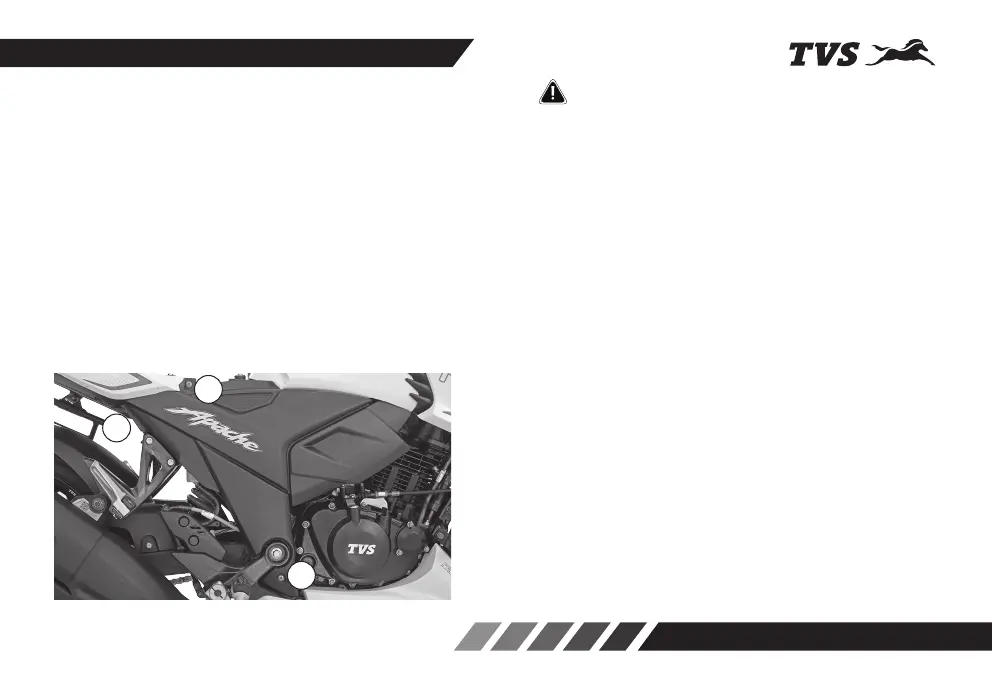

Locate the lugs of the cover frame at the holes
provided on the frame and install the mounting
screws (1), (2) and (3).
Re-install
1. Remove the seats as explained in Page no. 51.
2. Remove the mounting screws (1), (2), (3) and take
out the cover frame.
53
KNOW YOUR TVS APACHE RTR 200 4V
Caution
Make sure that the cover frame is locked securely in
position after installation.
2
3
1
