TYM T303HST User Manual

1.1 Disassembly.

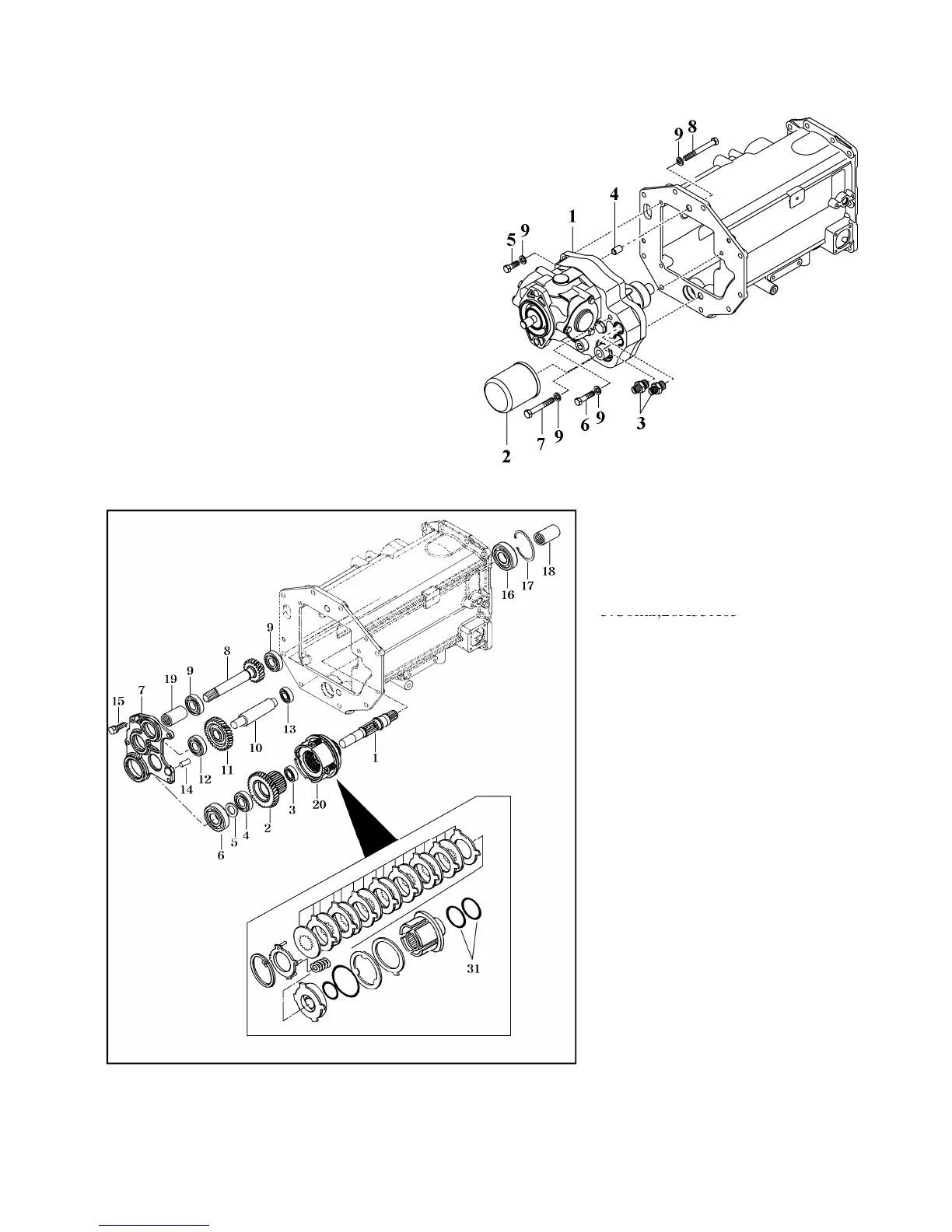

(1) Removal of HST system and related parts.
Separate the engine from the front
transmission referring to the paragraph of
SECTION 7. REPAIR in CHAPTER 4.
1.Shaft PTO Clutch
2.Gear,helical 35T
3.Bearing,Ball
4.Bearing,Ball
5.Collar,26X35X03
1.HST Unit
2.Hydraulic filter
3.Valve
4.Pin,hollow
5.6.7.8.9 Bolt, hex
Fig.5-3
5.Collar,26X35X03
6.Bearing,Ball
7.Metal,Bearing
8.Gear,Helical 21T
9.Bearing,Ball
10.Shaft,PTO drive counter
11.Gear,helical 32T
12.Bearing,Ball
13.Bearing,Ball
14.pin
15.Bolt
16.Coupling 50
17.Bearing,Ball
18.C-ring 36X62
19.Coupling,36X62
20.Clutch, PTO Clutch
31.Seal set,B
5-4
Fig.5-4
