TYM T303HST User Manual

2. MID TRANSMISSION
1) PTO INPUT GEAR SUB ASS’Y
(1) Pay attention to the direction of installation and check to see all the parts turns smoothly.
(2) When pushing the RBB’s (6205)in to the gear,be careful only to push their inner races.
(3) When installing the PTO Clutch assembly,Apply a thin coat of grease to the seal rings and install it
taking care not to damage these rings.
(4) When installing seal rings,Apply fresh oil ahead of time and install them carefully so as not to
damage them.
2) PTO counter shaft comp

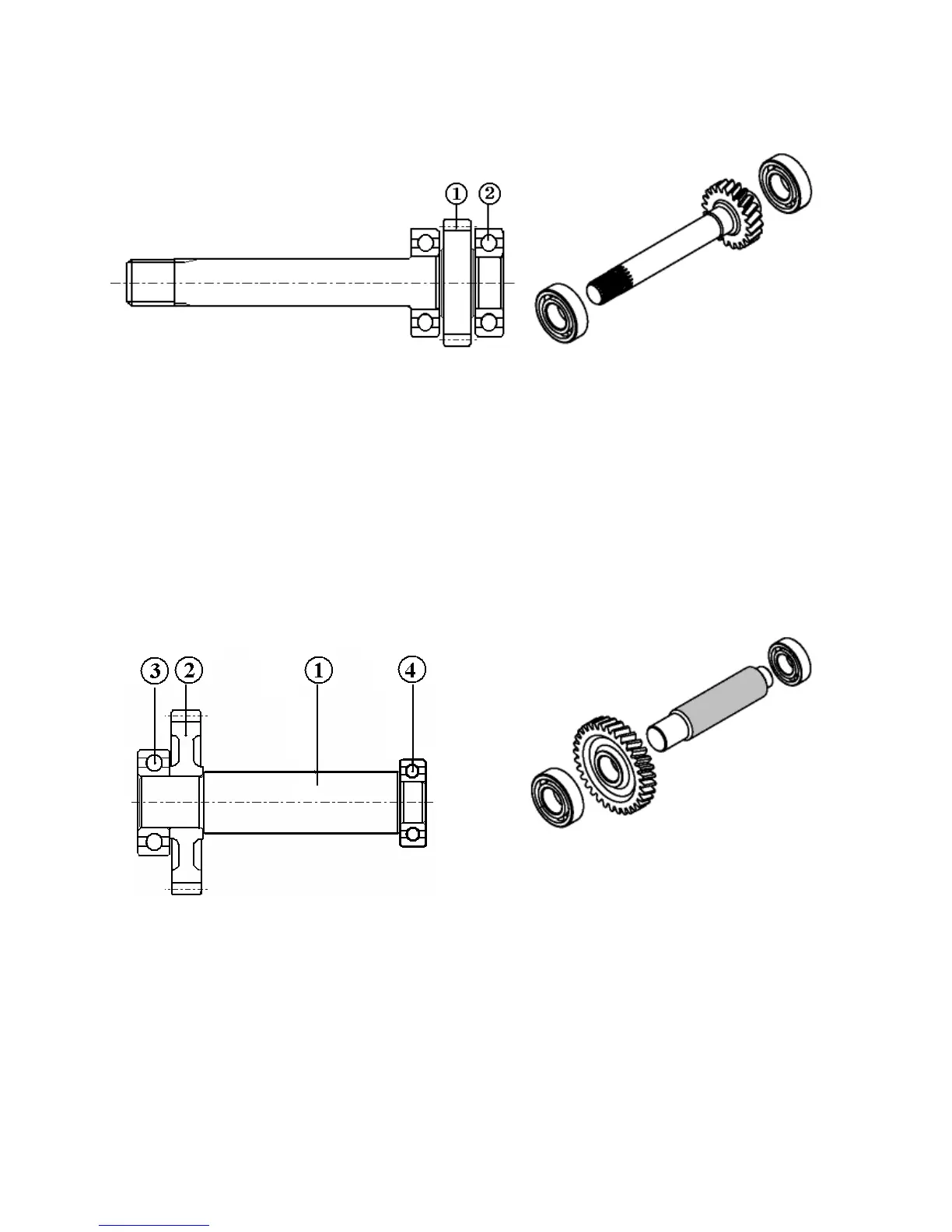

Fig.5-6
1.Gear helical 21T
2.Bearing,Ball
(1) When pushing the RBB’s (6205)in to the gear,be careful only to push their inner races.
(2) Pay attention to the direction of installation and check to see all the parts turns smoothly.
5-6
Fig.5-7
1.Shaft PTO counter
2.Gear,Helical 32T
3.Bearing Ball
4.Bearing,Ball
