TYM T303HST User Manual

-Brake case
1) When installing the brake disc,Disc plate and
separator should be arranged in correct order.

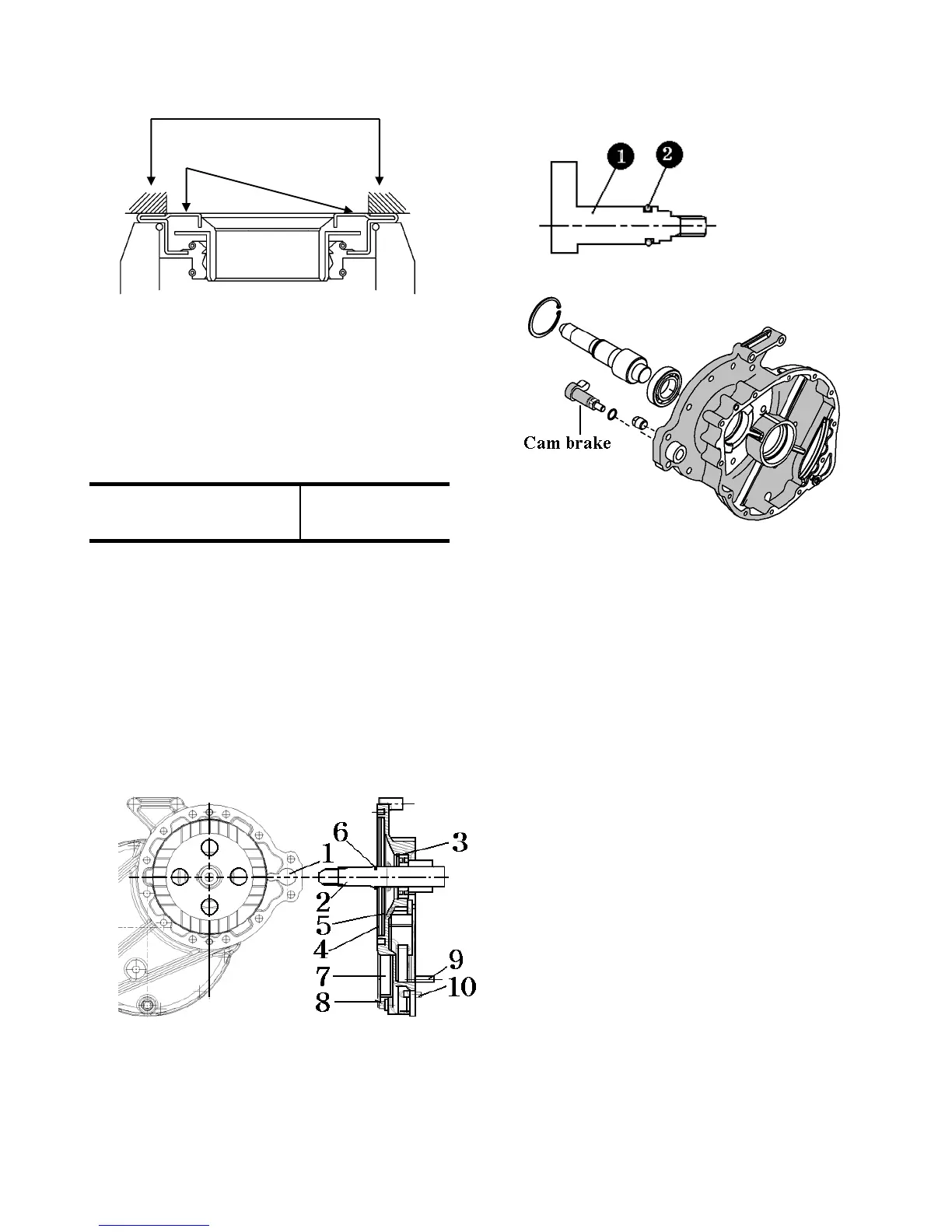

Fig.7-11
Apply force only to the shaded parts
Take care not to deform these portions
5) press the wheel shaft.
6) Install the wheel gear and bearing on the
wheel shaft and retain them.
7) Apply adhesive (THREE BOND 1215) to the
contact surfaces of the brake metal and housing
and then retain the plates by tightening the nuts
to the specified torque.
Tightening torque 0.6-0.8 Kgf.m
(4.3-5.8ft-lbs)
-Cam brake
1.Cam brake
2. O-ring
separator should be arranged in correct order.
2) Apply an grease to the O-ring and take care not to
be damaged when installing to the brake cam.
3) pay particular attention to the installation of the
snap ring
4) The assembled wheel pinion should rotate smoothly.
7-6
Fig.7-12
