4.SEPARATION OF THE FRONT TRANSMISSION AND SPACER TRANSMISSION
1) Removal
A:Removal of the whole floor.
1) Remove the side covers(LH and RH).
2) Disconnect the negative battery cable.
3) Detach all the wiring relevant to the removal of
the floor.
7) Remove the slow-return check valve knob

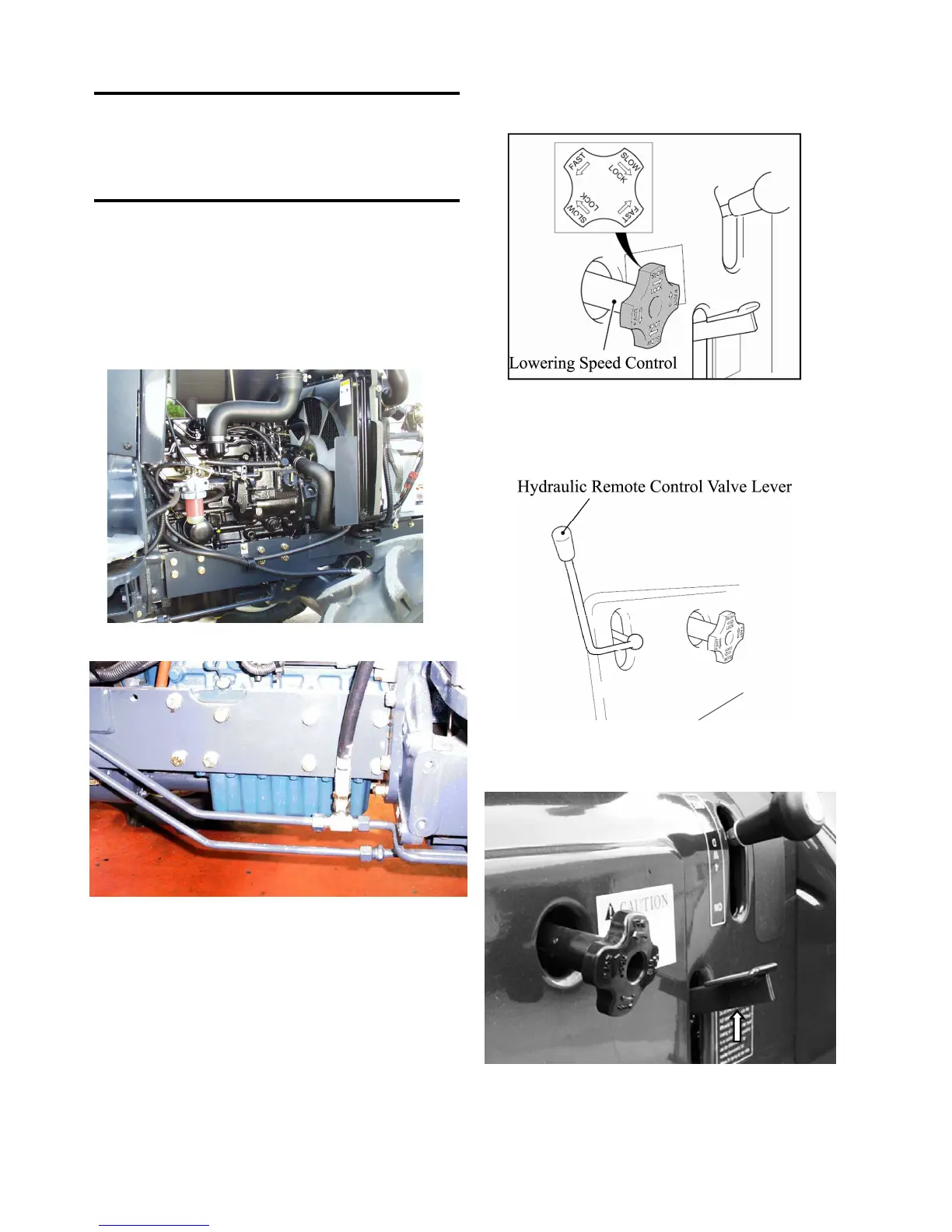

FIG.2-23 Slow return check valve
8) Remove the remote control valve lever
Slow return check valve
Parts which can be inspected during This
operation
-HST unit
-PTO clutch
FIG.2-22
4) Disconnect the throttle lever cable from the fuel
injection pump and accelerator pedal cable from
the pedal.
5) Disconnect the clutch rod and brake rods under
the floor.
6) Disconnect the steering cylinder at the hydraulic
pump
Remote Control Valve Lever
FIG.2-24 remote control valve lever
9) Remove the diff-lock pedal
Diff-lock pedal
FIG.2-25 Diff-lock pedal
