TYM T303HST User Manual

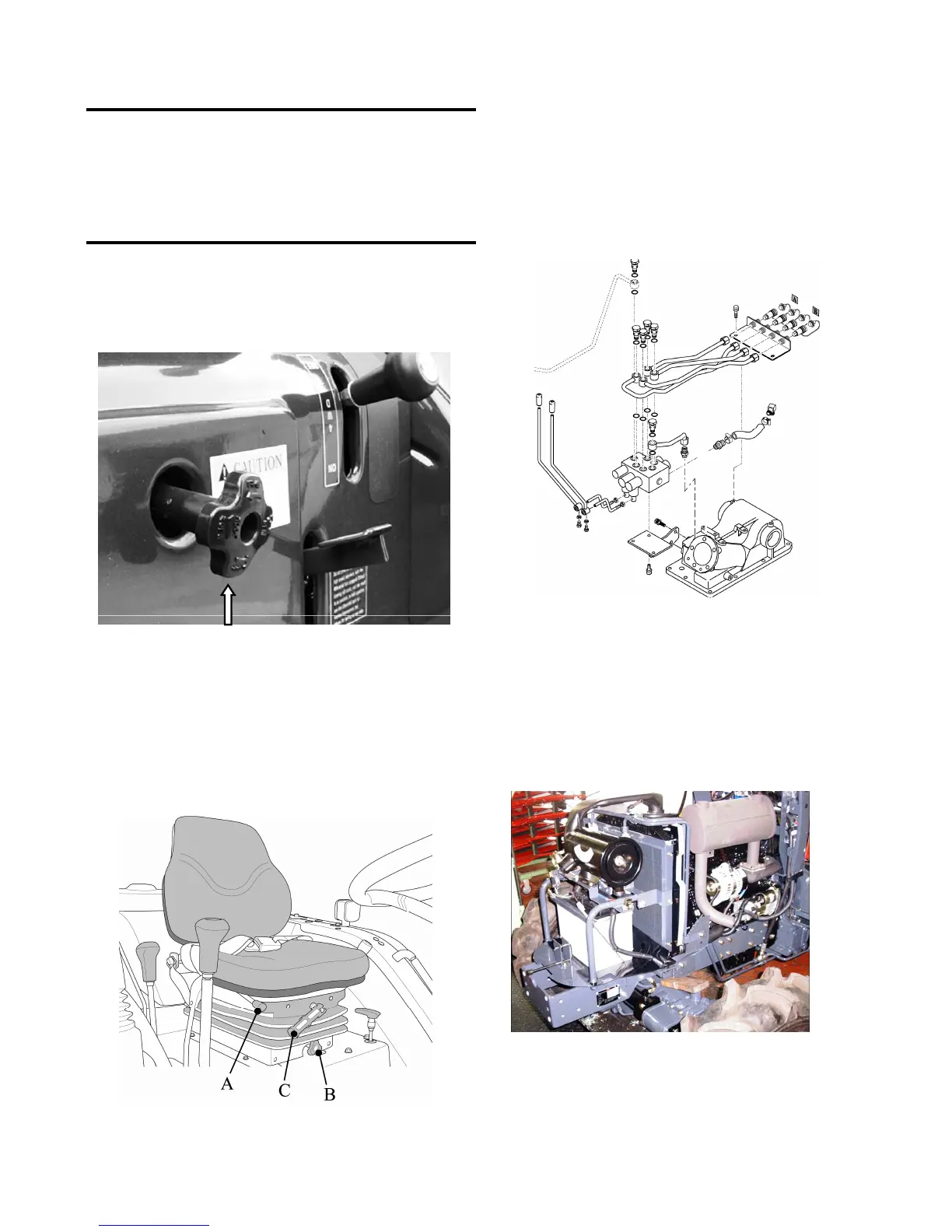

5.SEPARATION OF THE SPACER TRANSMISSION AND REAR TRANSMISSION
1) Removal
(1) remove side cover(LH and RH)
(2) Disconnect the negative battery cable
(3) Remove the slow-return check valve knob.
Slow
return
check
valve
(8) Remove the operator’s seat
(9) remove the position control lever
(10) Remove the lever guide.
(11) When the tractor is equipped with an optional
remote control valve,remove the remote
control valve and relevant parts from the
bracket.
FIG.2
-
42 Remote control valve ( optional )
Parts which can be inspected during This operation
-Drive pinion gear
- Speed range gear (Transmission range shift)
- HST control linkage.
- MID PTO Gears.
Slow
return
check
valve
FIG.2-40 slow return check valve knob
(4) Remove the diff-lock pedal
(5) Remove the parking brake
(6) Remove the speed range shit and transmission
range shift levers.
The lever can be separated in the middle
(7) Disconnect the PTO change and 4WD change
rods from the transmission.
FIG.2-41 operator’s seat
FIG.2
-
42 Remote control valve ( optional )
(12) remove the back panel.
(13) remove the fuel tank cover
(14) Drain the fuel of fuel tank.
(15) Remove the fuel tank and tank stay.
(16) Remove the floor frame.
(17) Drive in a chock between the front axle
housing and axle bracket.
FIG.2-43.Chock
(18) Place a jack under the bottom of the spacer
transmission case to support
(19) Lift up the rear transmission and remove the
right and left rear wheel
2-16
