(20) Remove two rubber mounts.

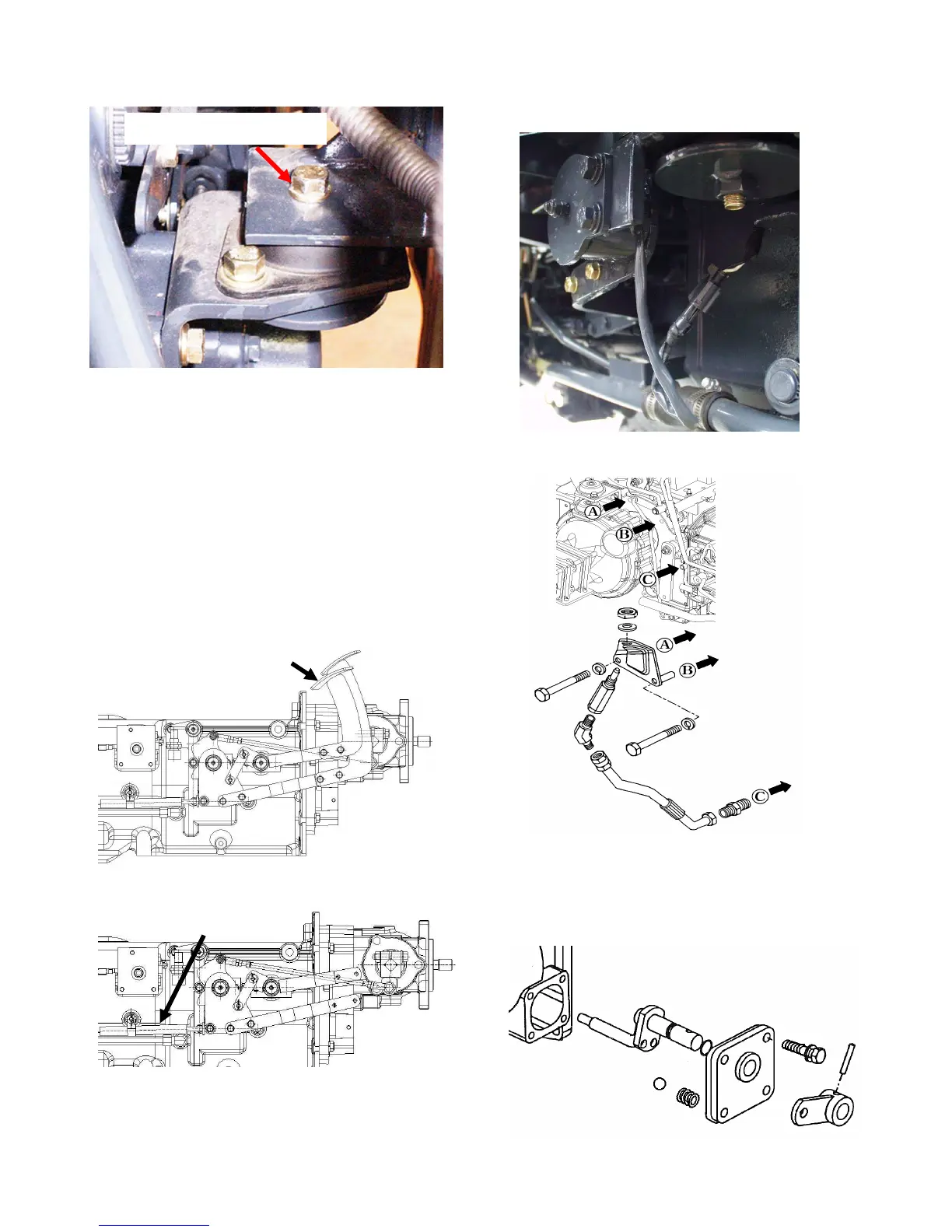

FIG.2-44 Frame rubber mounts.
Rubber mounting bolts
(21) Lift up the rear end of the floor/fender
assembly by about 10 mm,and place wood
between the spacer transmission case and floor
panel
(22) Drain the transmission of oil
(23) Remove the assembly of the remote control
valve and piping.
(24) Remove the forward and reverse pedal
(25) Remove the oil damper assembly
(26) Remove the forward and reverse arm
(27) Remove magnetic cruise.
(28) Remove MID PTO stopper assembly
FIG.2-47 magnetic cruise
FIG.2-45 Forward and reverse pedal
FIG.2-46 Oil damper
Forward and reverse pedal
Oil damper
FIG.2-48 MID PTO stopper
(29) Remove the front wheel drive shaft
(30) Remove the brake rods.
(31) Remove the 4WD shift metal
FIG.2-49 4WD shift metal
