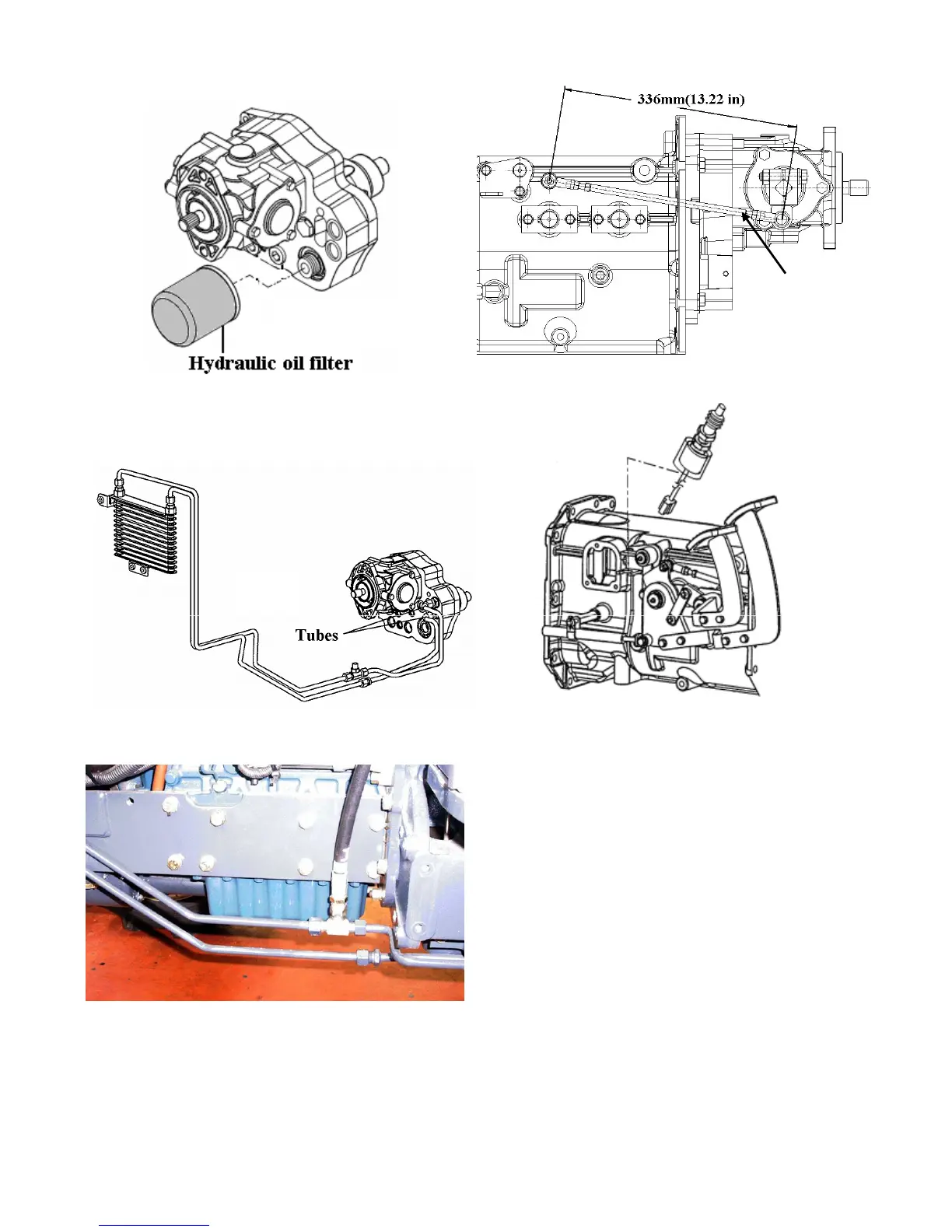

24.Remove hydraulic filter.
25.Disconnect two hydraulic charge pressure
tubes from hydrostatic transmission
28.Disconnect switch connector
Rod
26.Loosen hose clamp and disconnect suction
tube from manifold.
NOTE:Tractor shown split for clarity.
27.Disconnect rod from hydrostatic control
linkage.
29 .Remove 5 screws connecting tunnel to
flywheel housing.Note length and location of
screws when removing.
IMPORTANT: Check for ,and disconnect any
additional accessory wires or hydraulic tubes
connecting rear half to front half before
splitting tractor.
30.Release park brake and place gear shift in
NEUTRAL.
31.Gently pry around edges of flanges to
separate tractor halves.
32.Roll tractor halves apart.
4-20
