typical GT1790A - Eye Protective Cover Installation; STOP Switch Fixation Procedure

-
11
-
(10) Installation of the eye protective cover
Warning
Be sure to attach this cover to protect the eyes from the disperse of needle
breakage.
Please make sure the eye protective cover❶ has been installed before operating the sewing machine.

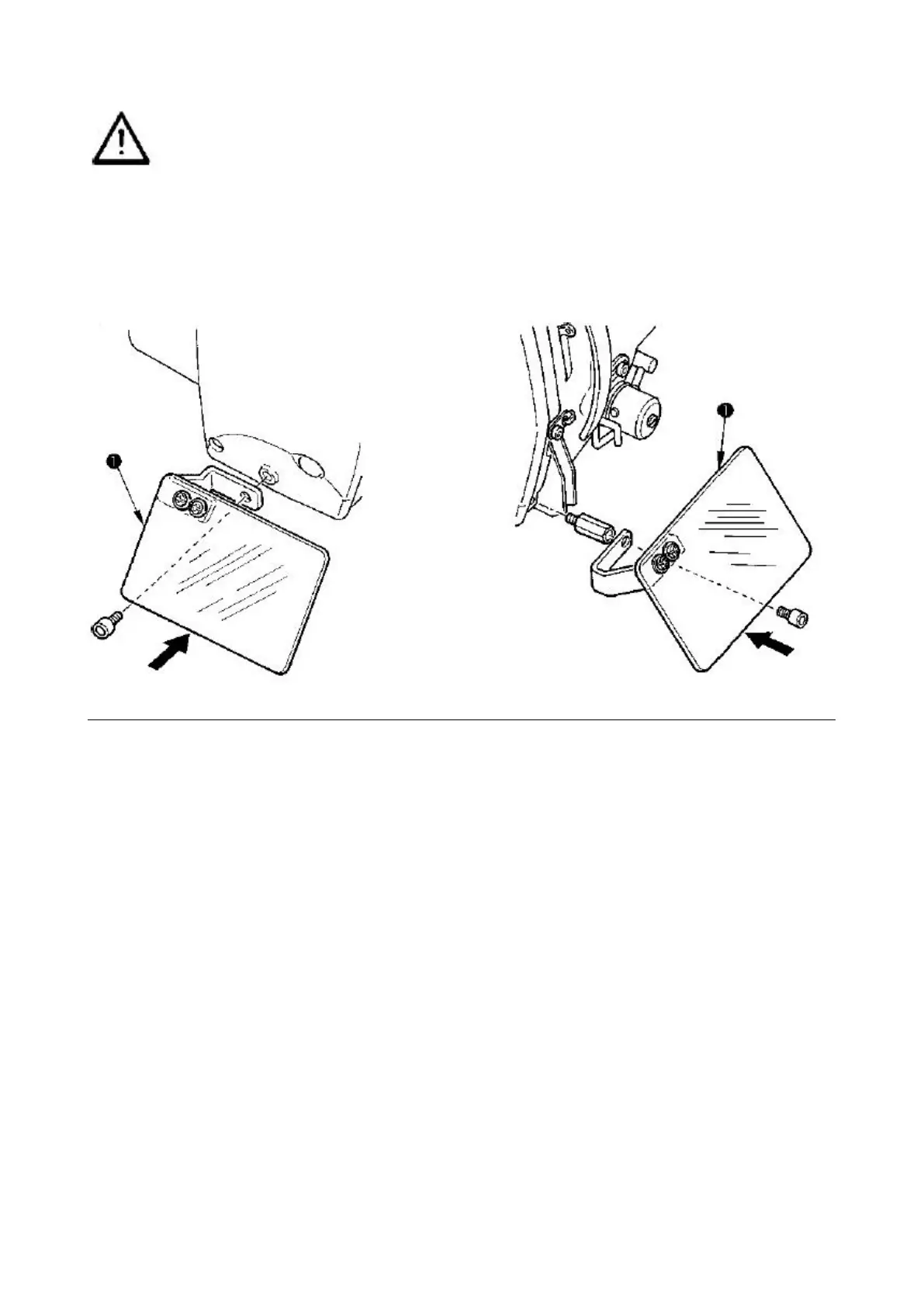

When placed longitudinally
When placed horizontally
(11) Fixation of STOP switch
At the time of delivery, the STOP switch is in state A. Please loosen the setscrew
❶
to change it into state B, and
then fix it with accessory setscrew
❷
and the setscrew
❷
.
Operator
Operator
