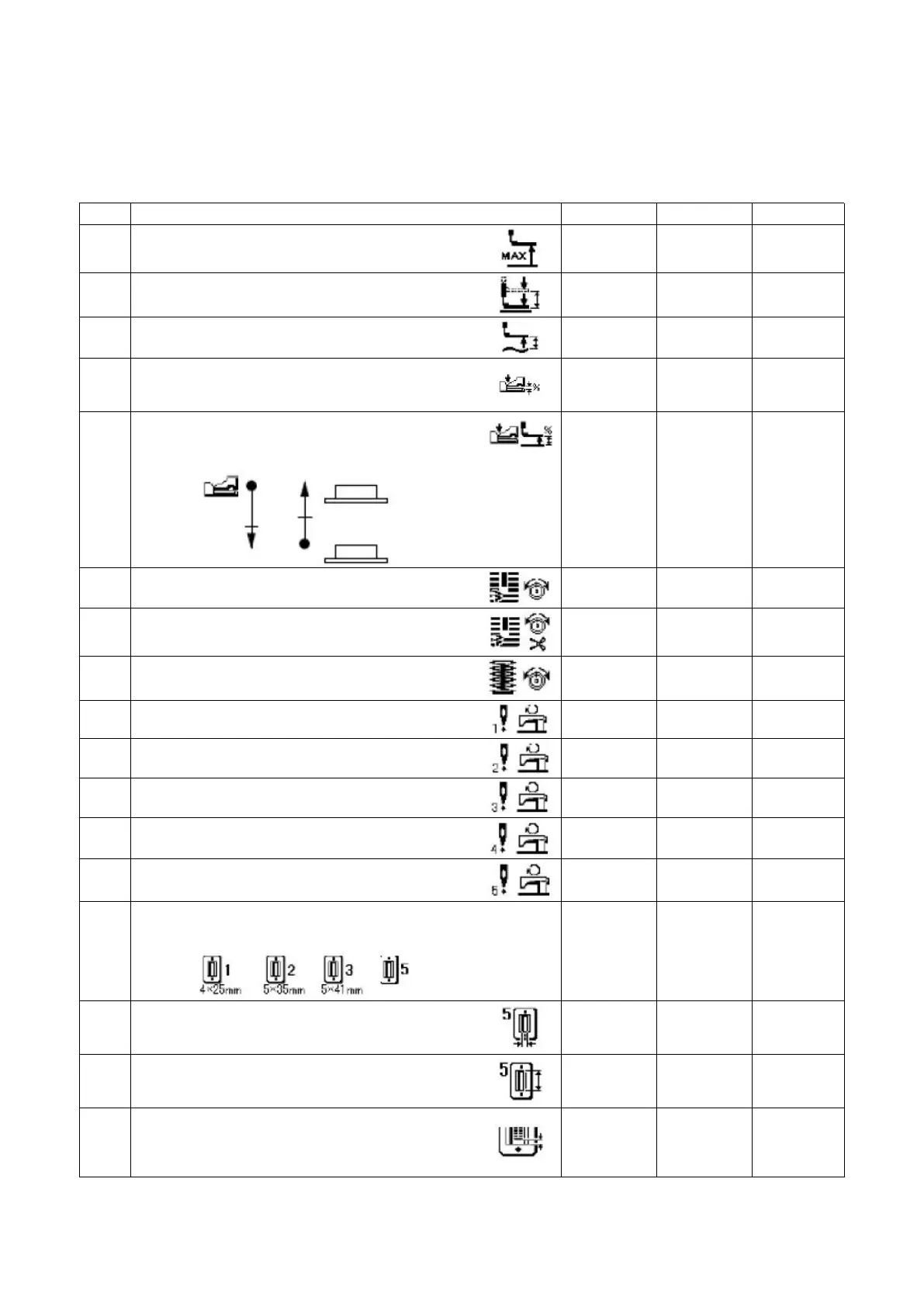

22. List of memory switch data
(1) Level 1
☆Memory switch data (level 1) are the motion data that the sewing machine has in common and the data that
operate on all sewing patterns in common.
No.
Item
Setting range
Edit unit
Initial value
U001
Presser lifter maximum position
Height of maximum position of pedal operation is set.
0 ~ 17.0
0.1 mm
14.0 mm
U002
Presser lifter intermediate position
Height of intermediate position of pedal operation is set.
0 ~ 14.0
0.1 mm
6.0 mm
U003
Presser lifter cloth setting position
Height of cloth setting position of pedal operation is set.
0 ~ 14.0
0.1 mm
0.0 mm
U004
Pedal toe down position of 2-pedal (%)
Operation feeling at the time of 2-pedal is set. Refer to the
item below. Refer to the following for details.
5 ~ 95
1%
80 %
U005
Lifting position of presser foot of 2-pedal (%)
Operation feeling at the time of 2-pedal is set.
5~ 95
1%
50 %
U006
Needle thread tension at sewing end setting
0 ~ 200
1
35
U007
Needle thread tension at thread trimming setting
0 ~200
1
35
U008
Needle thread tension of basting for sewing together
setting
0 ~ 200
1
60
U009
Soft-start speed setting 1
st
stitch
400 ~ 4200
100 sti/min
800 sti/min
U010
Soft-start speed setting 2
nd
stitch
400 ~ 4200
100 sti/min
800 sti/min
U011
Soft-start speed setting 3
rd
stitch
400 ~ 4200
100 sti/min
2000 sti/min
U012
Soft-start speed setting 4
th
stitch
400 ~ 4200
100 sti/min
3000sti/min
U013
Soft-start speed setting 5
th
stitch
400 ~ 4200
100 sti/min
4000sti/min
U014
Presser type
Please set presser type-—Refer to “V-4. Input of the
presser type” p.23
-
-
Type 1
U015
Presser size: width
Set U014 presser type as type 5 and then input presser foot
width.
3.0 ~ 10.0
0.1 mm
3.0 mm
U016
Presser size: length
Set U014 presser type as type 5 and then input presser foot
length.
10.0 ~150.0
0.5 mm
10.0 mm
U017
Sewing start position (feed direction)
Sewing start position corresponding to the presser is set.
Set this item when starting position is desired to be shifted
due to overlapped section or the like.
2.5 ~ 110.0
0.1 mm
2.5 mm
Pedal toe down amount
Presser lifting amount
U001 Presser lifter maximum
position
U005 Lifting position of presser
foot of 2-pedal (%)
U004 Pedal toe don
position of 2-pedal (%)
