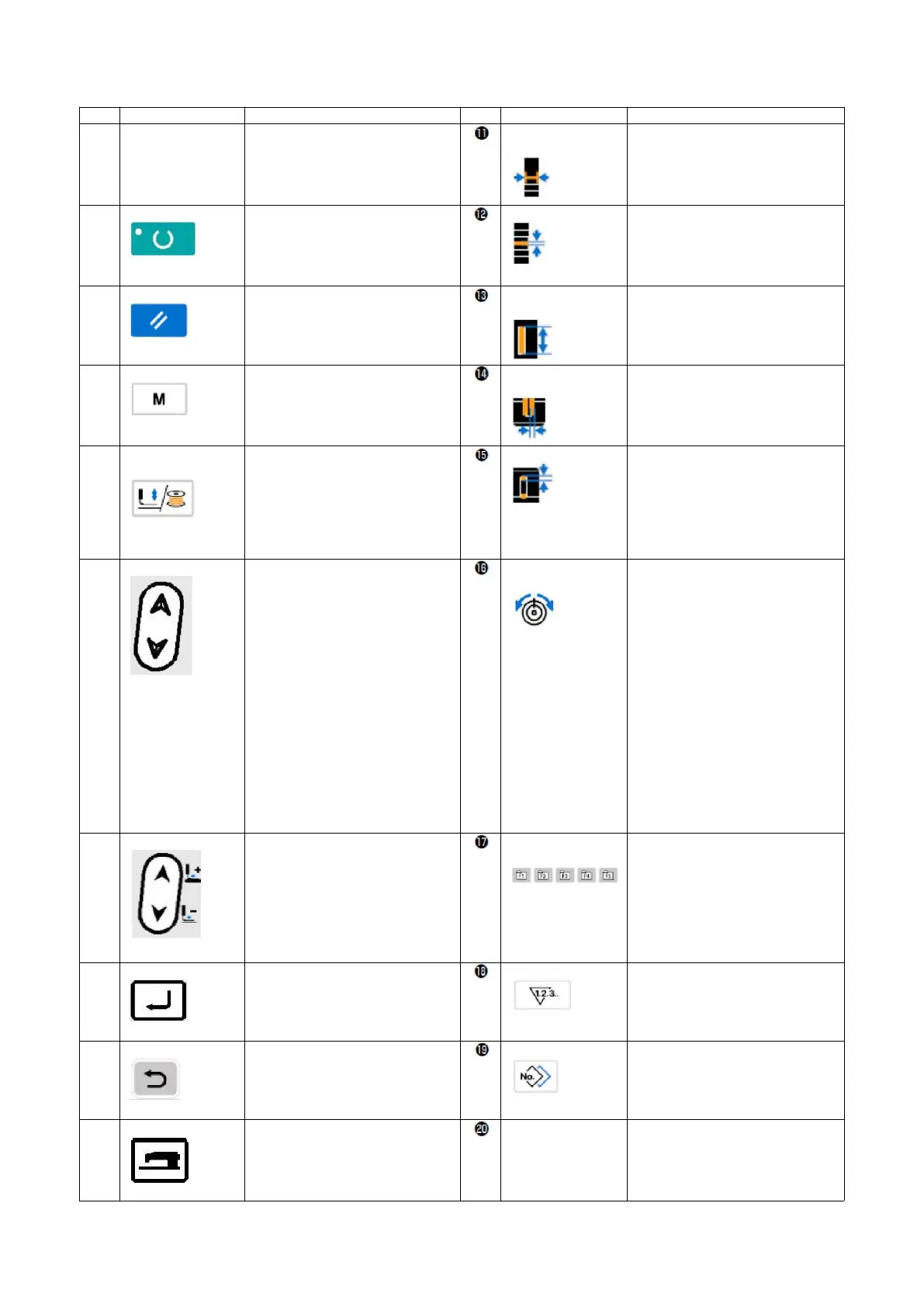

typical GT1790A - Operation Panel Key Functions Overview

-
21
-
No.
Name
Function
No.
Name
Function
❶
LCD display
Display data such as pattern No.,
shapes, etc.
Overedging Width
key
This key selects overedging width
display.
Every time this key is pressed,
S005 and S006 will be displayed
alternately.
❷
Ready key
Press this key when sewing starts.
After pressing the key, change-over
of sewing ready set state and data
set state can be performed.
Pitch key
This key selects pitch of parallel
section.
Every time this key is pressed,
S007 and S021 will be displayed
alternately.
❸
Reset key
Press the key to reset errors, move
to original position, reset counting,
etc.
Cloth cutting
length key
This key selects Cloth cutting
length.
❹
Mode key
This key is used to displaying
mode screen.
Knife Groove
Width key
This key is used to select the knife
groove width correction display.
Every time this key is pressed,
S003 (right) and S004 (left) will be
displayed alternately.
❺
Presser & Winder
key
This key lifts or lowers the presser.
When the presser goes up, the
needle bar travels to the origin and
when it comes down, the needle
bar travels to the right.
Press the key when bobbin
winding.
Clearance key
This key selects clearance display.
Every time this key is pressed,
S022 (1
st
clearance) and S023 (2
nd
clearance) will be displayed
alternately.
❻
Item selection key
This key selects the data No. and
other data.
Thread Tension
key
This key is used to select the thread
tension display.
Every time this key is pressed, the
display item is changed over as
described below:
S052 Tension of right parallel
section
S053 Tension of left parallel
section (1
st
circle of
double sewing)
S054 Tension of right parallel
section (1
st
circle of
double sewing)
S055 1
st
Bar-tacking section
tension
S056 2
nd
Bar-tacking section
tension
❼
Data Change key
This key is used to change pattern
No. and other data. This key is also
used to move the feed forward on a
stitch-by-stitch basis.
Parameter
Registration key
This is a short cut key that
parameter registration is available.
Registration of shortcut to setting
display of an optional pattern,
sewing parameter or adjustment
data is possible. Refer to “V-16.
Using parameter registration key”
P. 42 for setting methods.
❽
Edit key
Display editing screen, select items
or display detailed screen.
Counter key
This key selects counter display.
❾
Return key
Back to the previous screen.
Copy key
Press the key when copying
patterns.
❿
Sewing Speed key
Display editable parameters
concerning sewing speed. In
addition, sewing speed can be
adjusted at any time on sewing
screen.
Set Ready LED
It lights up in sewing mode.
