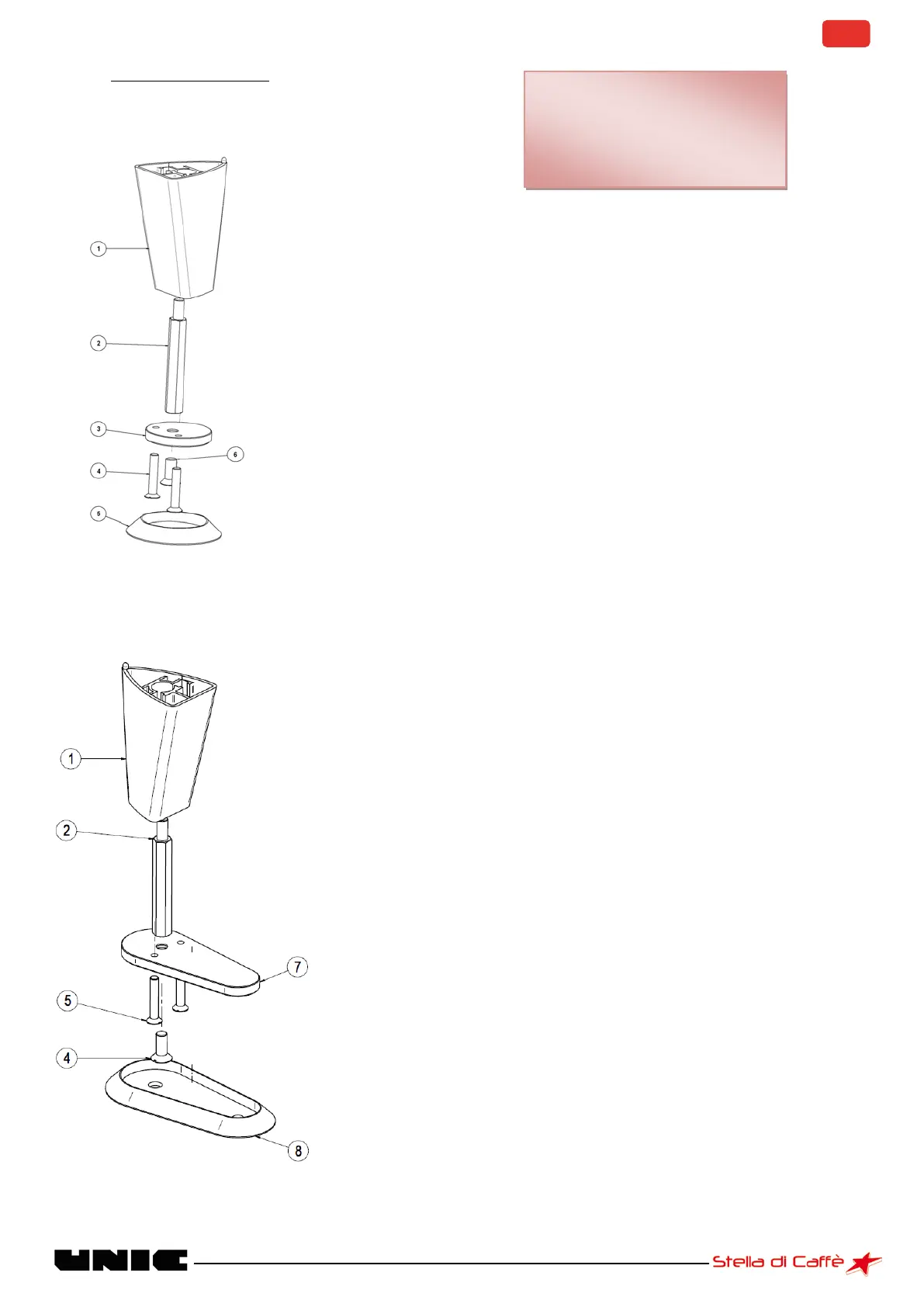

 Fitting the long feet
Rear feet (all versions)
- Fit the 2 M6x35 screws (4) to the rear foot base (3).
- Position the long foot (1) on the chassis (1)
- Fix the foot to the chassis with the guide pin screw (2)
- Fix the base and its 2 screws under the foot with the M8x20 screw (6)
- Position the rubber foot (5) on the base
Front feet (standard version)
- Assemble the front foot base (7) with the M4x16 screws (5). Take
care to fit the shiny face to the top for the visible spacer
- Position the long foot (1) on the chassis (1)
- Fix the foot to the chassis with the guide pin screw (2)
- Fix the base assembly (5, 7) with the M8x20 screw (4)
- Position the rubber foot (8) on the base
Tools required:
- Flat screwdriver
- 12mm open end spanner or
8mm Allen key
- 7mm open end spanner
