Draining
- Pipe with a minimum inside diameter 15 mm: supplied with the machine
To connect the drain pipe to the machine, it is necessary to remove the overflow tray (remove the overflow
tray grids, unscrew the 2 knurled screws and pull the overflow tray towards you) and the drain connection
fixing screws.
Connect the drain pipe to the drain connection (to make the pipe easier to fit we recommend holding its end
under hot water), and then reassemble in the reverse order of removal.
Connect the other end of the drain pipe to a waste water drain while making sure that there are no reverse
slopes to hinder the flow.
Electrical connection
CAUTION: The machine should be connected to a line fitted with a mains isolation switch.
The machine is delivered with a cable with 5 numbered cores.
Set the mains isolation switch to 0 before starting work.
Check that the voltage, frequency and power values on the manufacture's plate on the machine correspond
with those of the mains

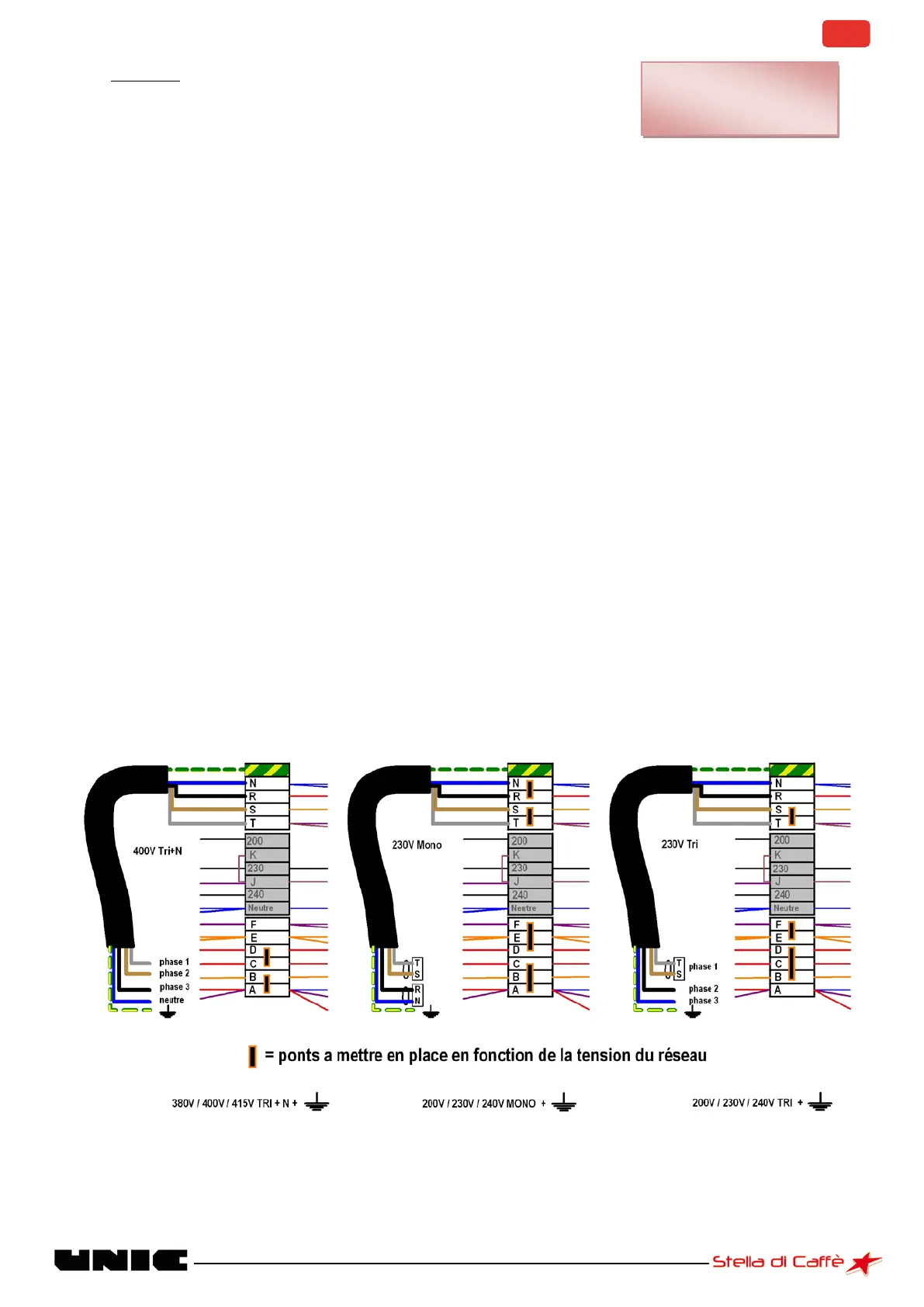

Check that the machine wiring corresponds with the power supply available, according to the connection
diagrams below. If necessary change it by altering the positions of the jumpers in the connection block on
the left of the machine.
CAUTION: to connect 230V with a 5 core cable, it is essential to connect the wires at the end of the cable
correctly.
For 230 V single-phase: blue and black wires together, brown and grey wires together. Take care over the
current capacity (32A)
For 230V 3-phase: brown and grey wires together. Caution, there is no neutral so the blue wire must be
connected to a phase
IN ALL CIRCUMSTANCES THE GREEN/YELLOW WIRE MUST BE CONNECTED TO THE
INSTALATION GROUNDING CONDUCTOR
- Flat screwdriver
- Multigrip pliers
