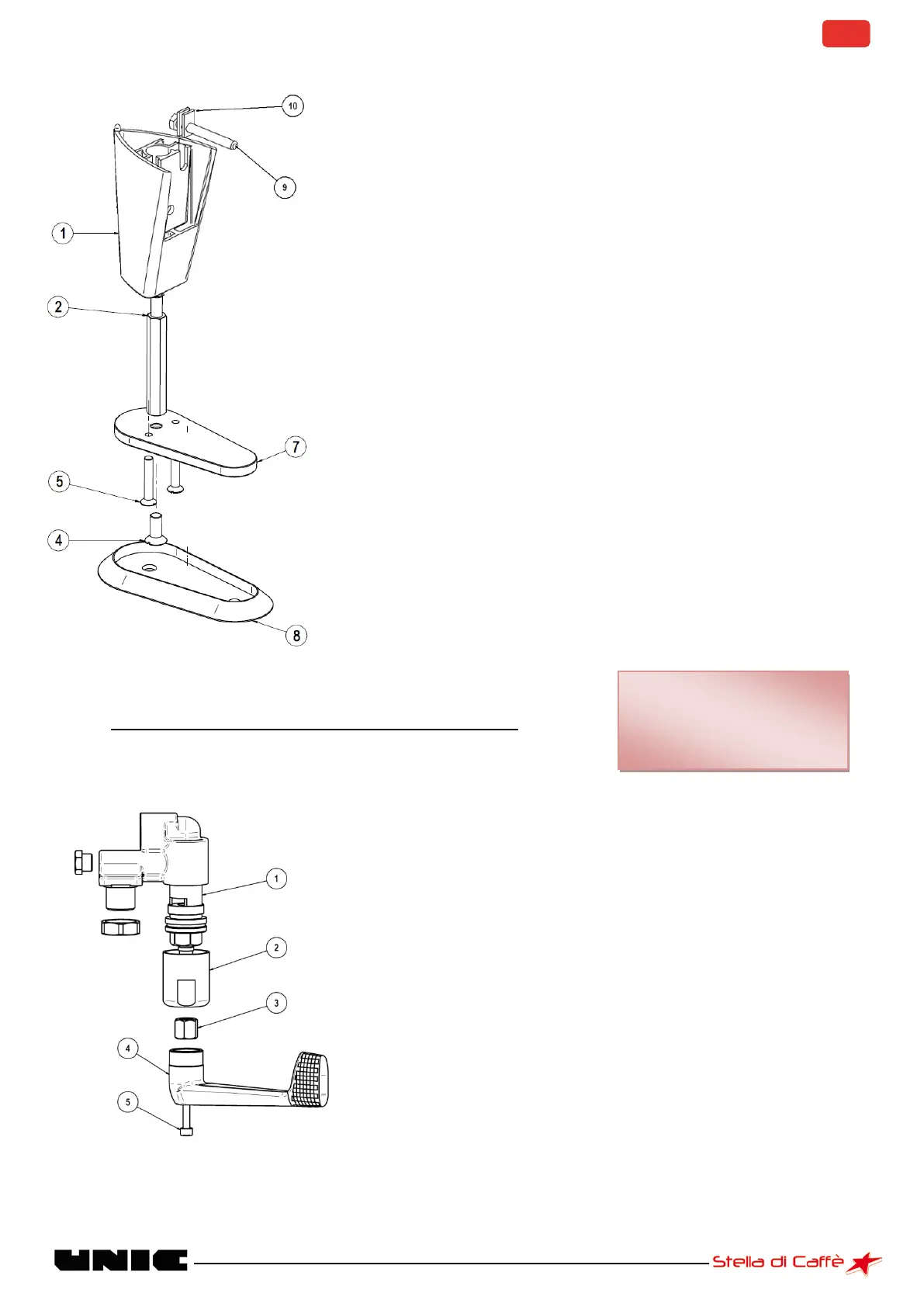

Front feet (V+ version)
- Assemble the front foot base (7) with the M4x16 screws (5). Take
care to fit the shiny face to the top for the visible spacer
- Fit the M6x50 overflow tray mounting screw (9) with its spacer(s)
(1x 2mm or 2x 1mm) (10) in the foot (1), positioning it towards the
inside of the machine
- Position the long foot (1) on the chassis (1)
- Fix the foot to the chassis with the guide pin screw (2)
- Fix the base assembly with the M8x20 screw (4)
- Position the rubber foot (8) on the base
Removal / replacement of the steam tap cartridge
- Take out the handle (4) by loosening the BTR M4x16 screw
(5) and save the insert (3)
- Unscrew the cover (2)
- Remove the cartridge (1) from the tap body by unscrewing it
- Reassemble the group in the reverse order of dismantling
bearing in mind the following points:
- Make sure there is no dirt or foreign matter that could
compromise sealing or operation
- Check that the cartridge is in the closed position and adjust
the handle so that it comes as close as possible to the front
panel without touching it while remaining on the left of the
tap
- 3 mm Allen key
- 25mm open end spanner
- 17 mm tube wrench
