OPERATING CONTROLS AND FUNCTIONS

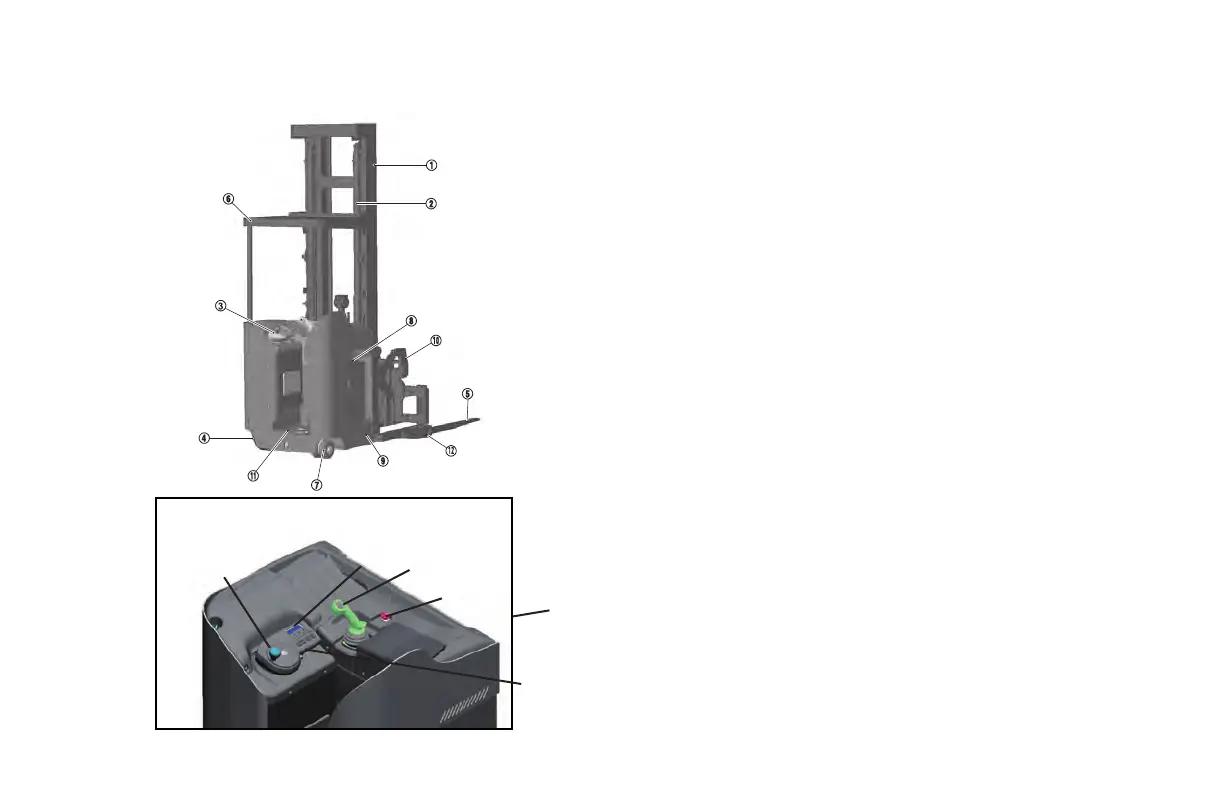

MAIN COMPONENTS
1. Mast Upright: The mast upright is the lifting device for the forks.
The lifting is done through hydraulic lift cylinders and chains.
2. Lift Cylinders: The cylinders are used to lift the forks up and
down.
3. Operator Compartment: (a) Steering wheel, (b) Control Panel,
(c) Multifunction Handle, (d) Emergency Switch, (e) Ignition Switch
4. Steering Tire
5. Forks: Their widths can be easily adjusted to t differing pallets or
loads.
6. Overhead Guard : Intended to offer protection from falling objects,
but cannot protect against every possible impact.
7. Drive Caster
8. Battery Connector
9. Battery Gate
10. Reach Pantograph
11. Floor Board w/ Brake and Operator Presence Pedals
12. Tandem Load Wheel
b
a
c
d
3
e
