GENERAL CARE AND MAINTENANCE
TIRE REPLACEMENT
DRIVE/STEER TIRE
WARNING
!
!
• Do not remove the wheel unless you are familiar with the
procedure. For wheel replacement, contact your Local
Authorized Dealer.
1. Park the forklift on rm level ground.
2. Raise the mast approx. 100mm (3.97 in.).
3. Place a wedge block behind the load wheel to help prevent truck
from moving.

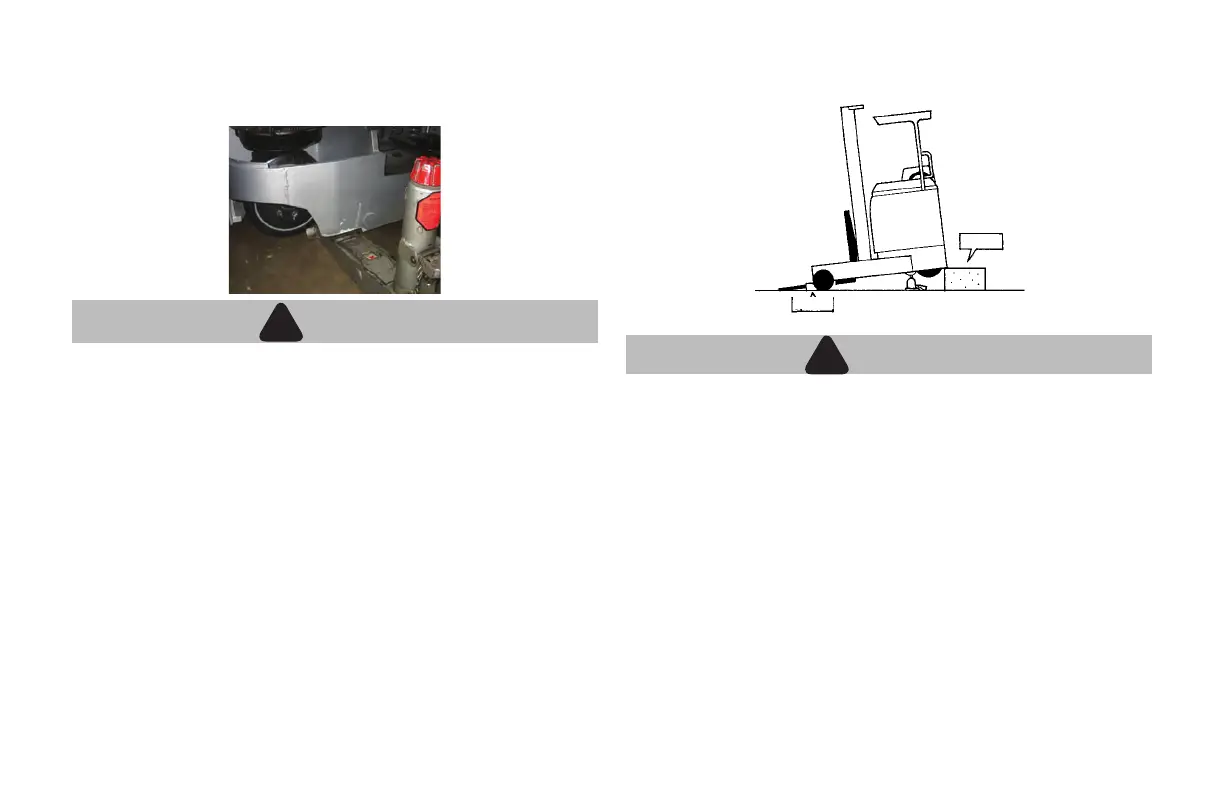

4. Turn drive wheel as shown as above.
5. Loosen the wheel nuts one to two turns, turning counterclockwise.
6. Using a jack as shown above raise drive tire off the oor.
7. Place a wood block under the frame near the jack. Remove the
nuts and change the wheel.
8. Install the new wheel and put nuts back on. Cross tighten evenly.
Apply nal torque after drive wheel is on oor.
9. Remove the wood block from under the frame.
10. Lower the forklift slowly until the wheels touch the ground.
11. Finish cross tightening the wheel nuts, applying the specied
torque: use 111-140 ft/lbs. or 150-190 Nm.
REAR CASTER
WARNING
!
!
• This rear caster replacement requires you to be trained in the
correct procedure in removal of the wheels. If you have not
been trained & do not have the correct tools do not attempt
this repair. Contact your Local Authorized Dealer.
1. Park the forklift on rm, level ground.
2. Install wedge blocks behind the front load wheels to help avoid
movement.
3. Place a jack under the rear end of the forklift, making sure that the
load capacity of the jack is at least 2/3 the full weight of the forklift
then block.
Chock
Block
