52
OPERATING CONTROLS AND FUNCTIONS
NOTE:
Both presence and brake pedals must be depressed to enable
travel.
WARNING
!
!
• Always operate the forklift truck with your body inside the
operator's compartment.
Operating the forklift truck with your head, arms or feet sticking out
of the operator's compartment can cause a part of your body to hit a
storage rack post or other piled loads or be caught in trucks.
If the multi-function handle is tilted forward or back before the brake
pedal is engaged, travel is disabled until the multi-function handle is
released to neutral. To stop the fork lift in an emergency, release the
brake pedal completely to apply the brakes.
WARNING
!
!
• DO NOT use the brake pedal to stop the lift truck except in
an emergency. A full and rapid release of the brake pedal will
stop the lift truck abruptly and could cause damage or injury
or possibility of a lost load. NEVER USE TWO FEET ON THE
BRAKE PEDAL.
bRAKE AND OPERATOR'S PRESENCE PEDALS (cont’d)
OPERATOR PRESENCE PEDAL (cont'd)
Depress the presence pedal with the right foot. Always depress the
presence pedal while traveling or operating hydraulic equipment. If the
foot is released from the presence pedal and 0.5 second has passed
while traveling or operating hydraulic equipment, the system will stop
traveling or operating hydraulic equipment, and then the warning
indicator will appear on the display. To resume operation, return the
multi-functional lever to the neutral position and depress the presence
pedal again.
BRAKE PEDAL
• The rearward pedal closest to the compart ment opening functions
as the Brake Pedal.
• The Brake Pedal enables the travel functions of the lift truck.

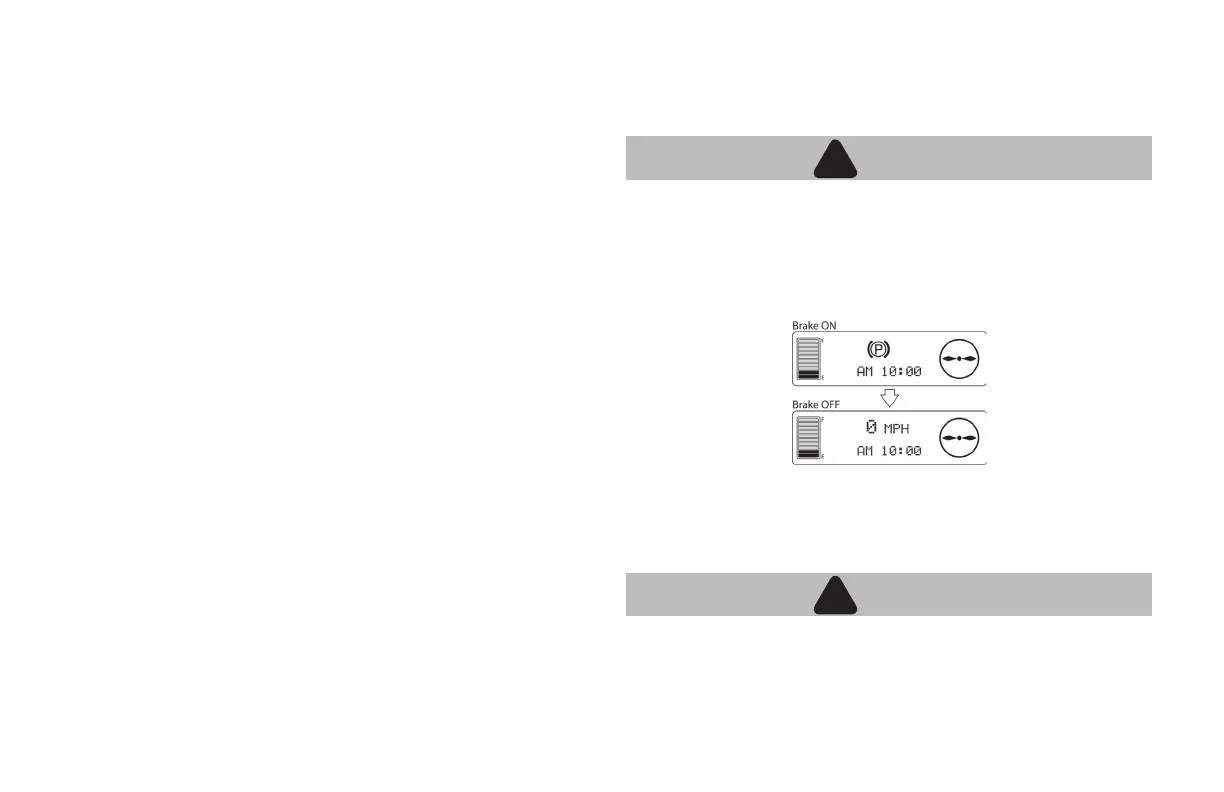

• When the operator steps on the pedal, the brakes are released and
the travel functions are enabled.
Depress the brake pedal with the left foot. Depressing the brake pedal
releases the parking brake.
BRAKING BY PLUGGING (Controlled Reversing)
• Plugging is a normal operation to slow down and/or stop an
industrial truck. To plug a unit while traveling either direction simply
tilt the Multi-functional handle to the opposite direc tion. The unit
should come to a smooth stop in about its own length.
• Braking by plugging is the recommended method of braking the
1H2 (SRX). Note: At start-up (key-on) if brake pedal is depressed
meter panel will be interrupted and an error message displayed on
screen. Release Brake pedal to continue meter Panel start-up.
