OPERATING CONTROLS AND FUNCTIONS
METERS, INDICATORS AND LAMPS (cont’d)
AUTOMATIC FORK HEIGHT SELECT (OPTION): AFHS

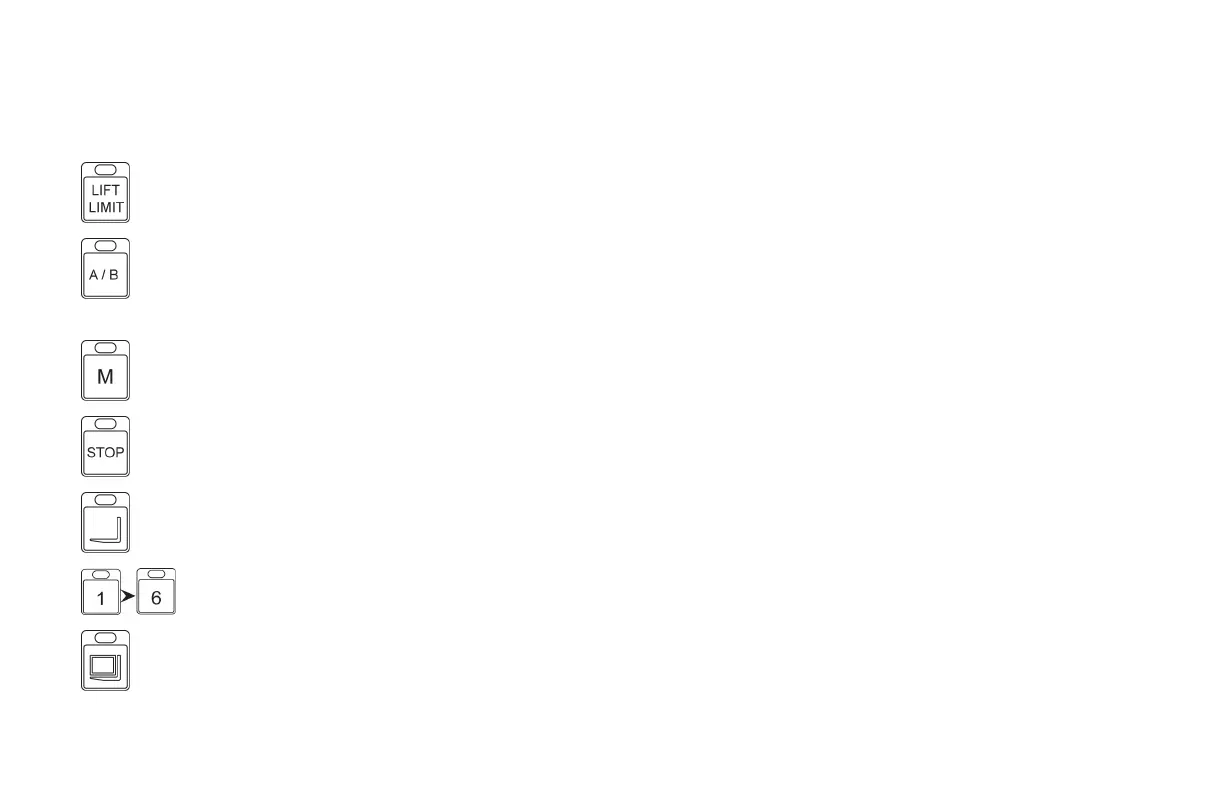

Pushbutton Functions
Lift limit: Limits Maximum Fork Height. When programmed,
two separate maximum lift heights can be set using the A/B
pushbutton (PB).
A/B Pushbutton (PB A or PB B): Can be used to program
AFHS for two (2) maximum lift heights and preset height
stops for two (2) racks having different rack height
requirements. When the A/B switch LED is on, the B rack
memory is being utilized on buttons 1-6.
Memory Pushbutton (PB M): Use to program/change/clear
pushbuttons.
Stop Pushbuttons (PB S): Use to cancel selection or
automatic lift.
No Load Pushbutton: Use to place a load onto rack. When
selecting the load PB the automatic fork stop will stop the
forks at the proper height to enter a pallet.
Preset Pushbutton (PB 1-6): Selects rack level for
automatic stop.
Loaded Pushbutton: Use to place a load into rack. When
selecting the loaded PB the automatic fork stop will raise
the forks 100 mm (4 inches) higher than the no load PB
so a pallet can be placed on the rack 100 mm (4 inches)
dimension can be changed by a trained and authorized
technician.
