UniPOS IFS7002 User Manual

UniPOS IFS7002 two signal loops
Instruction Manual Page 58
Revision 11/01.17 Of 145

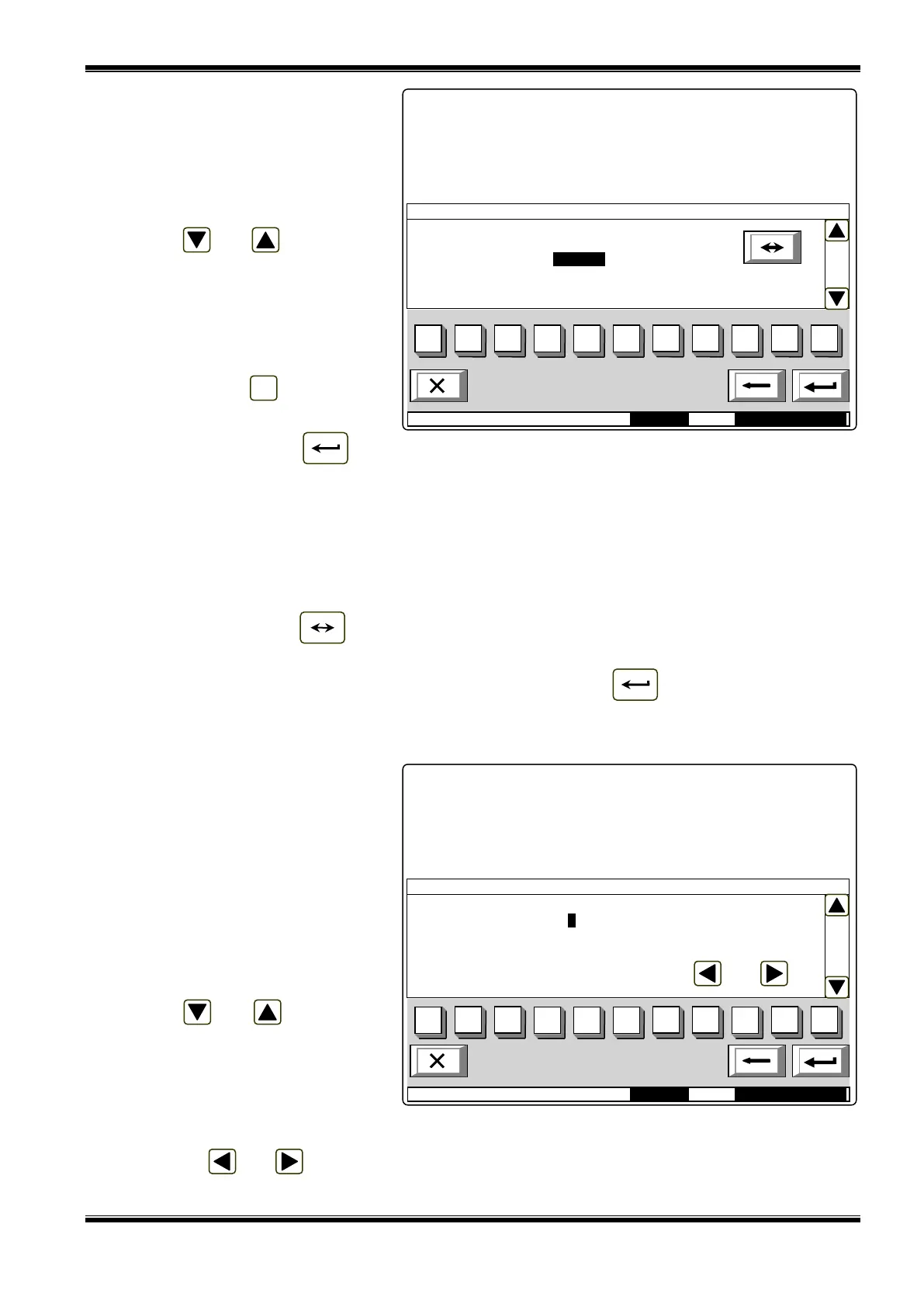

 If some zones in test are
available, the first zone in test
will be displayed, and in the
panel bottom section will
appear the text message of
the zone:
Buttons and seen in the
right panel section allow the user to
switch between the next and the
previous zone in test (if any).
Using the digit buttons you may
enter in the Go to field a random 3-
digit number of the zone. To edit the
number press button and the last
entered digit will be deleted.
When you press button after a number is entered in the Go to field, the status of the zone
whose number is selected, will be displayed:
 If the selected number is 0, the status of Zone 1 will be displayed;
 If the selected number is higher than 250, the status of Zone 250 will be displayed.
 If the zone has not been formed yet, instead of text message of the zone appears Disabled
zone;
 If the zone has not been formed yet, instead of text message of the zone appears Free zone;
Simultaneously, the number in the Go to field will be deleted; i.e. the field is deactivated.
By pressing the button the zone status is alternatively changed from IN TEST to NOT IN
TEST and reverse, and in the bottom left section appears the reminder Data not saved. The changes
(enable/disable test operation in fire alarm zone) take effect if button is pressed (and the Go to
field is empty); then the reminder Data not saved is cleared.
12.3.3. Function Set Clock
The function is used to set the
real time clock of the control panel to
the correct time. Enter the function to
display the screen:
Calendar date, day of the week,
the time and the value of the
calibration index are visualized, as
per the moment when the function
was activated. The cursor is located
over the first position in the first line
(Date).
Buttons and in the right
panel section allow the user to move
between the lines on the screen.
To set the correct date and time
(line one and three) use:
 The digit buttons – to enter a specific digit on the position of the cursor;
 Buttons and – to move the cursor one position to the left or one position to the right.
Mode:DAY LOC АctInp 0000 15:19:22 Mon 22 Mar 2010
FIRE CONTROL PANEL IFS7002
UniPOS
System functions/Test/Zones Go to:
Zones in test - total 002
ZONE: 001 IN TEST
Zone 001
0
1
2
3
4
5
6
7
8
9
С
С
Mode:DAY LOC АctInp 0000 15:56:31 Mon 22 Mar 2010
FIRE CONTROL PANEL IFS7002
UniPOS
System functions/Clock
Date (dd-mm-yy):21-03-05
Day: Monday
Time (hh:mm:ss):15:56:31
Calibration: +10
0
1
2
3
4
5
6
7
8
9
С
