UniPOS IFS7002 User Manual

UniPOS IFS7002 two signal loops
Instruction Manual Page 90
Revision 11/01.17 Of 145
13.6. Menu Inputs
Use this menu to setup the addressable inputs of input-output devices FD7203 and to define
FD7201 and FD7201S as monitored inputs. FD7203 inputs are reset automatically when the input
action ceases. It is possible FD7201 and FD7201S monitored inputs to be setup to be reset
automatically when the input action ceases or manually when manually operating the fire control
panel. In the menu it is displayed:
 If no addressable input modules are available – a screen with the message No inputs; the only
option is to exit the menu;

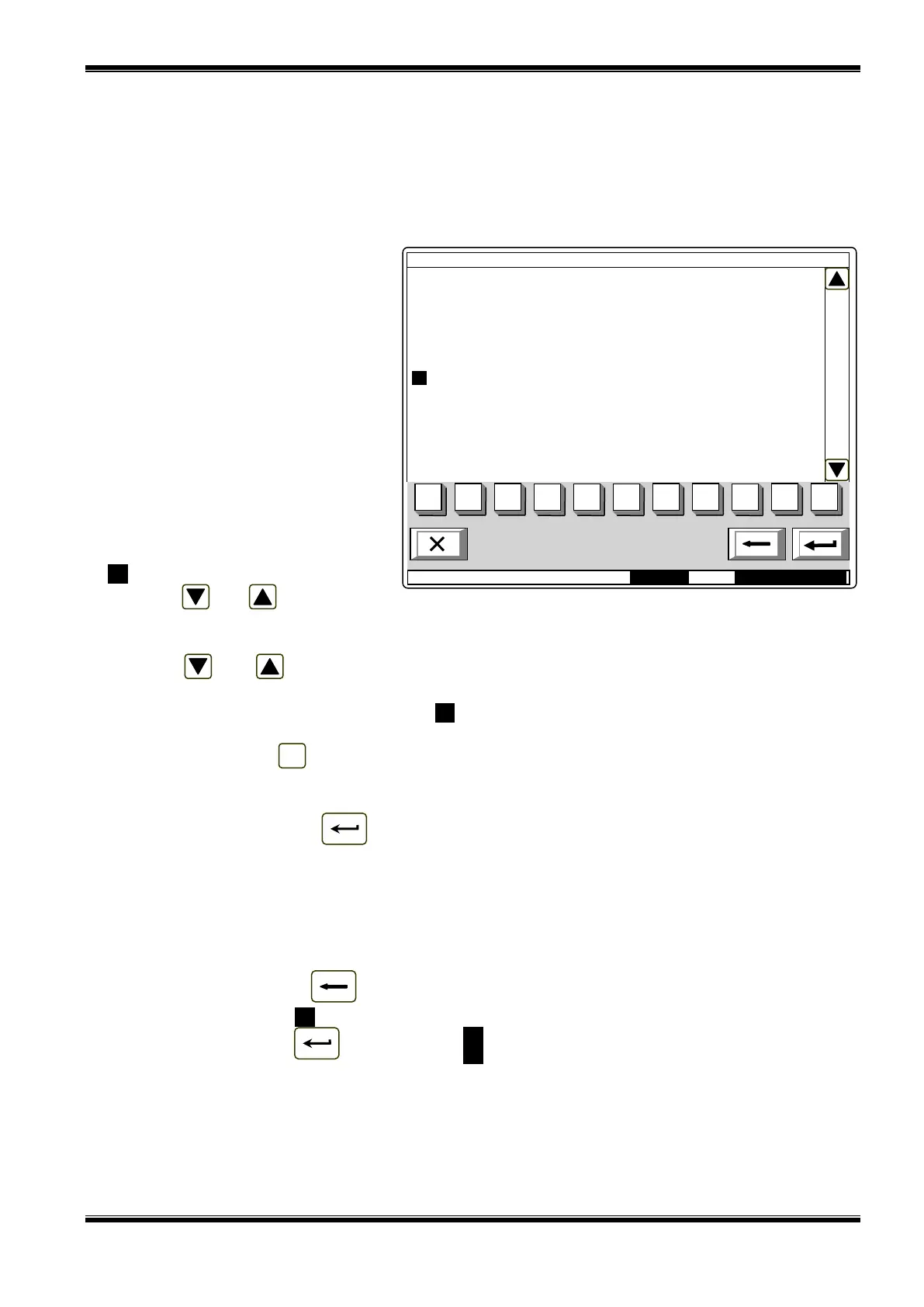

 If addressable input modules
are available – a screen for
selection of the first
addressable input whose
parameters are to be set:
For each addressable input is
displayed:
 Loop number, input module
address in the loop and the
number of the input in the
module if more than one – in
the top line;
 Text message for the module
– in the line beneath.
The selected input is pointed by
– „>>”.
Buttons and in the right
panel section are visualized where more than one addressable input is available, the Go to field in the
heading and the digit buttons appear if more than one addressable input module is available.
Buttons and allow the user to switch between the next and the previous addressable
input (if any).
When you press a digit button the arrow „>>” will appear before the selected addressable input is
deleted and the Go to field is activated; you can enter a random 3-digit number for the device. To edit
the number press button and the last entered digit will be deleted.
Devices obtain numbers according to the following sequence: from first device in Loop 1 to the
last device in Loop1; from the first device in Loop 2 to the last device in Loop 2.
When you press button and a number is entered in the Go to field, the first free
addressable input of the first addressable input module whose number is equal to or higher than the
number in the field will be selected:
 If the number is 0, the first free addressable input will be selected;
 If the number is higher than the number of the last free addressable input module, the last free
addressable input will be selected.
Simultaneously the number in the Go to field is deleted; i.e. the field is deactivated.
When you press button after you entered a number in the Go to field, the field will be
deactivated and the arrow „>>” will appear before the selected addressable output.
Whe you press button and the arrow „>>” is visualized (Go to field is empty) then a menu
containing groups of parameters for the selected addressable output will appear:
 Screen List of addressable outputs;
 Menu Remove addressable output;
 Menu Add addressable output;
 Screen Outputs activation mode;
 Menu Text message.
С
Mode:DAY LOC 16:09:46 Thu 25 Mar 2010
SetUp Inputs Go to:
>>Loop1 Аddr19.1
Point 1.019
0
1
2
3
4
5
6
7
8
9
С
