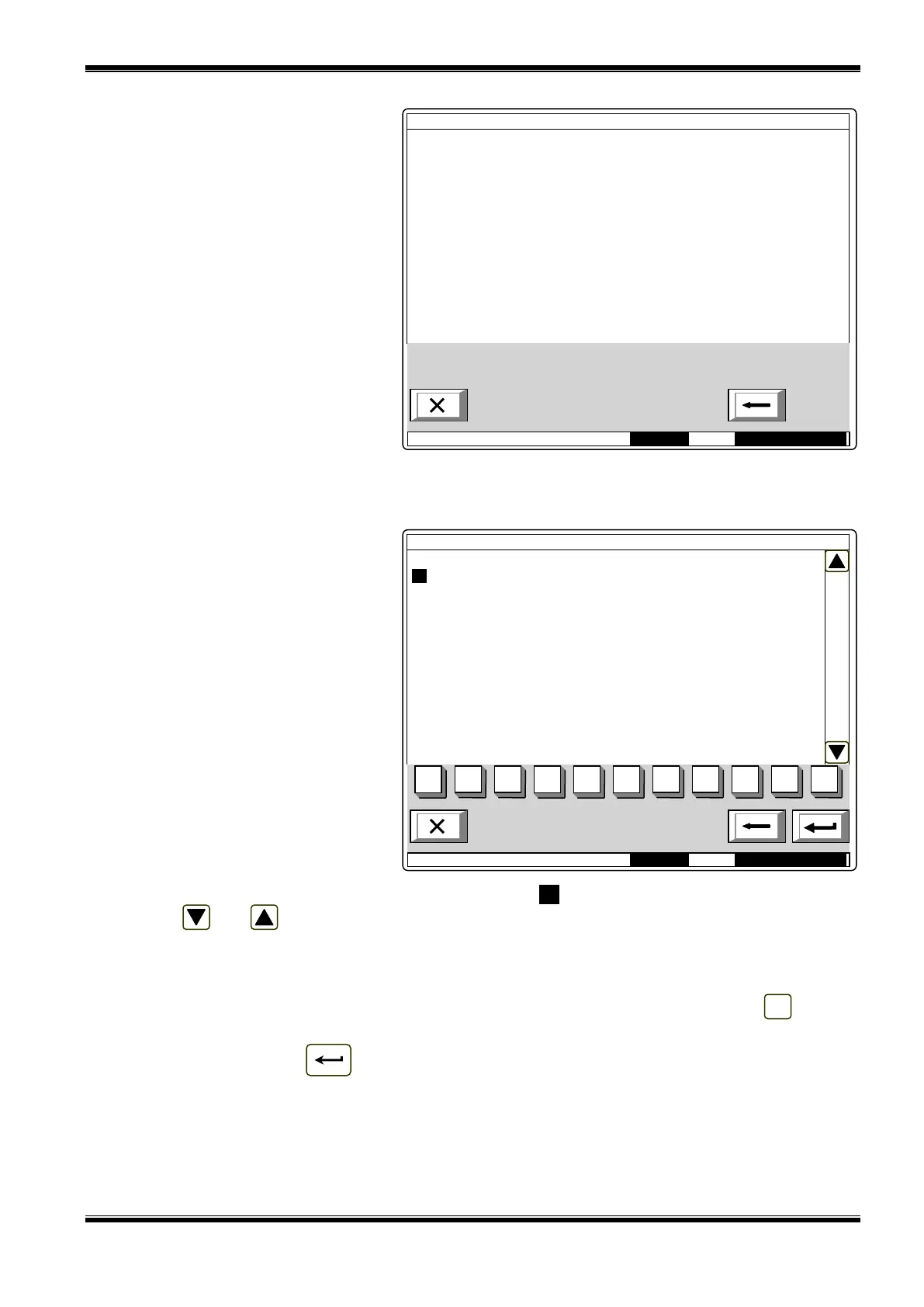

13.6.1. Screen List of addressable outputs
The screen displays a list of
addressable outputs that will be
initiated upon activation of the
addressable input. For each output is
displayed the loop where the output
module is included in, its address in
the loop and the number of the
output in the module, if more than
one.
If no addressable outputs subject to activation through the addressable input are available, a
screen with the text message No addressable outputs activated by this Input appears.
13.6.2. Menu Remove addressable output
The menu allows the user to
remove separate addressable
outputs, activated by the addressable
input:
For each addressable output is
displayed:
 Its number in the list of
outputs, activated by the
addressable input; the loop
where the module is included;
the address of the module in
the loop and the number of
the output in the module, if
more than one – in the top
line;
 Text message for the device
– in the line beneath.
The selected addressable output is pointed by arrow – „>>”.
Buttons and in the right panel section are visualized if more that one addressable output
is available, and the Go to field in the heading and the digit buttons appear if more than 7 addressable
outputs activated by the input are available.
When you press a digit button, the Go to field is activated; you can enter a random 2-digit numbr
for the output in the list of outputs activated by the input. To edit the number, use button , press it
and the last entered digit will be deleted.
When you press button and a number is entered in the Go to field, the output whose list
number is in the field will be selected:
 If the number is 0, the first output activated bythe addressable input will be selected;
 If the number is higher than the number of outputs, activated by the addressable input the last
output will be selected.
Simultaneously the number in the Go to field is deleted; i.e. the field is deactivated.
С
Mode:DAY LOC 17:26:07 Thu 25 Mar 2010
SetUp Input Lp1 Аddr19.1
List of addressable Outputs Total: 11
Loop1 Аddr7.2 Loop1 Аddr7.6 Loop2 Аddr11.1
Loop1 Аddr7.3 Loop1 Аddr8 Loop2 Аddr12
Loop1 Аddr7.4 Loop2 Аddr9 Loop2 Аddr13.2
Loop1 Аddr7.5 Loop2 Аddr10.1
Mode:DAY LOC 17:34:50 Thu 25 Mar 2010
SetUp Input Lp1 Аddr19.1 Go to:
Remove addressable Output Total: 11
>> 1 Lp1 Аddr7.2
Point 1.007
2 Lp1 Аddr7.3
Point 1.007
3 Lp1 Аddr7.4
Point 1.007
4 Lp1 Аddr7.5
Point 1.007
5 Lp1 Аdr7.6
Point 1.007
6 Lp1 Аddr8
Point 1.008
7 Lp2 Аddr9
Point 2.009
0
1
2
3
4
5
6
7
8
9
С
