UniPOS IFS7002 User Manual

UniPOS IFS7002 two signal loops
Instruction Manual Page 38
Revision 11/01.17 Of 145
If the device is FD7201 or FD7201S
type and we want it to operate as a
monitored input, enter Settings /Loop
/ Loop X / Device Parameters and
proceed as follows for FD7201 type
to be setup as a monitored input:
12.2.9. Menu Zones
The menu provides information for the parameters of all zones established in the fire control
panel. Enter the menu to display:
 A screen with the message No zones – appears where no zones are available; the only option
is to exit the menu;
 A screen where you can
select a zone and display its
parameters – appears where
some zones are available:
For each zone you can display:
 Its number – in the first line;
 Text message – in the line
beneath.
The zone is selected by arrow –
„>>”.
Buttons and in the right
panel section appear where more
than one zone is available; the Go to
field and the buttons with digits
appear where more than three zones
are available.
Buttons and allow the used to select the next or the previous zone (if any are available).
When you press a digit button, the field Go to is activated and a random 3-digit number
designating the zone number can be entered in the field. To edit the 3-digit number, press button
and you can delete the last entered digit.
When you press button after the 3-digit number is already entered in the Go to field you
can select a zone and its address is displayed in the field:
 If you enter 0 for a number, the zone with address 1 will be selected;
 If you enter a number higher than the actual number of zones, the zone having the highest
number will be selected.
The number in the Go to field is then deleted; i.e. the field is deactivated
When you press button after the 3-digit number is already entered in the Go to field, the
field will be deactivated.
С

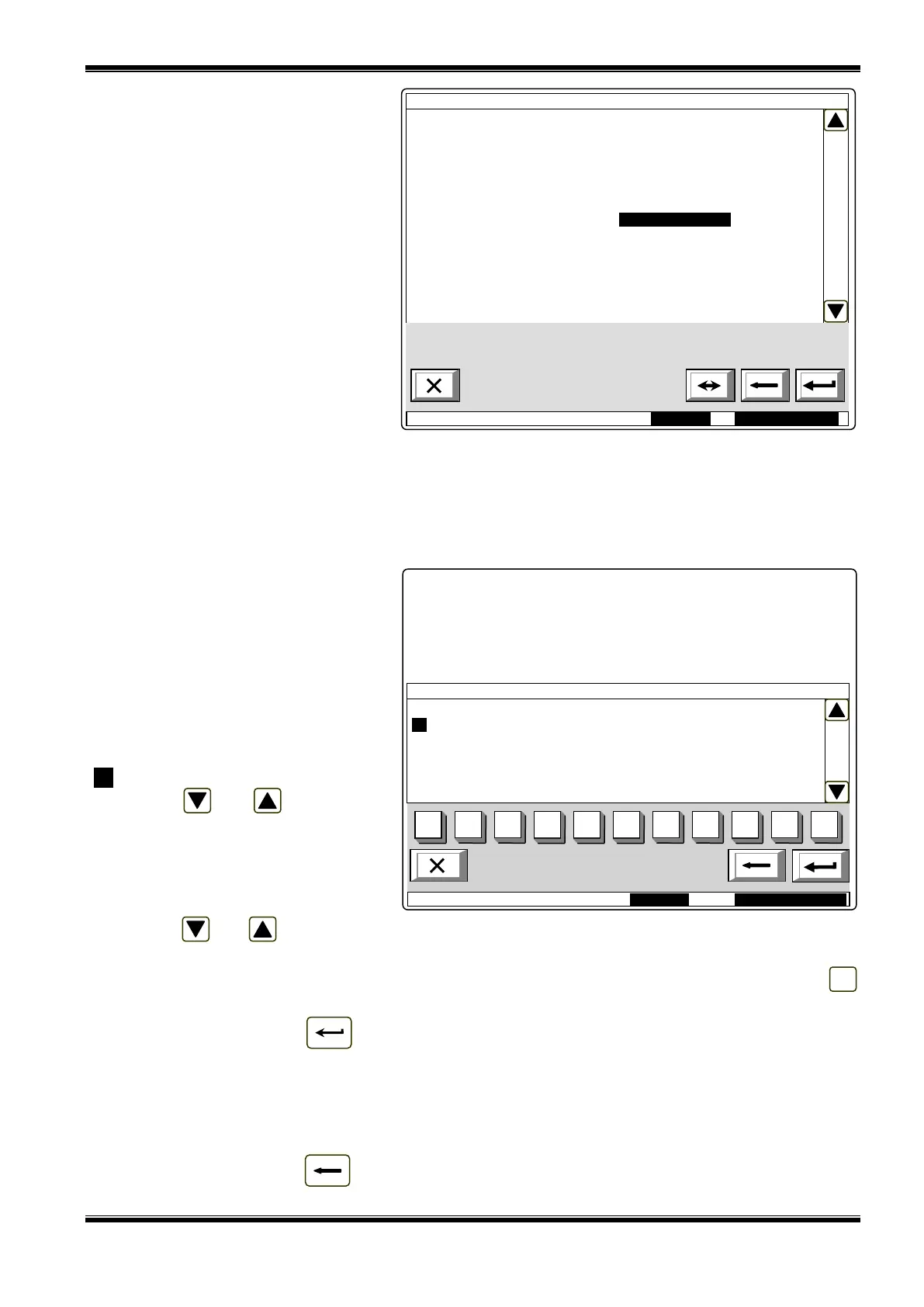

Mode:DAY LOC АctInp 0000 18:38:14 Fri 12 Mar 2010
FIRE CONTROL PANEL IFS7002
UniPOS
Zones parameters Zones: 5 Go to:
>> Zone 1
Zone 001
Zone 2
Zone 002
Zone 3
Zone 003
0
1
2
3
4
5
6
7
8
9
С
Mode DAY LOC 16:13:30 Fr 12 Маr 2010
Set Up Device 2 Loop 1
Device type: FD7201
Status: On
Class: A2S
Type: Monitored input
Input reset: Автоматично
