CLIMATE CONTROLLER C-46 - INSTALLATION AND OPERATION MANUAL
14
5.4 Connecting the Climate Controller C-46
Connections of sensors and other equipment is made in both the
lower and upper compartments.
Lower compartment

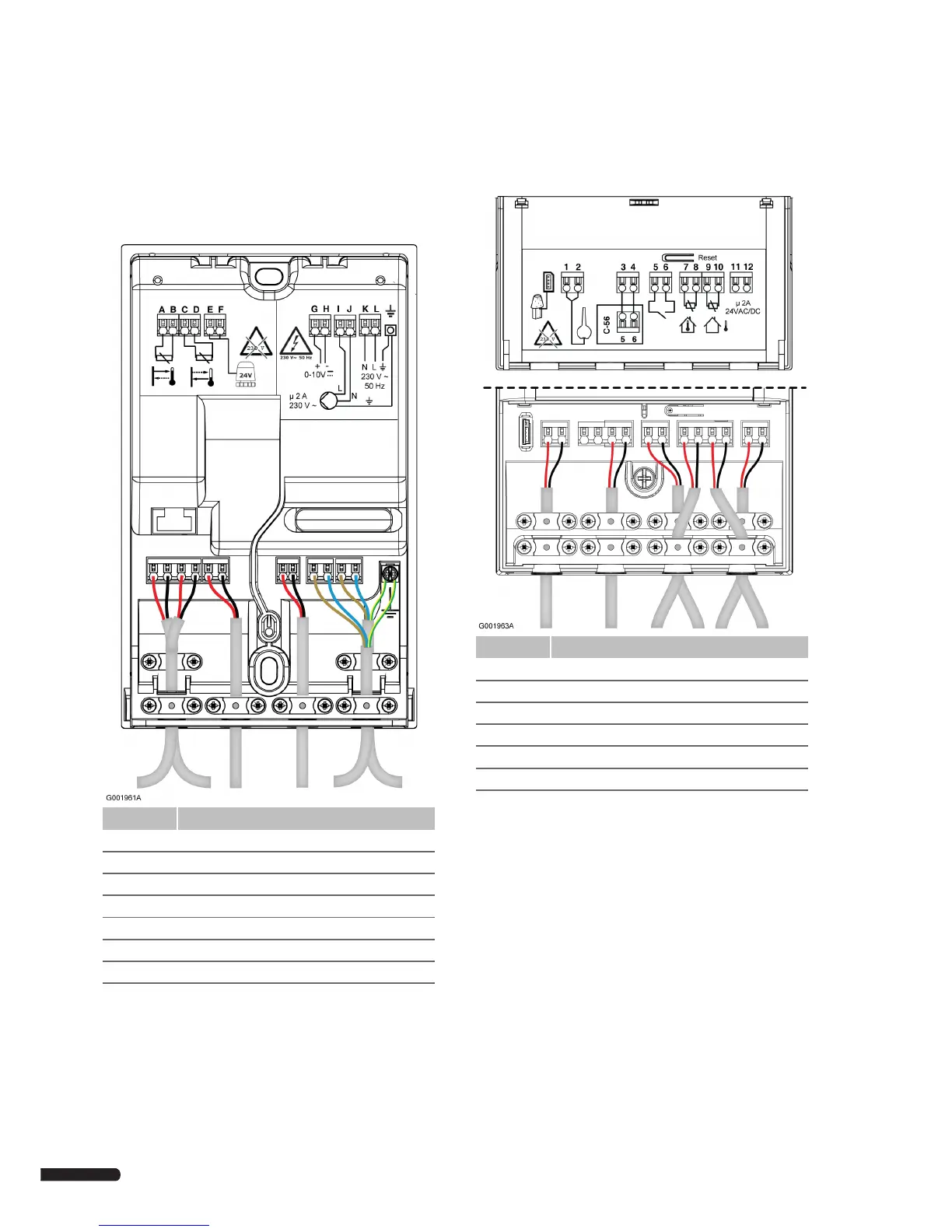

The figure below shows an example of cable connection in the
lower compartment.
* Only one of these ports can be used in the same installation
1. Connect cables to be used as indicated in the figure and table
above.
2. Loosen the cable clamp closest to each cable and route the
cable through the clamp.
3. Tighten the cable clamp firmly and ensure that the cables are
fixed.
Upper compartment
The figure below shows an example of cable connection in the
upper compartment. On top of the illustration is the cover inside
with label.
1. Connect cables to be used as indicated in the figure and table
above.
2. Loosen the cable clamp closest to each cable and route the
cable through the clamp.
3. Tighten the cable clamp firmly and ensure that the cables are
fixed.
4. Reconnect the signal cable from the upper compartment to
the lower.
5. Put back the upper compartment on top of the lower and
tighten the fixing screw.
6. Put back the cover onto the upper compartment.
Connectors Connections in lower compartment
A-B Supply temperature sensor input
C-D Return temperature sensor input
E-F * +24 V DC output for thermal actuator
G-H * 0–10 V DC output for motorized valve
I-J Pump output
K-L 230 V AC power supply
7 Earth ground
Connectors Connections in upper compartment
1-2 Active antenna connection
3-4 C-56 connection
5-6 General purpose input
7-8 Indoor temperature sensor input
9-10 Outdoor temperature sensor input
11-12 General purpose output relay
