CLIMATE CONTROLLER C-46 - INSTALLATION AND OPERATION MANUAL
22

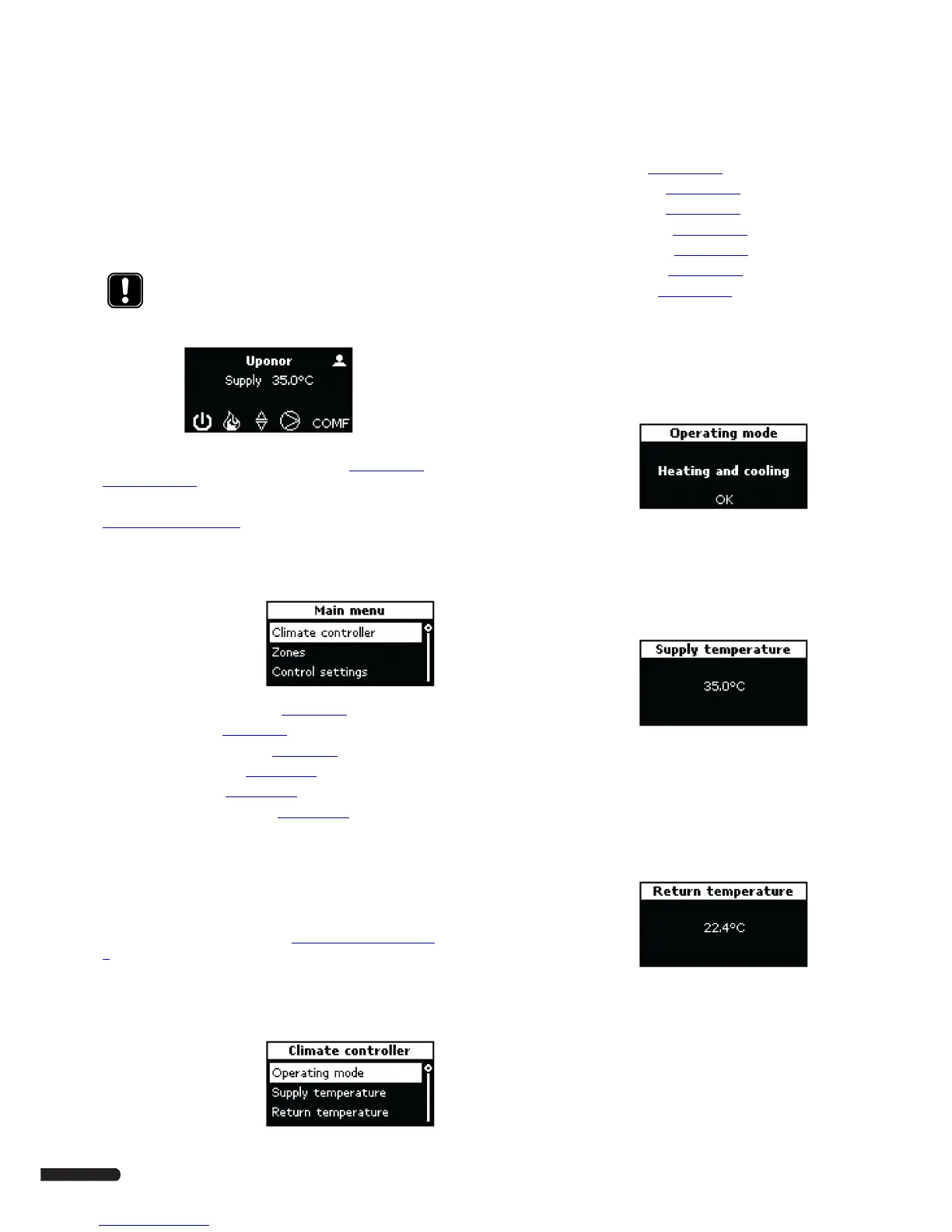

8 Operating the Climate Controller C-46
This section describes the screens that are used for
• setting parameters to operate the system
• selecting operating modes and sub-modes
• displaying parameter settings
• displaying selected operating modes
• displaying sensor readings
A description of how to navigate through the various screens
using the navigating buttons is given in section 6.1
Operation
interface, page 15.
The sections below are presented in the same order as in section
9
Menu structure, page 42.
8.1 Main menu
To display the Main menu:
1. When the Uponor screen
is displayed, press the OK
key to display the Main
menu.
The Main menu contains
the following items:
• Climate controller, section 8.2, page 22
• Zones, section 8.3, page 23
• Control settings, section 8.4, page 23
• ECO mode, section 8.10, page 34
• Alarms, section 8.11, page 37
• General settings, settings 8.12, page 37
2. Select the required sub-menu and press OK.
8.2 Climate controller (menu)
This section describes screens that are accessible from the
Climate controller menu. Which of the screens that are
accessible is dependent of the operating mode selected for the
Climate Controller C-46. See section 3.3
Operating modes, page
8.
To display the Climate controller menu:
1. Navigate through the screens using the navigation keys:
Uponor > Main menu > Climate controller
Example screen:
The Climate controller menu contains the following items:
• Operating mode, section 8.2.1, page 22
• Supply temperature, section 8.2.2, page 22
• Return temperature, section 8.2.3, page 22
• Average temperature, section 8.2.4, page 23
• Outdoor temperature, section 8.2.5, page 23
• Indoor temperature, settings 8.2.6, page 23
• Relative humidity, settings 8.2.7, page 23
8.2.1 Operating mode
To display the status of the selected operating mode:
1. Navigate through the screens using the navigation keys:
Uponor > Main menu > Climate controller >
Operating mode
Example screen when
Heating mode is selected:
8.2.2 Supply temperature
To display the supply temperature:
1. Navigate through the screens using the navigation keys:
Uponor > Main menu > Climate controller >
Supply temperature
Example screen:
8.2.3 Return temperature
The return temperature can be displayed if a return sensor is
used.
To display the return temperature:
1. Navigate through the screens using the navigation keys:
Uponor > Main menu > Climate controller >
Return temperature
Example screen:
NOTE!
All sequences described below start from the Uponor
screen.
