8.13.1 View links
The View links menu is used to display which sensors that are
linked by radio to the Climate Controller C-46. It is also possible
to display the working conditions for the radio linked sensors.
To display the View links menu:
1. Navigate through the screens using the navigation keys:
Uponor > Main menu > General settings > View links

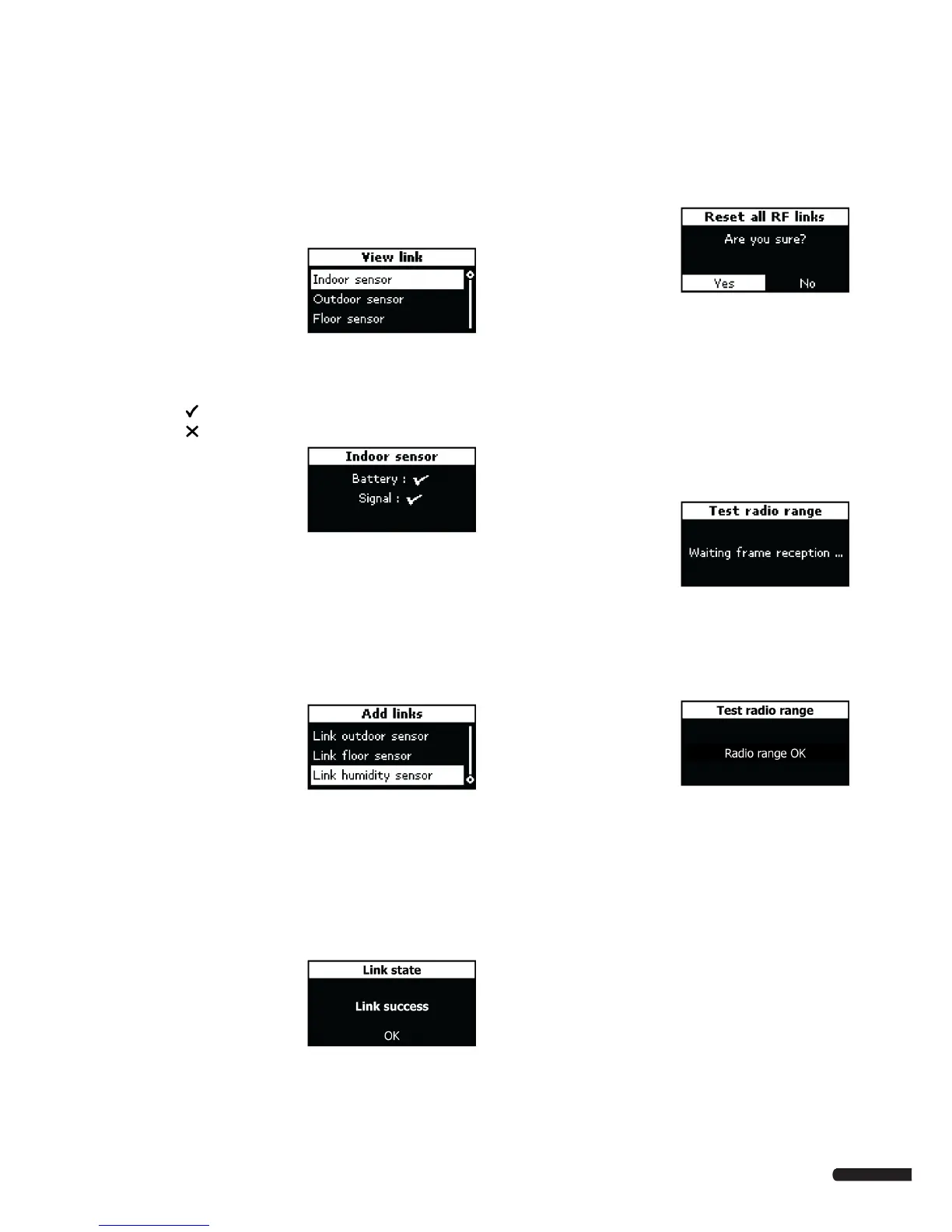

Example screen:
2. Select the desired sensor and press OK.
The next screen displays the sensor conditions for battery
and signal.
• = battery or signal is good
• = battery or signal is bad
Example screen:
8.13.2 Add links
The Add links function is used to establish radio links between
radio sensors and the Climate Controller C-46.
To add links to the Climate Controller C-46:
1. Navigate through the screens using the navigation keys:
Uponor > Main menu > General settings >
Radio links > Add links
Example screen:
2. Select the required sensor and press OK.
The next screen displays:
Add link
Wait link
3. Initiate the linking process from the sensor.
The screen now displays:
Add link
Link in progress ...
4. When the linking process
is finished the following
screen is shown:
In case the linking process fails, the following is displayed:
Link failure
In any case, press OK to return to the Add links menu.
8.13.3 Reset all links
To reset all established links:
1. Navigate through the screens using the navigation keys:
Uponor > Main menu > General settings >
Radio links > Reset all links
Example screen:
2. Select Yes or No as desired and press OK.
8.13.4 Test radio range
The purpose with the Test radio range function is to verify that
the radio signal from the sensor has a signal strength with a good
margin when received by the Climate Controller C-46.
To perform the Test radio range:
1. Navigate through the screens using the navigation keys:
Uponor > Main menu > General settings > Radio links>
Test radio range
Example screen:
2. Press OK.
The next screen displays:
Test radio range
Waiting frame reception ...
3. Start the test from the sensor.
• If test is successful,
the following screen is
displayed:
• If the test fails, the Climate Controller C-46 will wait until
the test time out is reached and the Uponor screen is
displayed again.
