CLIMATE CONTROLLER C-46 - INSTALLATION AND OPERATION MANUAL
17

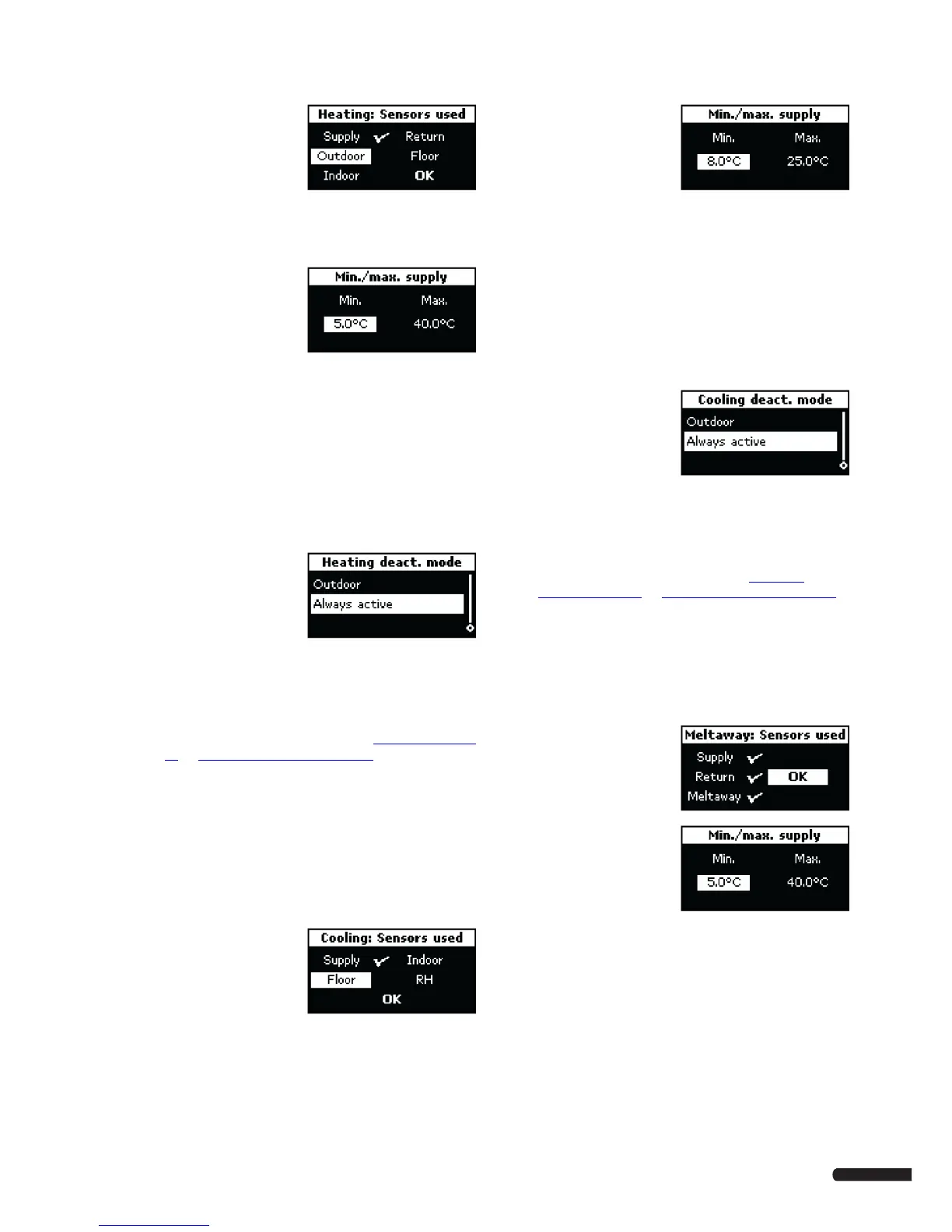

1. Use the navigation keys to
highlight a sensor to be
used.
2. Press OK to select the
sensor.
3. Press OK again to clear a
selection if necessary.
4. Navigate to the OK field and press OK to display the next
screen.
5. In the screen Min./max.
supply, set the required
minimum and maximum
temperatures in the
supply circuit.
Minimum supply temperature:
• Default setting: 5 °C
• Setting range: 5–35 °C
• Setting accuracy: 1 °C
Maximum supply temperature:
• Default setting: 40 °C
• Setting range: 5–70 °C
• Setting accuracy: 1 °C
6. Press OK to confirm the settings.
7. In the screen Heating
Deact. Mode, use the
navigation keys to
highlight the heating
deactivation mode to be
used.
The following modes are available:
• Outdoor
• Always active
8. Press OK to confirm the selection.
The next screen is displayed, see section 6.2.5
Cooling, page
17, or 6.2.9 Mixing valve mode, page 18.
6.2.5 Cooling
The screen Cooling: Sensors Used is displayed if either Cooling
or Heating + Cooling mode has been selected in the previous
screen.
The Supply sensor is selected by default and cannot be cleared.
One to four sensors can be selected, including the default
Supply sensor.
1. Use the navigation keys to
highlight a sensor to be
used.
RH = relative humidity
sensor.
2. Press OK to select a
sensor.
3. Press OK again to clear a selection if necessary.
4. Navigate to the OK field and press OK to display the next
screen.
5. In the screen Min./max.
supply, set the required
minimum and maximum
temperatures in the
supply circuit.
Minimum supply temperature:
• Default setting: 8 °C
• Setting range: 5–40 °C
• Setting accuracy: 1 °C
Maximum supply temperature:
• Default setting: 25 °C
• Setting range: 5–40 °C
• Setting accuracy: 1 °C
6. Press OK to confirm the settings.
7. In the screen Cooling
Deact. Mode, use the
navigation keys to
highlight the cooling
deactivation mode to be
used.
The following modes are available:
• Outdoor
• Always active
8. Press OK to confirm the selection.
The next screen is displayed, see section 6.2.7
H/C
switchover, page 18, or 6.2.9 Mixing valve mode, page 18.
6.2.6 Meltaway
The screen Meltaway: Sensors Used is displayed if Meltaway
mode has been selected in the previous screen.
All three sensors, Supply, Return, and Meltaway are selected
by default and cannot be cleared.
1. Press OK to confirm the
default selection of all
three sensors.
2. In the screen Min./max.
supply, set the required
minimum and maximum
temperatures in the
supply circuit.
Minimum supply temperature:
• Default setting: 5 °C
• Setting range: 5–35 °C
• Setting accuracy: 1 °C
Maximum supply temperature:
• Default setting: 40 °C
• Setting range: 5–70 °C
• Setting accuracy: 1 °C
3. Press OK to confirm the settings.
