CLIMATE CONTROLLER C-46 - INSTALLATION AND OPERATION MANUAL
6
3 Climate Controller C-46 overview
This section is a brief description of the Climate Controller C-46
as a system component and its operating modes.
3.1 Description
The Climate Controller C-46 is a primary controller for heating,
cooling and meltaway systems.
Examples of applications are:
• Underfloor heating and cooling systems
• Wall heating and cooling systems
• Ceiling cooling and heating systems
• Radiator heating system
• Meltaway system
Its main function is to regulate supply water temperature by
controlling a mixing valve actuator.
Other functions include:
• Circulation pump control
• Output for heating/cooling switchover relay
• Dew point control
3.1.1 Heating and cooling system example

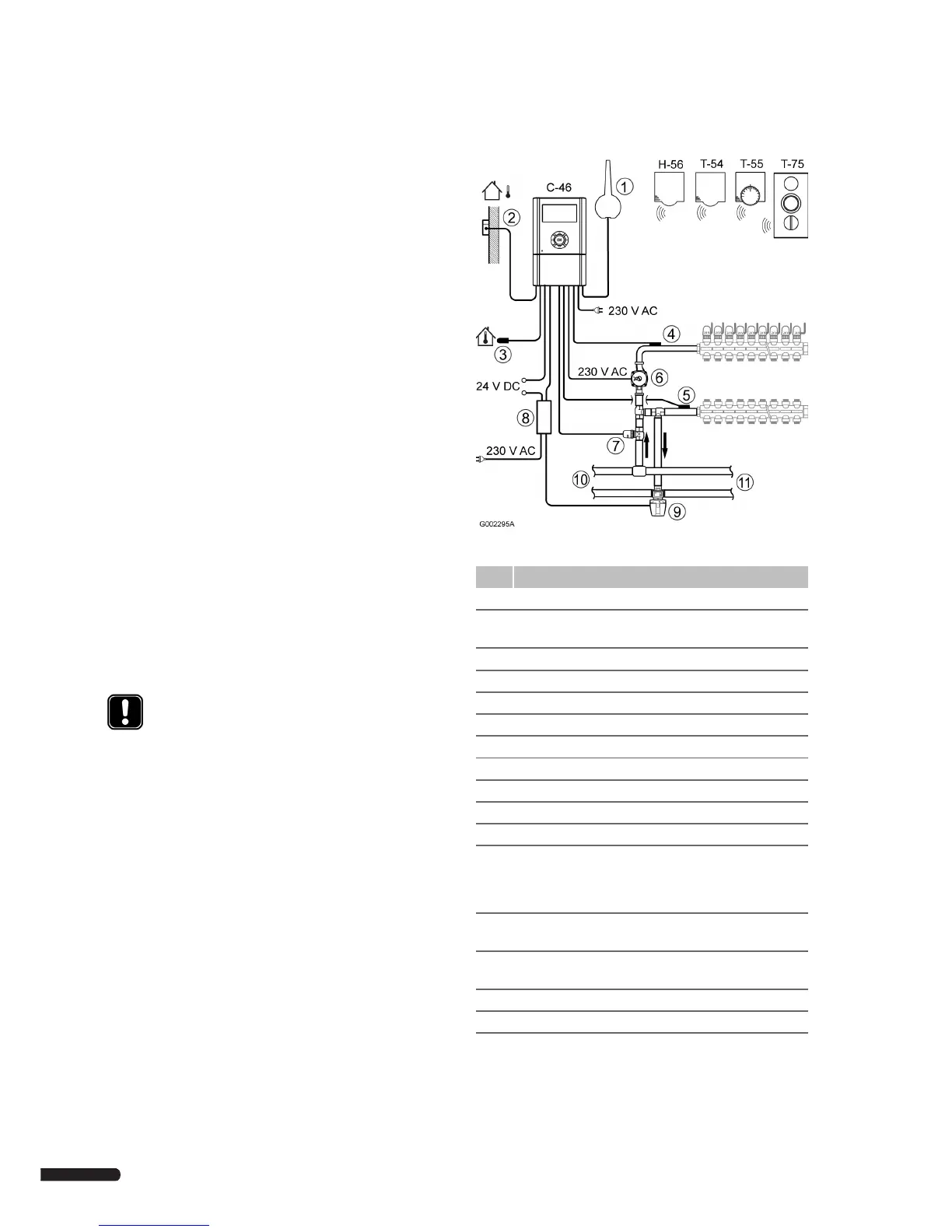

The figure below shows how the Climate Controller C-46 can be
set up in a climate system. The figure also shows several system
components that can be connected to the Climate Controller
C-46. The system can use either wired sensors or radio
thermostats.
The figure is applicable for heating, cooling and heating/cooling
switchover systems. Some of the components are intended for
use with specific system modes as indicated in the table below.
NOTE!
Only Uponor sensors and thermostats should be used
in combination with the Climate Controller C-46.
Item Description
C-46 Climate Controller C-46
H-56 Relative Humidity Sensor H-56
(only used in cooling systems with dew point control)
T-54 Thermostat Public T-54 Radio
T-55 Thermostat T-54 Radio
T-75 Thermostat T-75 Radio
1 Radio antenna
2 Outdoor sensor
3 Indoor sensor
4 Supply sensor
5 Return sensor
6 Circulation pump
7 Mixing valve actuator
• Thermal, 24 V DC, 3 W, NC (see illustration above)
• Motorized, 0–10 V DC, externally powered
8 H/C switchover relay box
(only used in Heating/cooling switchover systems)
9 Diverting valve
(only used in Heating/cooling switchover systems)
10 Pipes to heating source
11 Pipes to cooling source
