OPERATION
Installation
27

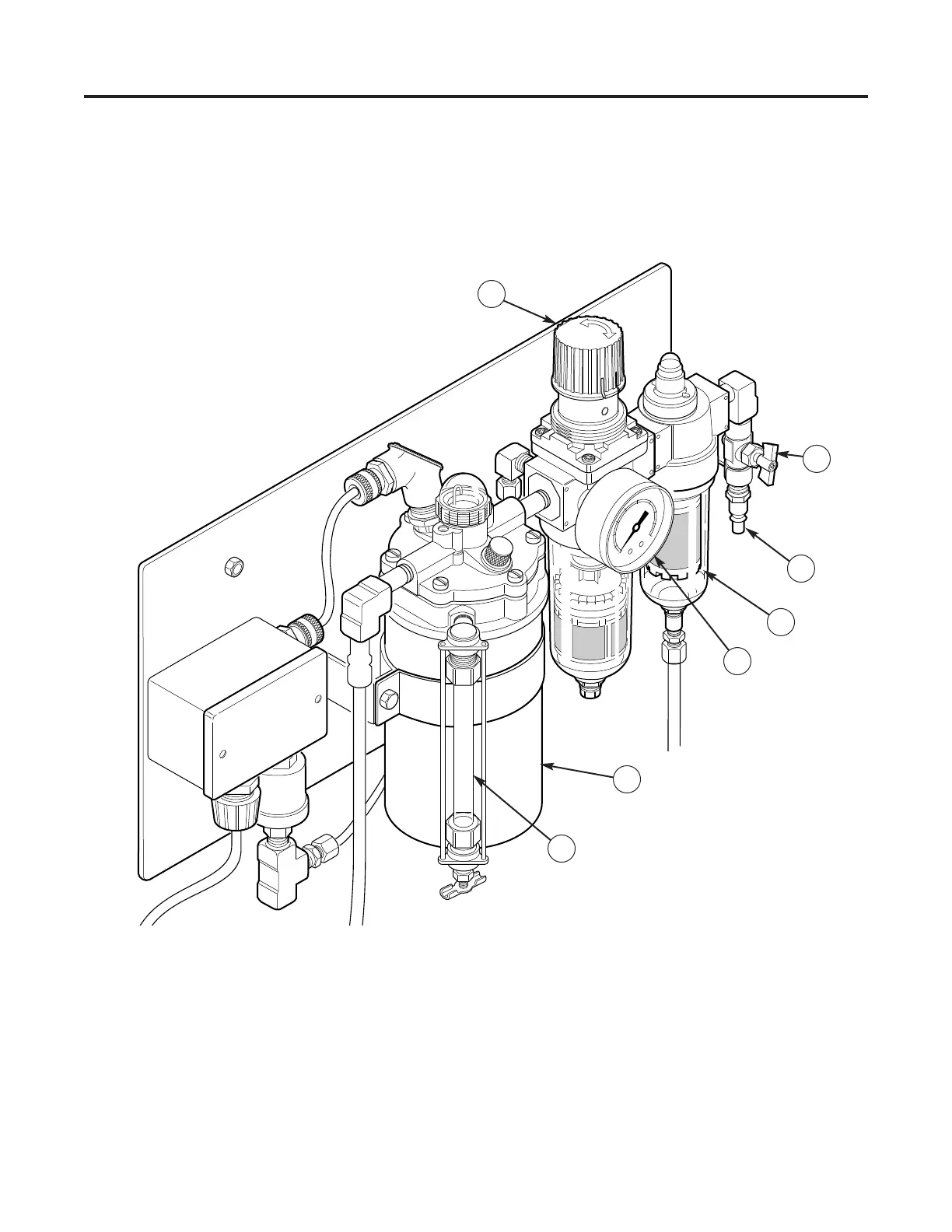

Figure 23 — Oil mist lubricator assembly. (1) Air Pressure Adjustment Knob, (2) Air Shut-off Valve, (3) Air Inlet, (4)
Coalescing Filter, (5) Pressure Gauge, (6) Oil Mist Lubricator, (7) Oil Level Sight Gauge
1
2
3
4
5
6
7
