Urschel COMITROL 1700 - Cutting Heads (Urschalloy)

PARTS
Cutting Heads (Urschalloy)
54
CUTTING
HEAD
HEIGHT
TYPE
OF
HEAD
THICKNESS OF
HORIZONTAL
SEPARATORS
OPENING
BETWEEN
HORIZONTAL
SEPARATORS
INDICATES
URSCHALLOY
(Cast)
3"
3"
CUTTING
HEAD
HEIGHT
INDICATES NO
HORIZONTAL
SEPARATORS
OPENING
BETWEEN
HORIZONTAL
SEPARATORS
INDICATES
URSCHALLOY
(Cast)
*NUMBER
OF
COLUMNS
.030"
.240"

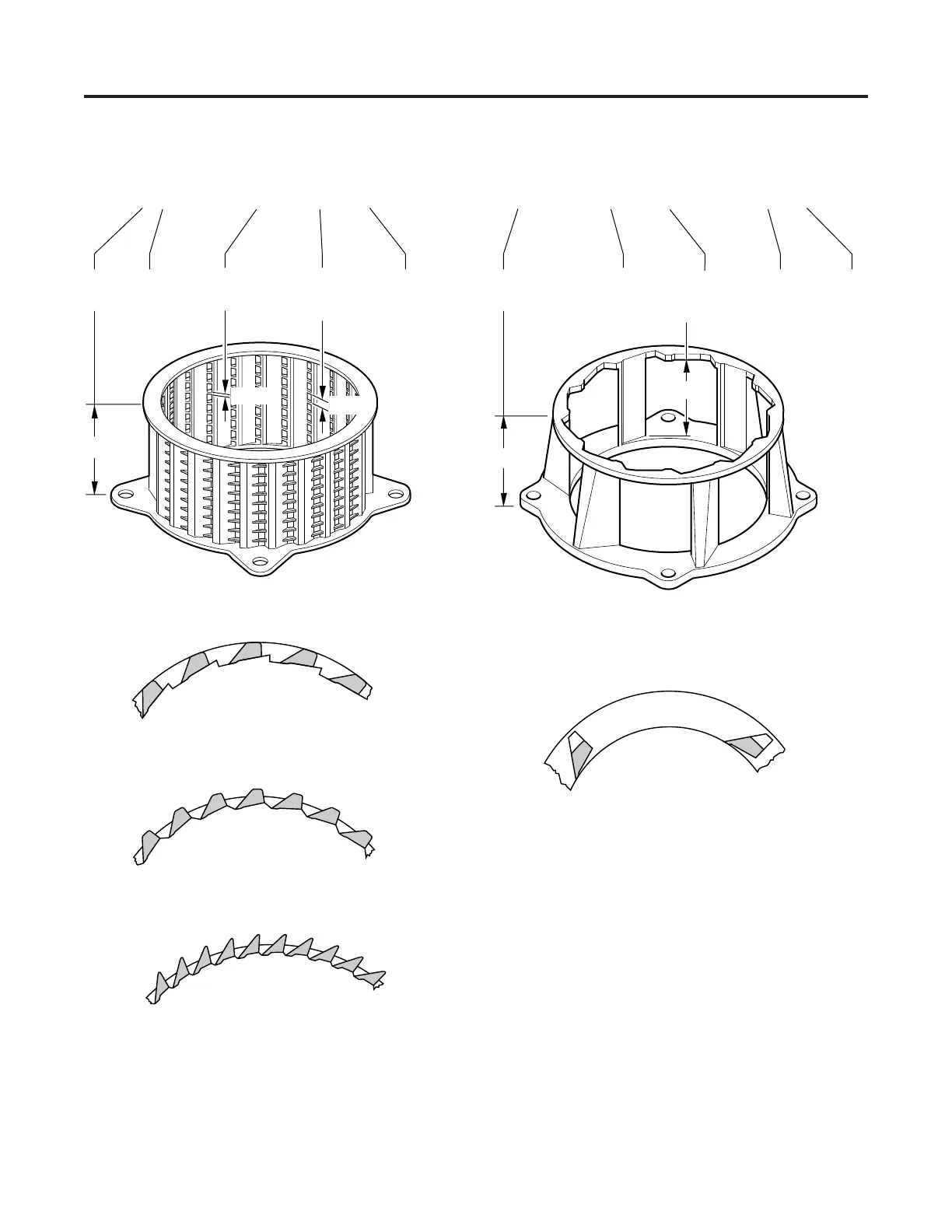

STANDARD CUTTING HEAD
DESCRIPTION
SPECIAL COLUMN CUTTING HEAD
DESCRIPTION
3K — 030 240 U 3 — 000 2900 — 6 U
* Description number with "P" after cutting head height
indicates 12 columns (no column designation).
TYPE "A"
18 Column
TYPE "K"
24 Column
TYPE "M"
48 Column
HEAVY DUTY
6 & 4 Column
2.900"
NOTE: See pages 20–21 for description of cutting head types. Use 5 digit part number when ordering. Consult
Urschel Laboratories, Inc. for specific cutting head applications.
