ELECTRICAL POWER
The electrical installation must be performed
by a
qualified electrician
in accordance with all

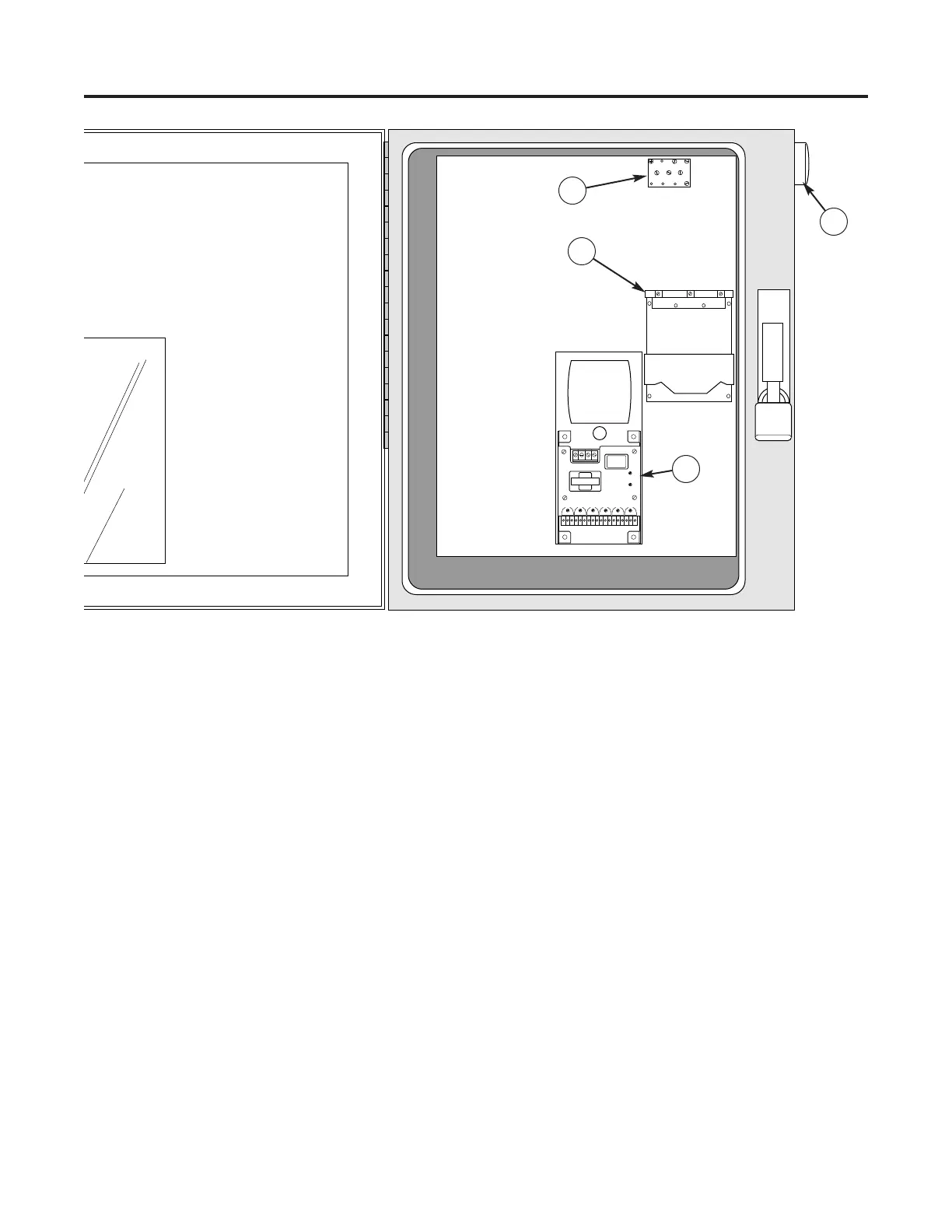

applicable electrical codes. Refer to Figure 22,
and proceed as follows:
1. Connect the outside power source to
the terminals on top of the circuit breaker in
the starter enclosure. Voltage label on the
front of the starter enclosure specifies
proper voltage for this machine. To main-
tain the watertight feature of the starter
enclosure, use “liquid tight” or rigid conduit
and appropriate fittings to mate with con-
duit hub on the side of the starter enclo-
sure.
NOTE:
If voltage is not at least 95% of
specified voltage, the motor may become
overloaded during operation.
2. Connect grounding conductor (green or
green and yellow striped wire) to the
earthing bar located on back panel inside
the starter enclosure.
3. Connect the wiring so the impeller turns
clockwise when viewed through the feed
opening.
4. Securely fasten screws on the starter
enclosure door when finished with installa-
tion.
