OPENING OR REMOVING
WARNING: Always turn the power
disconnect/ lockout switch to “O” (OFF)
and lock out power source before
opening or removing any cover or
guard . After machine has come to a
complete stop, press the “I” (START)
button to verify machine will not start.
Do not attempt to operate this machine
if any cover or guard is opened or
removed. Operating the machine with
covers or guards opened or removed
can result in serious injury such as
amputation!
Open or remove the following covers
and guards to service the various areas of
the machine (Figure 19, page 33).
Front cover with feed hopper:
remove to service cutting parts.
Cutting enclosure: generally does not
require removal.
INSPECTION
Inspect all covers and guards for
damage. Bent or twisted parts will not fit
on the machine properly and may prevent
safety switches from lining up. Straighten
parts or replace if necessary.
INSTALLATION
Replace all covers and guards in their
proper locations; replace fasteners and
tighten securely. Covers and guards
equipped with safety switches must have
actuators aligned and within 1/16" (1.6 mm)
of sensors to complete safety switch circuit
(Figure 18).
MAINTENANCE
Covers and Guards
32
1
2

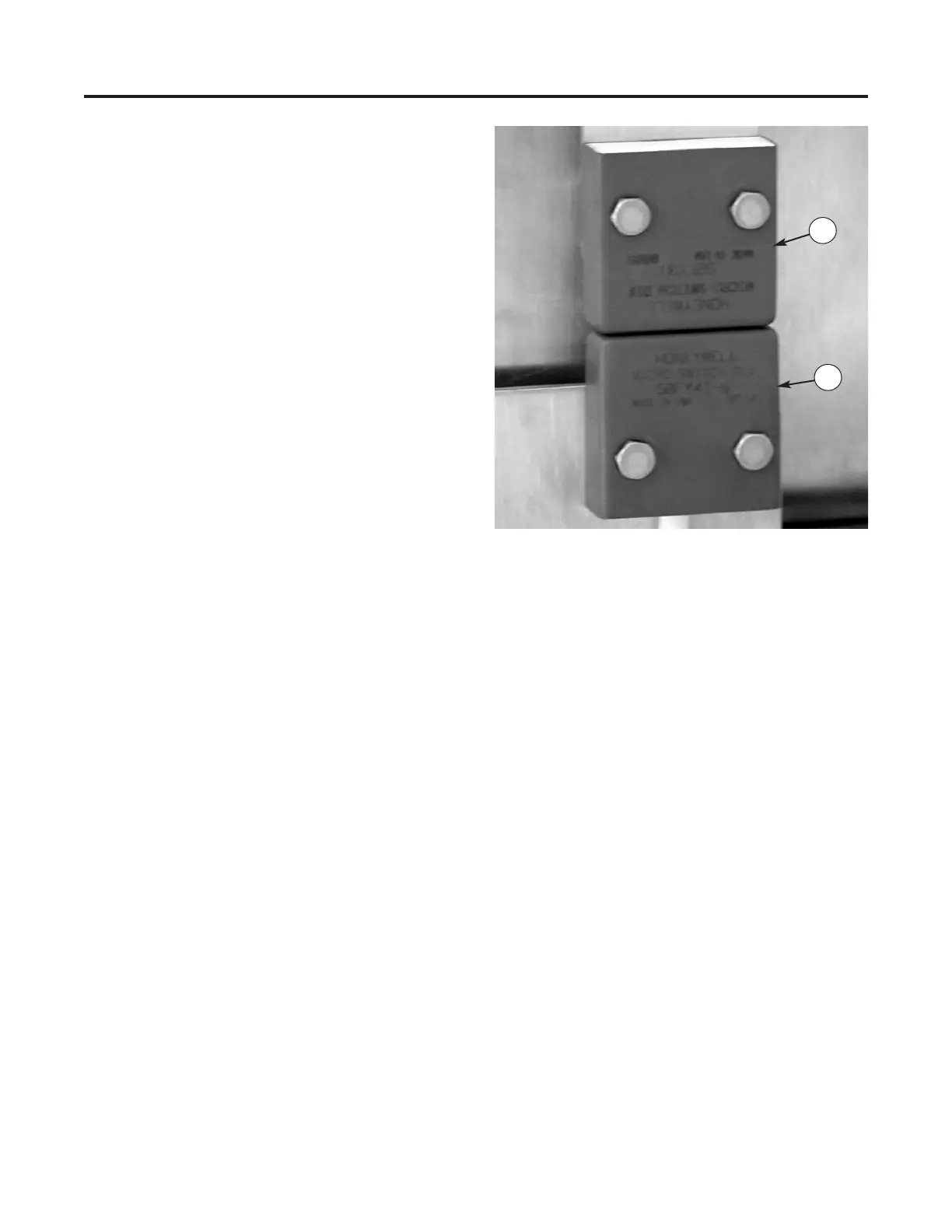

Figure 18 — Safety switch sensors and actuators
must be aligned and within 1/16" (1.6 mm).
(1) Sensor, (2) Actuator
