Safety switches: Check sensors, actua-
tors and cords for damage.
Switches should
be replaced if any defect or damage is detect-
ed.
Check switch alignment. Actuator must be
within 1/16" (1.6 mm) of sensor to complete
safety switch circuit (Figure 6).
MAINTENANCE
Electrical Assembly
A5

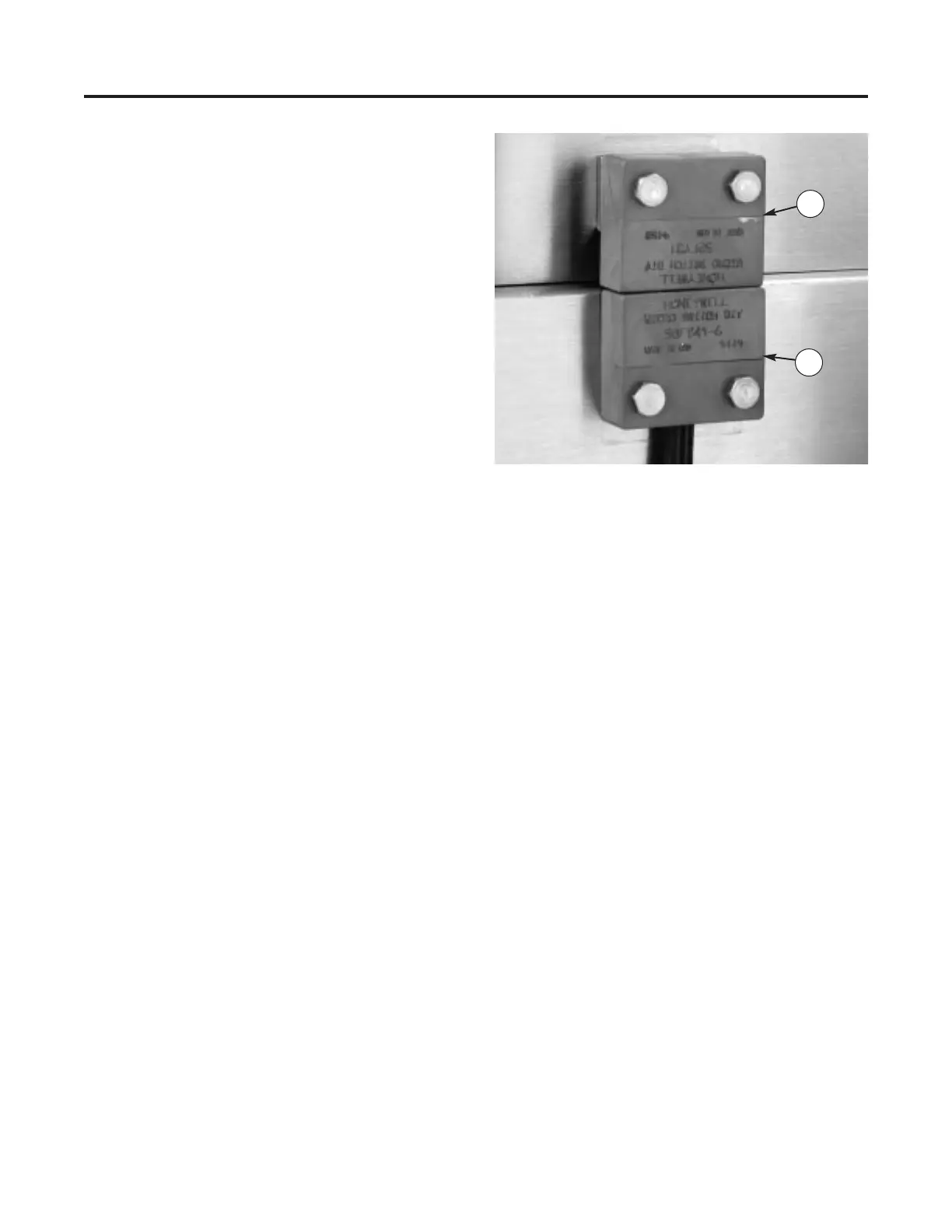

Figure 6 — Safety switch sensors and actuators must be
aligned and within 1/16” (1.6 mm). (1) Sensor, (2) Actu-
ator.
