The connections between the separate plug-in boards are realized by means of
a motherboard and multiple board connectors.
5.3.6 Processor Board DMC50B

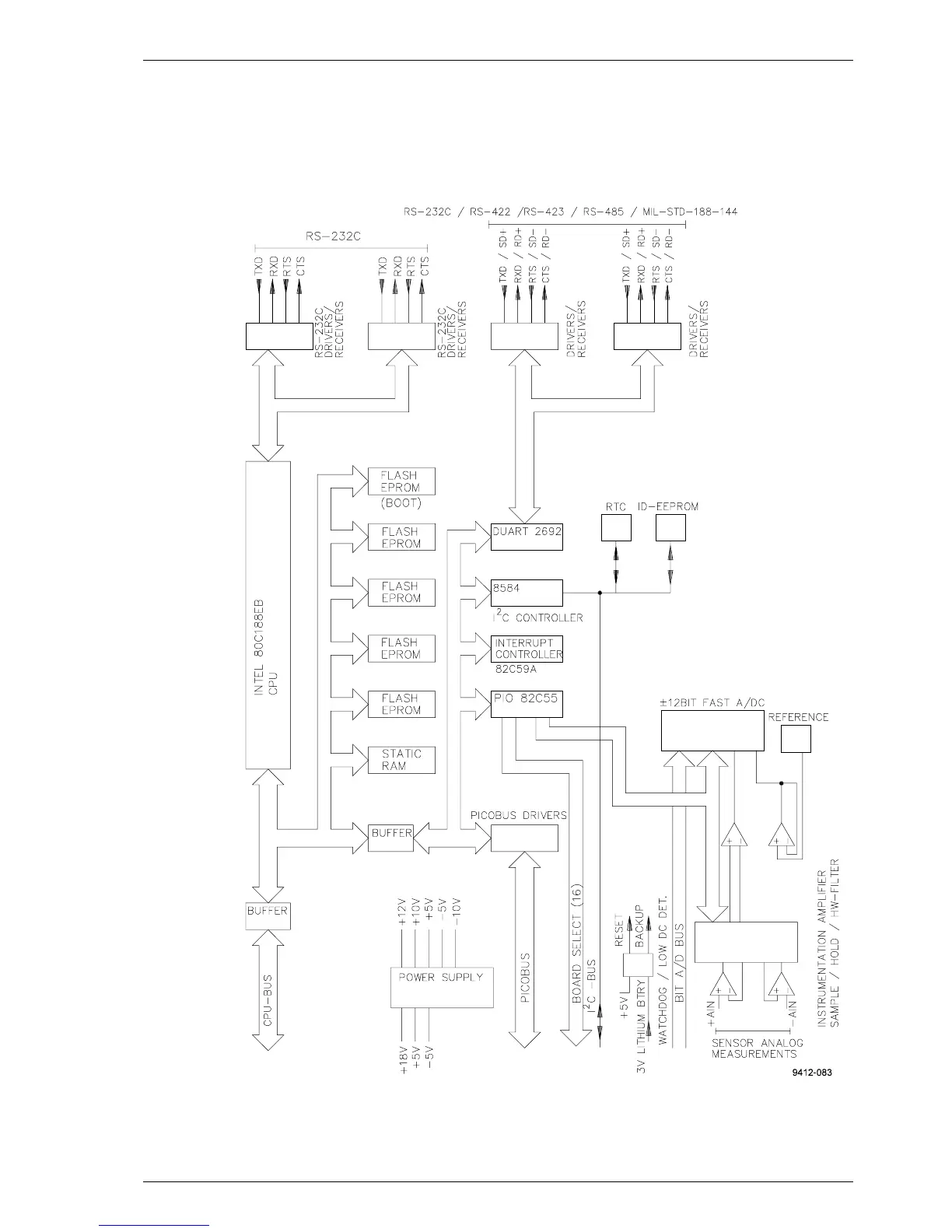

Figure 5-10 DMC50B Block Diagram
