actual measured phase. The coherency achievable is better than 0.1
degrees by this technique.
- Large Signal Linearization—When an IF signal saturates, there is
still considerable information in the signal since only the peaks are
clipped. The proprietary large signal linearization algorithm used in
the RVP900 provides an extra 3 dB to 4 dB of dynamic range by
accounting for the effects of saturation.
The RVP900 provides the same comprehensive configuration and test
utilities as in the RVP8. These utilities can be run either locally or remotely
over the network.
2.6.1.1 Digital IF Band Pass Design Tool

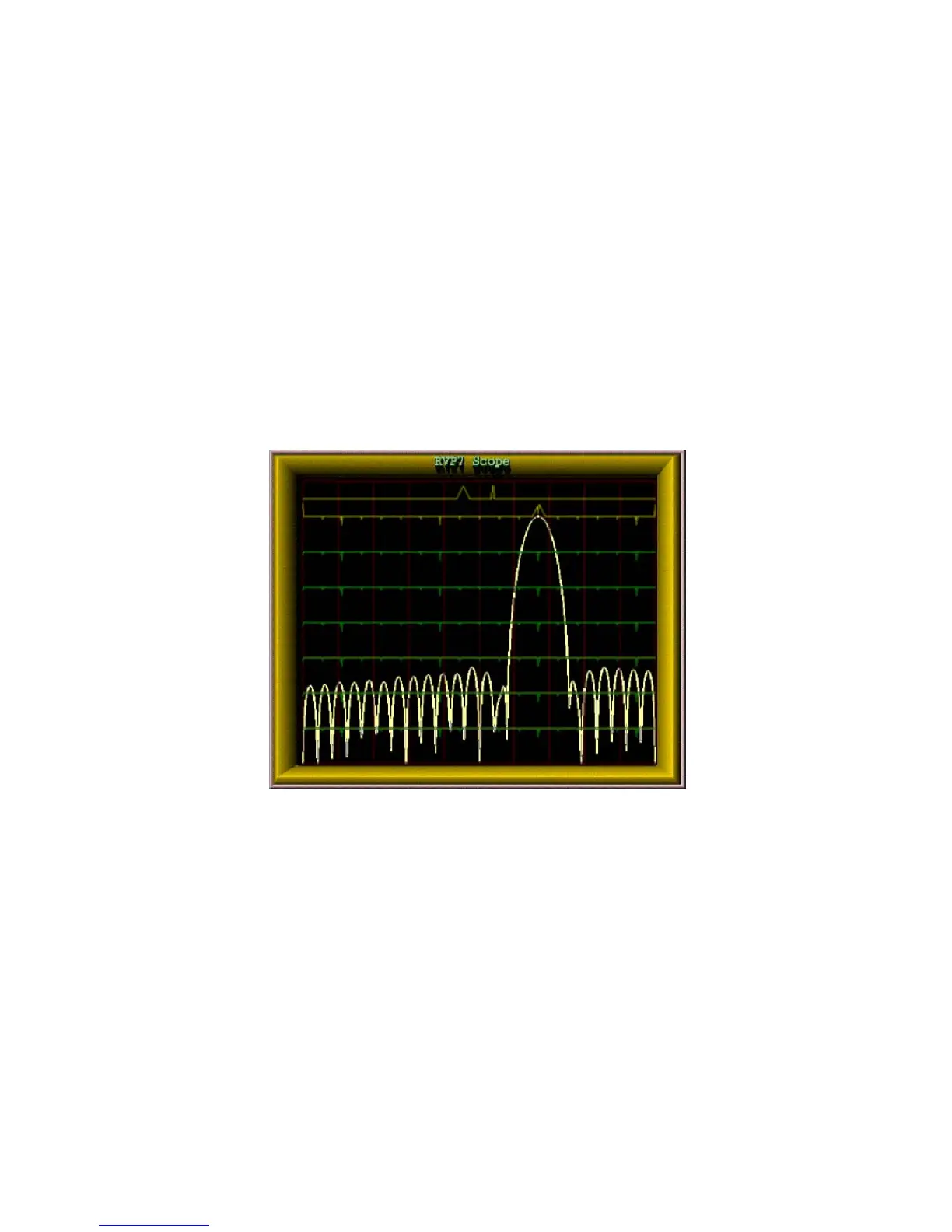

0916-010
Figure 7 Digital IF Band Pass Design Tool
The built-in filter design tool makes it easy for anyone to design the
optimal IF filter to match each pulse width and application. Simply specify
the impulse response and pass band and the filter appears. The user
interface makes it easy to widen/ narrow the filter with simple keyboard
commands. There is even a command to automatically search for an
optimal filter.
This display can also show the actual spectrum of the transmit burst pulse
for quality control and comparison with the filter.
