6. Position air cleaner assembly (I) on air cleaner top
bracket with the duckbill air valve pointing down.
7. Engage hook on air cleaner strap (J) with lip on air
cleaner top bracket.
8. Install 2 fasteners (K) to secure air cleaner strap to air
cleaner top bracket. Tighten to 90 lb-in (10.2 Nm).
9. If detached, install hose onto air outlet elbow with the
paint mark on top. Install band clamp at end of hose and
tighten to 35 lb-in (4 Nm).
10. Loosely install band clamp (L) at opposite end of hose,
and install hose onto air intake elbow. Tighten band
clamp to 18 lb-in (2 Nm).

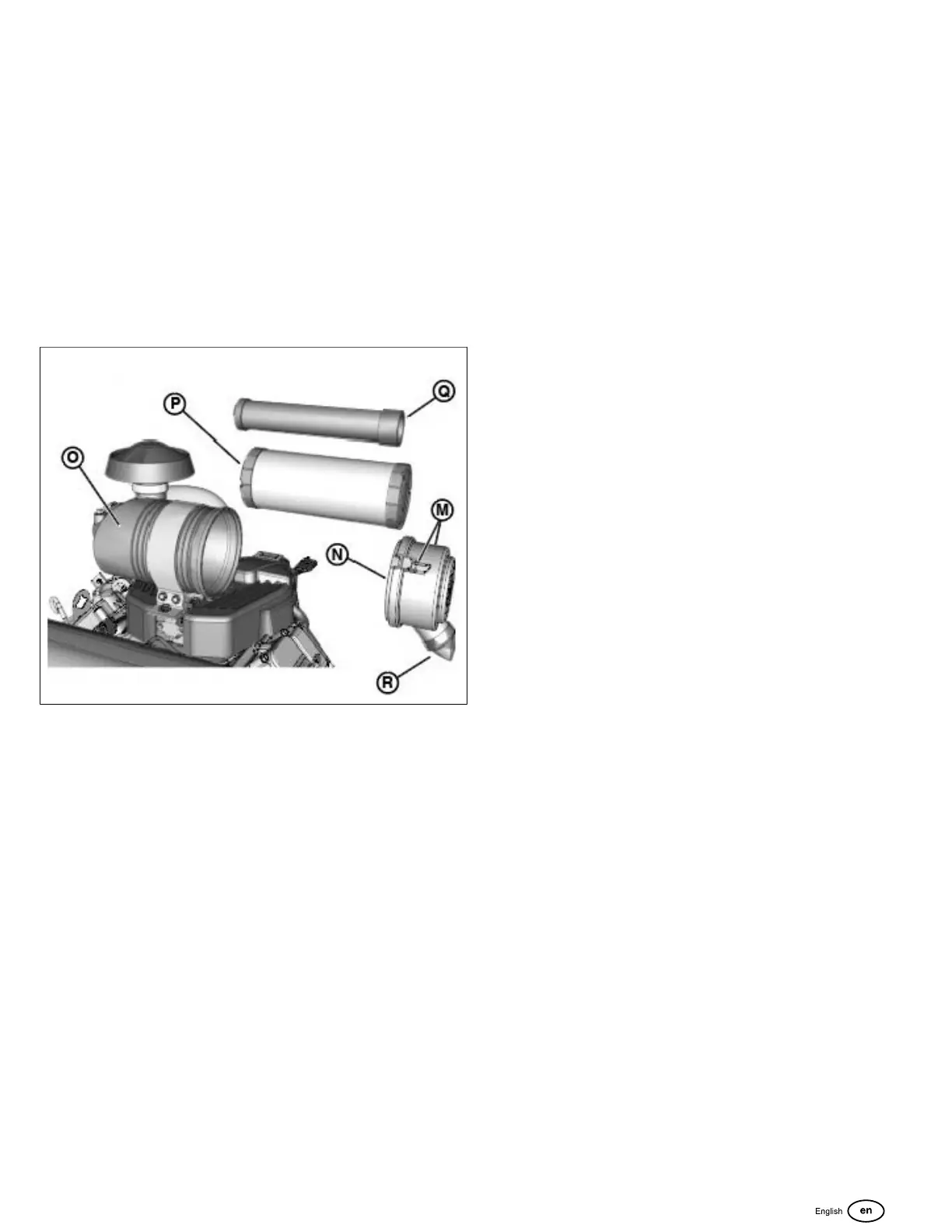

11. Disengage 2 retaining clips (M, Figure 220) to release air
cleaner cover (N) from air cleaner base(O).
220
12. Remove air filter (P) from air cleaner base.
13. Remove safety filter (Q) from air cleaner base, if
equipped.
14. Gently tap air filter on a hard surface to remove dust, dirt
and debris. Carefully brush and/or vacuum air filter as
necessary.
NOTE: Use of pressurized air or solvents will damage air
filter.
15. Carefully inspect air filter, and replace if it cannot be
adequately cleaned or if any damage is observed.
16. Inspect sealin air cleaner base for cuts, tears, holes, or
general deterioration. Replace as necessary.
17. Use a soft bristle brush and a portable hand vacuum to
remove all dust and dirt from air cleaner cover and air
cleaner base.
NOTE: Exercise care to keep dust and dirt out of hose
to air intake elbow. Inadequate precautions can result in
engine damage.
18. If equipped, install safety filter into air cleaner base.
Orient the safety filter so that the open end installs into
the base.
NOTE: Replace the safety filter with every third air filter
replacement.
19. Install air filter into air cleaner base.
20. Install air cleaner cover onto air cleaner base and
engage two retaining clips to secure.
21. Inspect duckbill air valve(R)on air inlet port of air
cleaner cover. Look for cuts, tears, holes, or general
deterioration. Replace duckbill air valve if damaged or
missing.
NOTE: Engine operation without the duckbill air valve
can reduce filter efficiency by as much as 50 percent.
157
