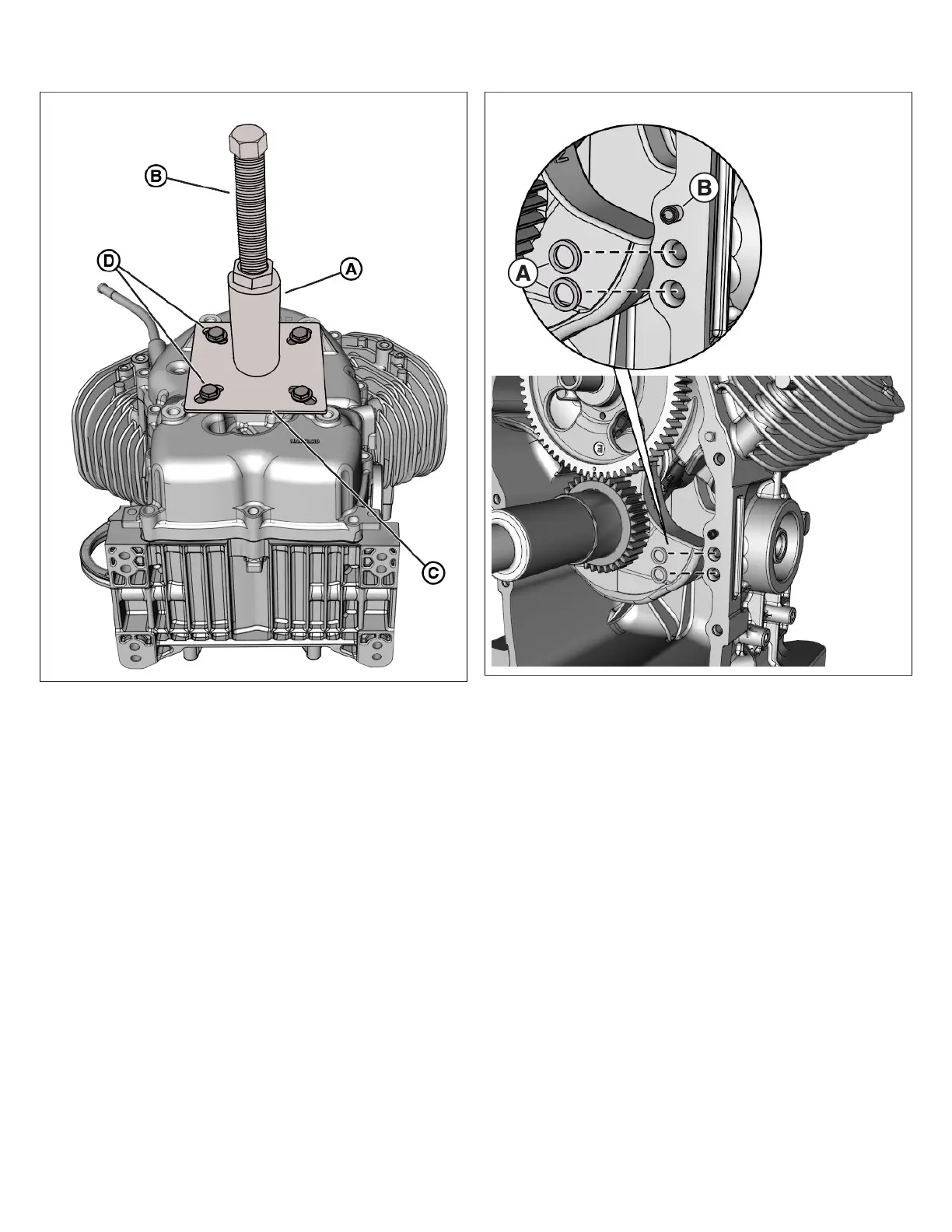

3. Place tube A, Figure 102) of puller over crankshaft
seating end of forcing screw (B) at end of crankshaft.
102
4. Back up forcing screw as necessary, so that base (C)
seats flat against crankcase cover.
5. Rotate base to align slots with 4 threaded holes in
crankcase cover.
6. Install 4 screws with flat washers (D) to fasten base to
cover, and alternately tighten in a crosswise pattern until
snug.
7. Rotate forcing screw in a clockwise direction until cover
is free.Remove cover from engine block and set aside.
8. Remove screws to release puller tool from cover.
9. Remove the2 o-rings (A, Figure 103) from crankcase
flange. Discard the old o-rings.
103
10. Remove locating pins (B) from crankcase flange and set
aside.
86 vanguardpower.com
