112

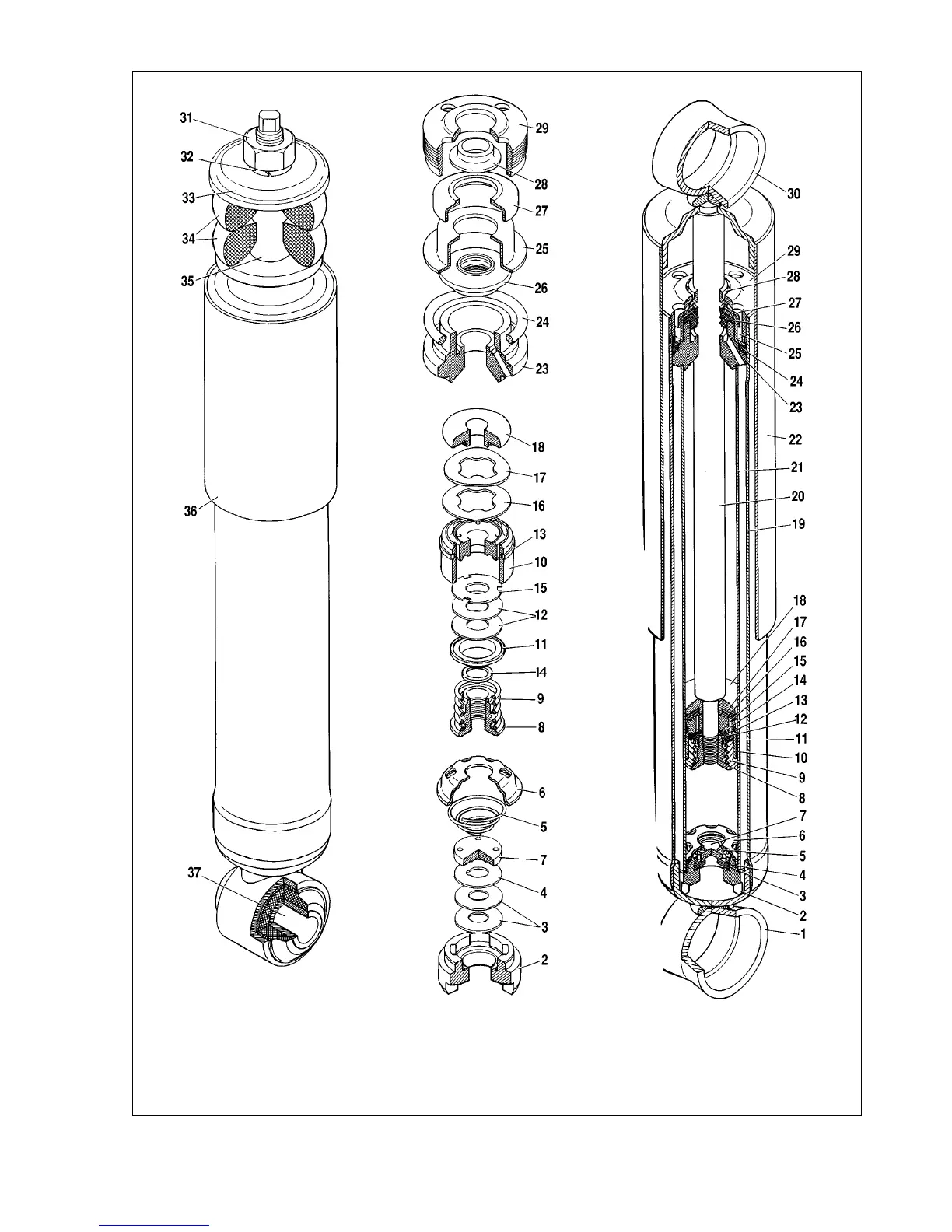

Fig. 4-18. Front and rear suspension shock absorbers:
1 - lower eye; 2 - compression valve body; 3 - compression valve discs; 4 - compression valve throttling disc; 5 - compression valve spring; 6 - compression valve holder;
7 - compression valve cap; 8 - recoil valve nut; 9 - recoil valve spring; 10 - shock absorber piston; 11 - recoil valve cap; 12 - recoil valve discs; 13 - piston ring;
14 - recoil valve nut washer; 15 - recoil valve throttling disc; 16 - by-pass valve cap; 17 - by-pass valve spring; 18 - restricting plate; 19 - tank; 20 - rod; 21 - cylinder;
22 - housing; 23 - rod guide sleeve; 24 - tank sealing ring; 25 - oil seal retainer; 26 - rod oil seal; 27 - gasket; 28 - rod guard ring; 29 - tank nut; 30 - shock absorber eye,
upper; 31 - front suspension shock absorber securing nut for top end; 32 - spring washer; 33 -washer; 34 - pad; 35 - distance sleeve; 36 - shock absorber casing;
37 - silent block
