115

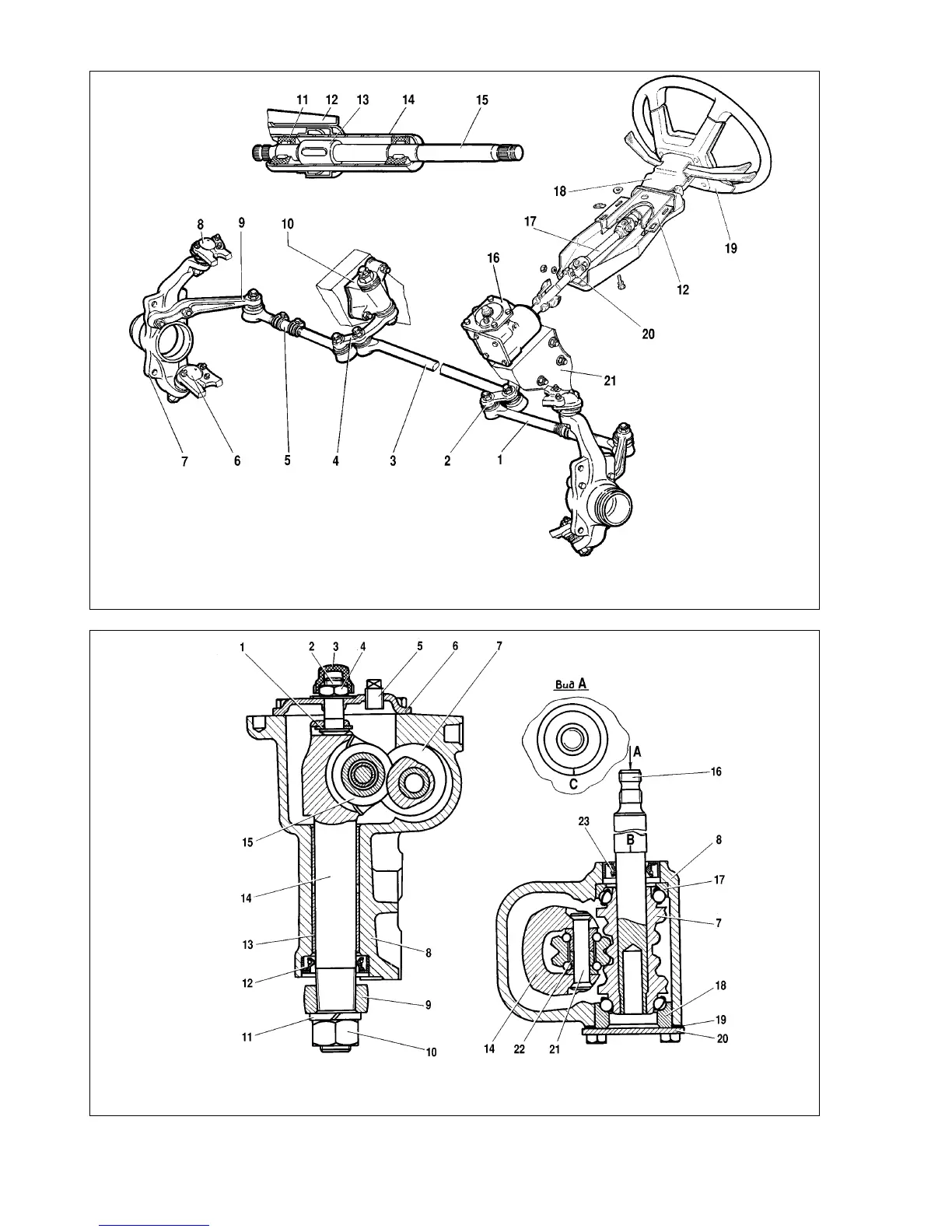

Fig. 5-2. Steering mechanism, sectional view:
1 - adjuster screw plate; 2 - adjuster screw; 3 - cap; 4 - screw nut; 5 - oil filler plug; 6 - cover; 7 - worm; 8 - housing; 9 - drop arm; 10 - securing nut; 11 - spring washer;
12 - oil seal; 13 - bronze bush; 14 - drop arm shaft; 15 - drop arm shaft roller; 16 - worm shaft; 17 - upper ball bearing; 18 - lower ball bearing; 19 - shims; 20 - worm bear-
ing cover, lower; 21 - roller shaft; 22 - ball bearing; 23 - worm shaft oil seal; B, C - marks
Fig. 5-1. Steering:
1 - track rod; 2 - drop arm; 3 - relay rod; 4 - idler arm; 5 - adjuster pin; 6 - lower balljoint; 7 - right steering knuckle; 8 - upper balljoint; 9 - right steering knuckle arm;
10 - idler bracket; 11 - upper shaft bearing; 12 - steering wheel mounting bracket; 13 - sleeve, ignition switch anti-theft device; 14 - steering wheel mounting bracket pipe;
15 - upper shaft; 16 - steering box; 17 - middle shaft; 18 - column shroud; 19 - steering wheel; 20 - pinch bolt; 21 - underbody chassis arm
