Features VAZ-21213 VAZ-21214 VAZ-21214-20 VAZ-21215
Steering
Steering mechanism globoidal worm, double-crest roller, steering ratio 16.4
Steering linkage three links, relay rod and two steering rods,
drop arm, idler arm and swing arms
Braking system
Service braking system:
• front brakes disc-type, floating caliper, automatic disc-to-pad clearance adjustment
• rear brakes drum-type, self-applying shoes and automatic shoe-to-drum clearance adjustment
• brake operation line foot-type, hydraulic, dual circuit, split diagonally, vacuum servo unit and pressure regulator
Handbrake cable-operated on rear wheels
Electrical system
Wiring diagram single-wire, negative earth type
Voltage, volts 12
Battery 6ëí-55Ä, 55 ampere-hour
Alternator AC, integral diode plate and electronic voltage regulator
Starter motor pre-engaged, solenoid switch and overrun clutch
Body
Type all-steel unitary construction, monocoque, three-door, double-space
6

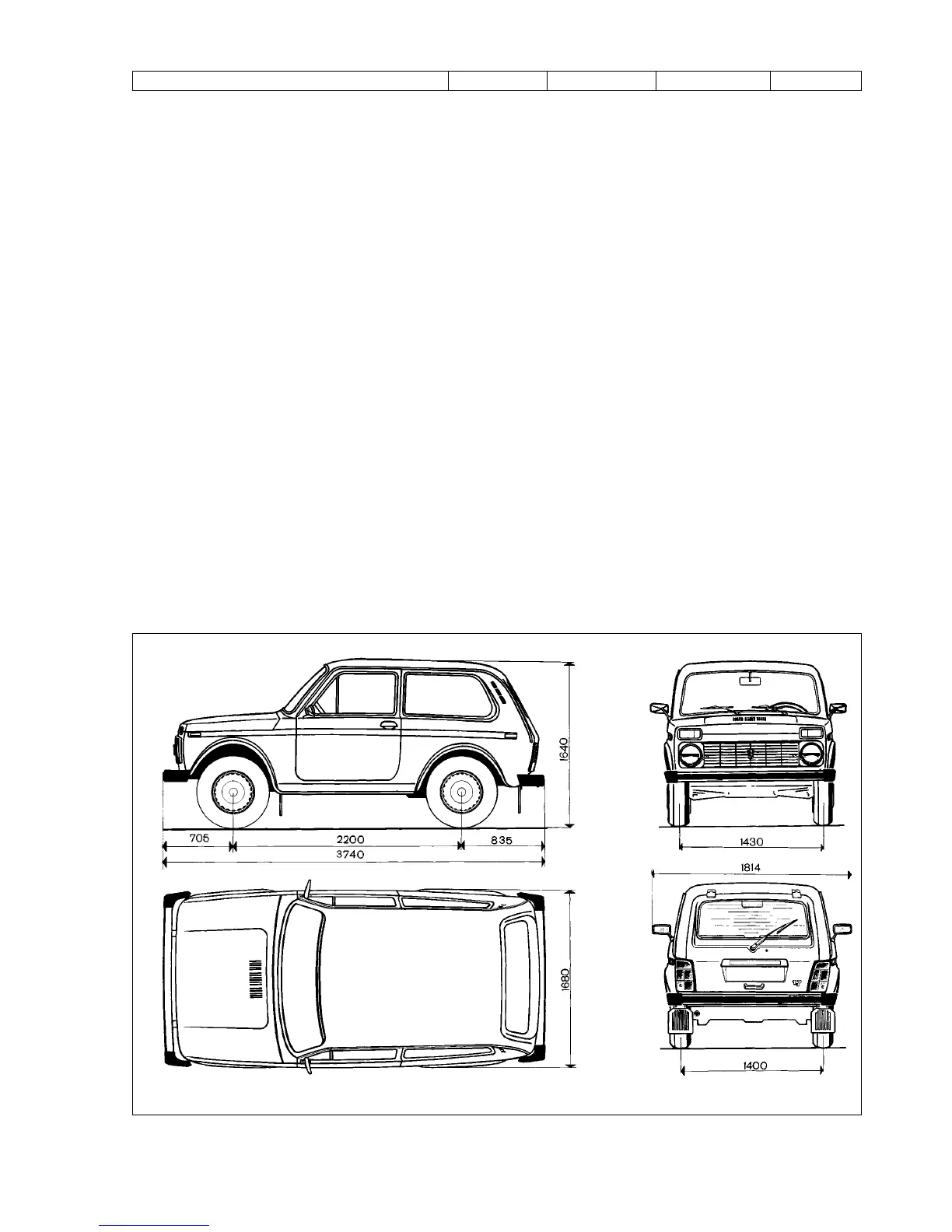

Fig.1-1. Basic overall dimensions of VAZ-21213 vehicle
