Vaz 21213 - Transfer Box Operating System

76

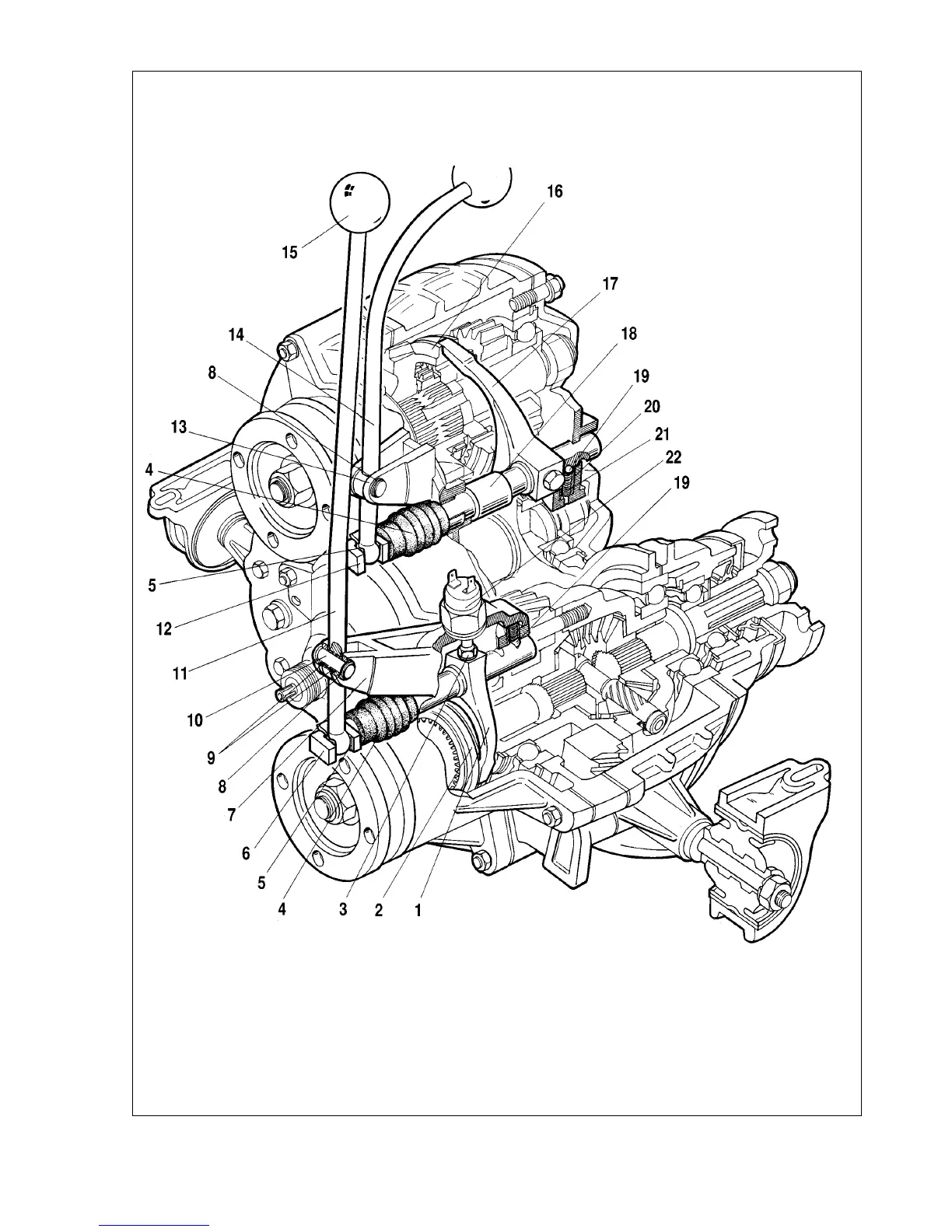

Fig. 3-36. Transfer box operating system:
1 - differential locking clutch yoke; 2 - differential locking clutch; 3 - yoke stop bolt; 4 - boot; 5 - lever spring; 6 - differential locking fork rod; 7 - front axle case cover;
8 - lock washer; 9 - lever shaft bush; 10 - lever shaft; 11 - differential locking lever; 12 - gear shift fork rod; 13 - gearshift lever bracket; 14 - gear shift lever; 15 - knob;
16 - gear shift clutch; 17 - gear shift clutch fork; 18 - distance sleeve; 19 - detent ball; 20 - detent spring bush; 21 - detent spring; 22 - differential lock warning light switch
