Vaz 21213 - Wiring Diagram for Direction Indicators and Hazard Flashers; Wiring Diagram for Exterior Lighting; Wiring Diagram for Headlight and Foglight

156

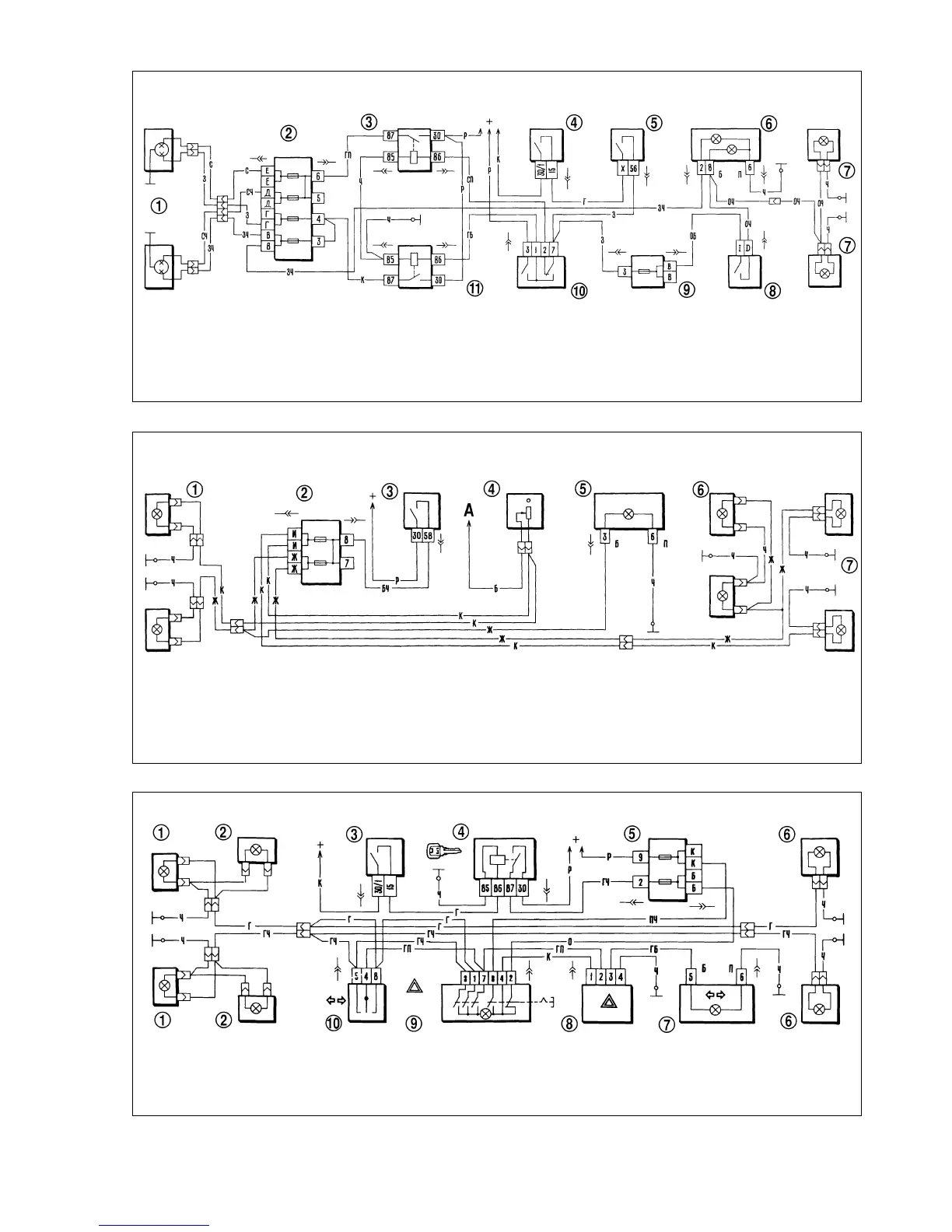

Fig.7-29. Wiring diagram for exterior lighting:
1 - sidelights in headlights; 2 - fusebox; 3 - exterior light switch; 4 - instrument illumination switch; 5 - exterior light warning lamp in instrument cluster; 6 - number plate
lamp; 7 - sidelights in rear light units; Ä - to illumination lamps for instruments, switches and heater controls
Fig.7-28. Wiring diagram for headlight and foglight:
1 - headlights; 2 - main fusebox; 3 - low beam relay; 4 - ignition switch; 5 - exterior light switch; 6 - warning lights: high beam (left) and fog lamp (right); 7 - rear fog light;
8 - fog light switch; 9 - complementary fusebox; 10 - headlight switch; 11 - high beam relay
Fig.7-30. Wiring diagram for direction indicators and hazard flashers :
1 - direction indicators in headlights; 2 - side repeat indicators; 3 - ignition switch; 4 - ignition relay; 5 - fusebox; 6 - direction indicators in rear light cluster; 7 - direction indi-
cators warning light in instrument cluster; 8 - indicators flasher relay; 9 - hazard warning flasher switch; 10 - direction indicators switch
