176

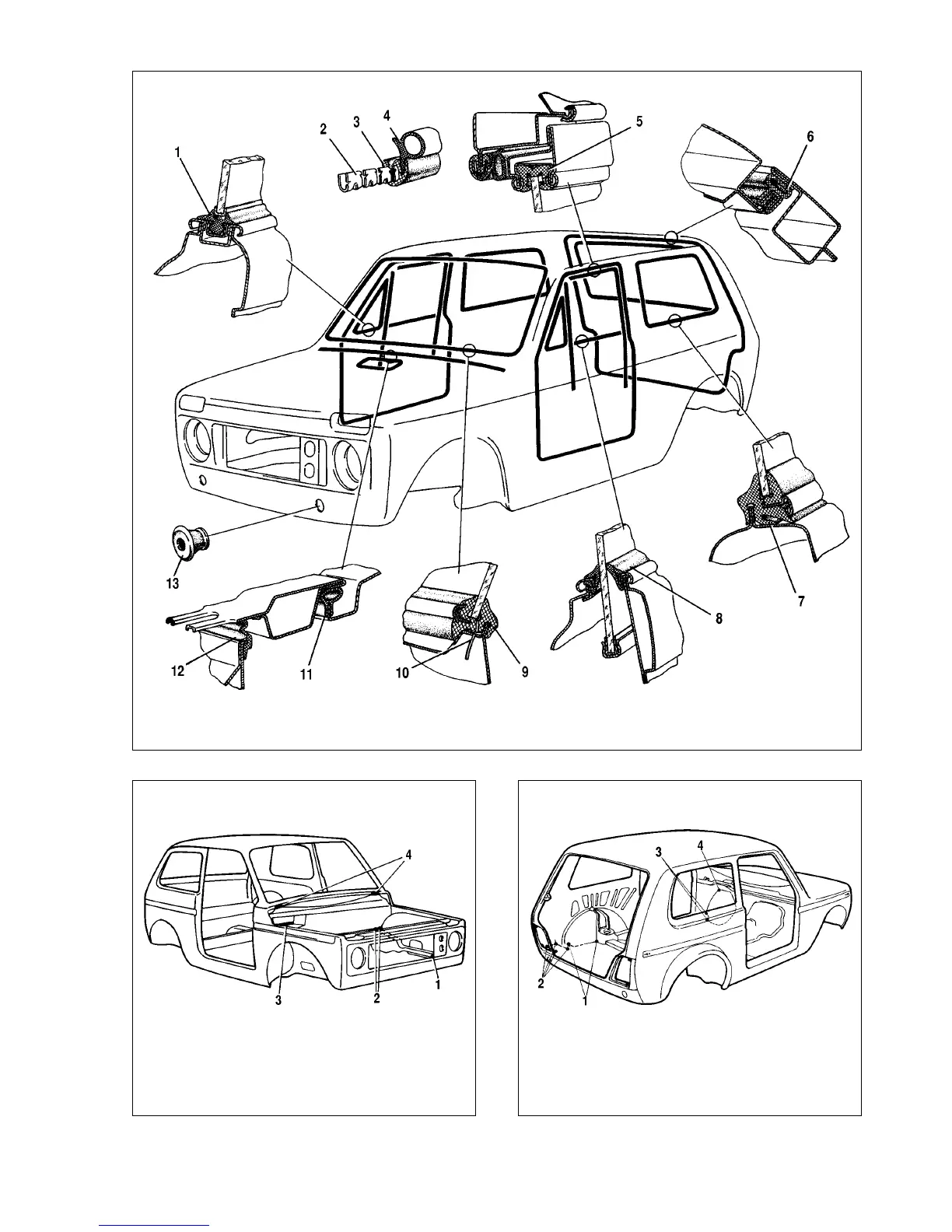

Fig.8-9. Rubber seals:
1 - of swivel glass; 2 - front door seal frame; 3 - seal molding; 4 - front door seal; 5 - of sliding glass; 6 - of tailgate aperture; 7 - of side window; 8 - lower seal of sliding win-
dow; 9 - of windscreen; 10 - drain pipe; 11 - bonnet seal; 12 - of air intake; 13 - of front bumper connection
Fig.8-10. Locations for 51-É-7-type sealant application (front body view):
1 - front chassis arm connection with bottom radiator support; 2 - front chassis
arm-to-bulkhead joints; 3 - battery tray -to-bulkhead connection (from passen-
ger compartment side); 4 - bulkhead-to-front cover abutting joints (from engine
compartment side)
Fig.8-11. Locations for 51-É-7-type sealant application (rear body view):
1 - rear floor-to-rear wheel arch joints; 2 - slots in angular joints of rear floor
extensions with rear wheel arches, bodysides and rear end cross-member; 3 -
bulkhead-to-floor sill angular joints; 4 - bulkhead-to-front bodyside pillar panel
corner
